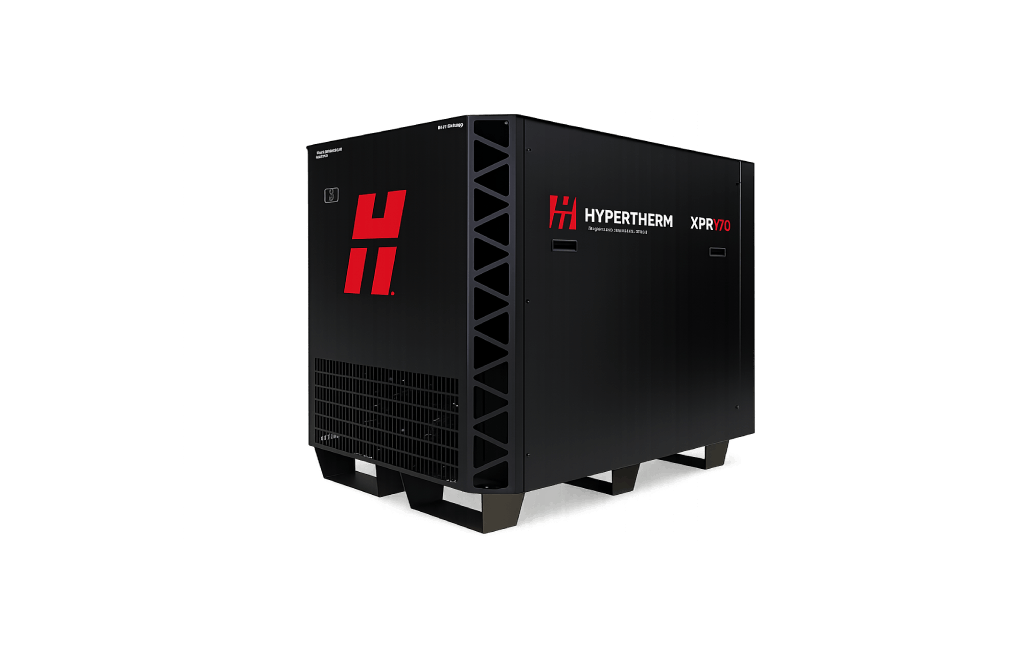

XPR170®: X-Definition® from very thin up to mid-range thicknesses.

With unmatched X-Definition cut quality on mild steel, stainless steel, and aluminum, XPR170 increases cut speed, dramatically improves productivity, and slashes operating costs. New ease-of-use features and engineered system optimization make XPR^® easier to run with minimal operator intervention, while also ensuring optimal performance and unmatched reliability.

System information

Benefits

Industry-leading X-Definition cut quality

The XPR advances HyDefinition^® cut quality by blending new technology with refined processes for next generation, X-Definition cutting on mild steel, stainless steel, and aluminum.

Consistent ISO range 2 results on thin mild steel
Extended ISO range 3 cut quality on thicker mild steel and stainless steel
Superior stainless steel cut quality
Superior results on aluminum using Vented Water Injection™ (VWI)

Optimized productivity and reduced operating costs

Significantly reduced operating costs than previous generation technology
Increased cut speeds on thicker materials

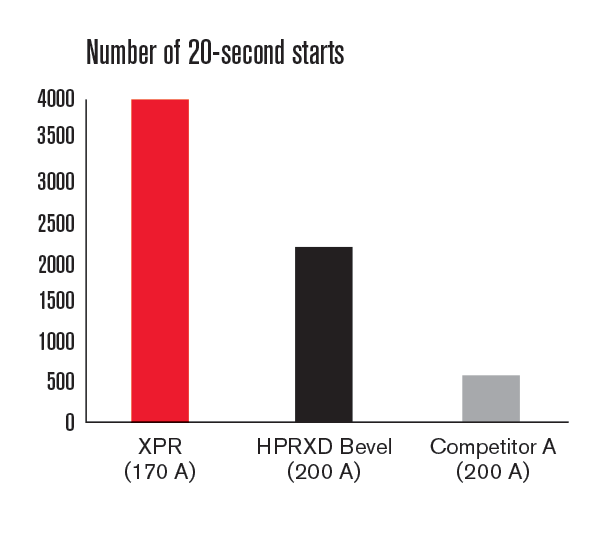

Dramatic improvement in consumable life on mild steel applications
Thicker piercing capability than competitive plasma systems
XPR automated gouging minimizes or eliminates grinding compared to carbon arc gouging, producing weld-ready parts faster with cleaner gouge profiles

Engineered system optimization and ease of use

Ramp down error protection significantly increases realized consumable life
Automatic system monitoring and specific troubleshooting codes for improved maintenance and service prompts
EasyConnect™ torch lead and one hand torch-to-receptacle connection for fast and easy change‑outs
QuickLock™ electrode for easy consumable replacement
The web interface tool can be accessed via Wi-FI and Ethernet LAN in the power supply for system monitoring and service
Built-in IIoT (Industrial Internet of Things) via Ethernet LAN and MTConnect^® enables remote data access for smarter monitoring from anywhere in the world
Manual Set-Mode is ideal for straightforward applications like gouging and off-table beveling; it retains your last setup for faster, repeatable workflows and simplifies set up and operations without the need for CNC/PLC integration

Advanced process control and delivery

Four console options – Core™, CorePlus™, Vented Water Injection™ (VWI™) and OptiMix™ – offer unmatched mild steel cut quality with each console delivering successively enhanced cutting capabilities on stainless steel and aluminum. All consoles can be fully controlled through the CNC for high productivity and ease of use.

Gas-connect console gases/fluids

	Core	CorePlus	Vented Water Injection (VWI)	OptiMix
O₂/N₂/Air	X	X	X	X
Ar		X	X	X
F5/Ar/H₂O			X	X
H₂-N₂-Ar mixing				X

Advanced process control and delivery

Gas-connect console gases/fluids

	Core	CorePlus	Vented Water Injection (VWI)	OptiMix
O₂/N₂/Air	X	X	X	X
Ar		X	X	X
F5/Ar/H₂O			X	X
H₂-N₂-Ar mixing				X

Specifications

Maximum open-circuit voltage (U0)	360 VDC
Maximum output current	170 A
Maximum output power	35.7 kW
Output voltage	50 VDC–210 VDC
100% duty arc voltage	210 V
Duty cycle rating	100% at 35.7 kW, 40° C (104° F)
Operational ambient temperature range	-10° C–40° C (14° F–104° F)
Power factor	0.98 at 35.7 kW
Cooling	Forced air (Class F)
Insulation	Class H
EMC emissions classification (CE models only)	Class A
Lift points	Top lift eye weight rating 454 kg (1,000 lb.) Bottom lift truck slots

Operating data

Mild steel		mm	inches
Pierce capacity	(argon-assist shield gas)	40	1–9/16
	(standard air shield gas)	35	1–3/8
Severance		60	2–3/8
Stainless steel
Pierce capacity		22	7/8
Severance		38	1–1/2
Aluminum
Pierce capacity		25	1
Severance		38	1–1/2

This does not represent a complete list of processes or thicknesses that are available.

Console	Cutting gases	Current (Amperage)	Thickness (mm)	Approximate cutting speed (mm/min)	Thickness (in.)	Approximate cutting speed (ipm)
Mild steel
Core™, CorePlus™, VWI™, and OptiMix™	O₂plasma	30	0.5	5348	0.018	215
	O₂shield		3	1153	0.135	40
	O₂shield		5	726	3/16	30
	O₂plasma	50	3	3820	0.105	155
	Air shield		5	2322	3/16	95
	Air shield		8	1369	5/16	55
	O₂plasma	80	3	5582	0.105	225
	Air shield		6	3048	1/4	110
	Air shield		12	1405	1/2	55
	O₂plasma	130	3	6502	0.035	240
	Air shield		10	2680	3/8	110
	Air shield		38	256	1–1/2	10
	O₂plasma	170	6	5080	1/4	200
	Air shield		12	3061	1/2	115
			25	1175	1	45
			60	152	2–3/8	6
Stainless steel
Core, CorePlus, VWI, and OptiMix	N₂ plasma	40	0.8	6100	0.036	240
	N₂shield		3	2683	0.105	120
	N₂shield		6	918	1/4	32
VWI and OptiMix	F5 plasma	80	3	4248	0.135	140
	N₂shield		6	1916	1/4	70
	N₂shield		12	864	1/2	34
	N₂ plasma	170	10	1975	3/8	80
	H₂O shield		20	978	3/4	40
	H₂O shield		38	434	1-1/2	17
OptiMix	H₂-Ar-N₂ plasma	170	10	1975	3/8	80
	N₂shield		12	1735	1/2	65
	N₂shield		38	256	1-1/2	10
Aluminum
Core, CorePlus, VWI, and OptiMix	Air plasma	40	1.5	4799	0.036	240
	Air shield		3	2596	1/8	85
	Air shield		6	911	1/4	32
VWI and OptiMix	N₂ plasma	80	3	3820	1/8	140
	H₂O shield		6	2203	1/4	80
	H₂O shield		10	956	1/2	28
	N₂ plasma	130	6	2413	1/4	95
	H₂O shield		10	1702	3/8	70
	H₂O shield		20	870	3/4	35
	N₂ plasma	170	10	1994	3/8	80
	H₂O shield		20	978	3/4	40
	H₂O shield		38	434	1-1/2	17
OptiMix	H₂-Ar-N₂ plasma	170	10	3334	3/8	135
	N₂shield		20	1213	3/4	50
	N₂shield		38	384	1-1/2	15

Torches and consumables

Nozzles and electrodes are available in various quantities. Please contact an authorized Hypertherm distributor to place your consumables order. Your consumables may not look exactly like the pictures.

XPR torch

Part number Standard	Part number Standard Bevel/Robotic	Part number Bevel/Robotic	Description
428383	428825	428831*	Lead: 6.6′
428384	428826	428832*	Lead: 8.2′
428385	428827	428833*	Lead: 9.8′
428386	428828	428834*	Lead: 11.5′
428824	428829	428335*	Lead: 13.1′
428387	428830	428836*	Lead: 4.8′
	428978**	428979**	Lead: 20′**
	428916		Lead: Thru arm robotic 11.5′
	428918		Lead: Thru arm robotic 14.8′
420500			Torch mounting sleeve: Standard
420501			Torch mounting sleeve: Short
420502			Torch mounting sleeve: Extended
	420788		Rotational torch mounting sleeve: Short
	420789		Rotational torch mounting sleeve: Medium
	420790		Rotational torch mounting sleeve: Extended
420220			Quick-disconnect torch receptacle
420221			Quick-disconnect XPR torch
420368			Water tube

* Bevel/Robotic leads sets 428831-428836 include an extended 1.2 m (48″) strain relief.
** The 6 m (20′) lead is compatible only with console gas assemblies that are 7.5 m (24.6′) or less.

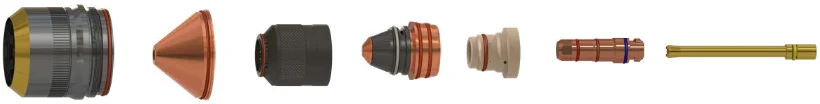

Mild steel

Amperage	Process	Shield cap	Shield	Nozzle retaining cap	Nozzle	Swirl ring	Electrode	Water tube
30 A	O₂/O₂	420200	420228	420365	420225	420407	420222	420368
50 A	O₂/Air	420200	420237	420365	420234	420233	420231	420368
80 A	O₂/Air	420200	420246	420365	420243	420242	420240	420368
130 A	O₂/Air	420200	420255	420365	420252	420242	420249	420368
170 A	O₂/Air	420200	420513	420365	420261	420260	420258	420368

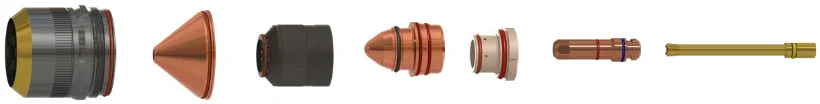

Non-ferrous

Amperage	Process	Shield cap	Shield	Nozzle retaining cap	Nozzle	Swirl ring	Electrode	Water tube
40 A	N₂/N₂	420200	420291	420365	420288	420314	420303	420368
40 A	Air/Air	420200	420291	420365	420288	420314	420294	420368
60 A	N₂/N₂	420200	420309	420365	420297	420323	420303	420368
	F5/N₂	420200	420309	420365	420297	420323	420303	420368
	N2/H₂O	420200	420300	420365	420296	420323	420303	420368
	Air/Air	420200	420309	420365	420297	420323	420294	420368
80 A	N₂/N₂	420200	420309	420365	420306	420323	420303	420368
	F5/N₂	420200	420309	420365	420306	420323	420303	420368
	N2/H₂O	420200	420300	420365	420290	420323	420303	420368
	Air/Air	420200	420309	420365	420306	420323	420294	420368
130 A	N₂/N₂	420200	420318	420365	420315	420314	420356	420368
	H₂-Ar-N₂/N₂	420200	420318	420365	420315	420323	420356	420368
	N2/H₂O	420200	420469	420365	420315	420314	420356	420368
170 A	N₂/N₂	420200	420327	420365	420324	420314	420356	420368
	H₂-Ar-N₂/N₂	420200	420327	420365	420324	420323	420356	420368
	N2/H₂O	420200	420472	420365	420324	420314	420356	420368
	Air/Air	420200	420513	420365	420524	420260	420258	420368

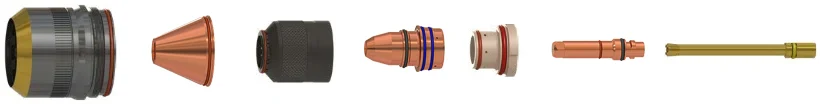

Gouging Consumables

Mild Steel

Amperage	Process	Shield cap	Shield	Nozzle retaining cap	Nozzle*	Swirl ring	Electrode	Water tube
170A	O₂/Air	420200	10086659	420365	10087904 (.140) Bore	420242	10086653	420368
300A	O₂/Air	420200	10086659	420365	10086655 (.180) Bore	420242	10086653	420368
460A	O₂/Air	420200	10086659	420365	10086657 (.195) Bore	420242	10086653	420368

XPR170 starter kits

Part number	Description
428842	XPR170 mild steel consumables starter kit (torch included)
428841	XPR170 non-ferrous consumables starter kit (torch included)
428840	XPR170 mild steel consumables starter kit
428843	XPR170 non-ferrous consumables starter kit
428944	XPR170 Core console non-ferrous consumables starter kit
