The G-WEIKE T2 Series is a versatile fiber laser tube cutting machine offering high efficiency, stable clamping, and compatibility with multiple pipe and profile types. Designed for CNC tube cutting applications, it delivers speed, precision, and automation readiness for modern manufacturing workflows.
Machine models: GKS-6012T2, GKS-6016T2, GKS-9016T2
High-efficiency tube laser cutting machine for round, square, and rectangular pipes.
Perfect CNC solution for furniture, fitness, and machinery industries.
Precision pneumatic chuck, four-jaw automatic centering clamping, stable clamping without damaging the workpiece.
Maximum chuck speed of 150r/min, providing higher profitability
The T2 Series Fiber Laser Tube Cutting Machine is a high-efficiency CNC solution designed for precision cutting of round, square, and rectangular pipes, as well as a wide range of profiled steel sections. Engineered for productivity and flexibility, the T2 Series combines a high-speed pneumatic chuck system with stable, automated clamping to ensure accurate cutting without damaging the workpiece.
This machine is particularly well suited for manufacturers requiring reliable tube processing in sectors such as furniture production, fitness equipment, and industrial machinery. With optional automated loading and unloading configurations, the T2 Series supports scalable production environments and reduced manual handling.
The T2 Series is ideal for tube and profile cutting in the following industries:

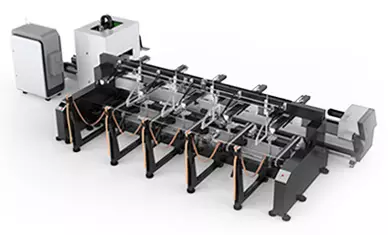

Optional - Semi automatic loading and unloading system

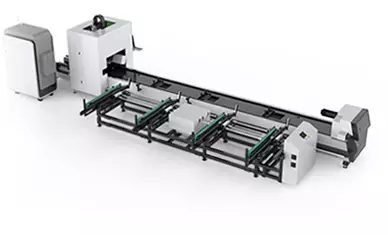

Atomatic loading and unloading system

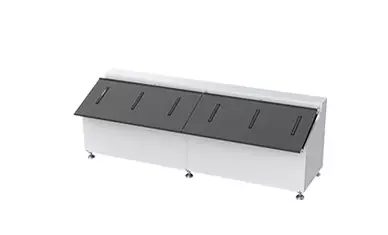

Follow-up Unloading Rack

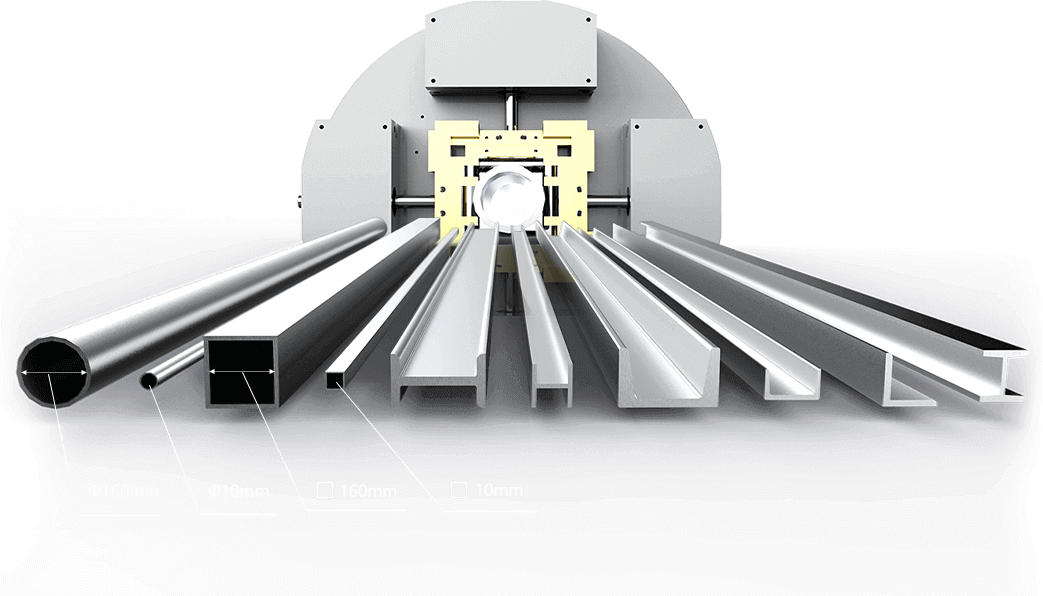

Capable of cutting round pipes, square pipes, rectangular pipes, channel steel, angle steel, I-beams, and other profiled steel.
| Machine model | GKS-6012T2 | GKS-6016T2 | GKS-9016T2 |
|---|---|---|---|
| Series | T2 Series | ||
| Laser power | 1500W–3000W | 1500W–3000W | 1500W–3000W |
| Clamping range | Round pipe Ø10–120 mm Square pipe □10–120 mm |
Round pipe Ø10–160 mm Square pipe □10–160 mm |
Round pipe Ø10–160 mm Square pipe □10–160 mm |
| Maximum rotating speed | 200 r/min | 140 r/min | 140 r/min |
| Effective cutting length of pipe | 6500 mm | 6500 mm | 9500 mm |
| Single pipe load-bearing | 80 kg | 80 kg | 80 kg |
| Chuck structure | 120 Pneumatic Chuck | 160 Pneumatic Chuck | 160 Pneumatic Chuck |
T2 SERIES
