The PILOUS DX NC conveyor system provides precise servo-controlled material feeding with touchscreen operation, improving automation, accuracy and workflow efficiency in CNC cutting environments.

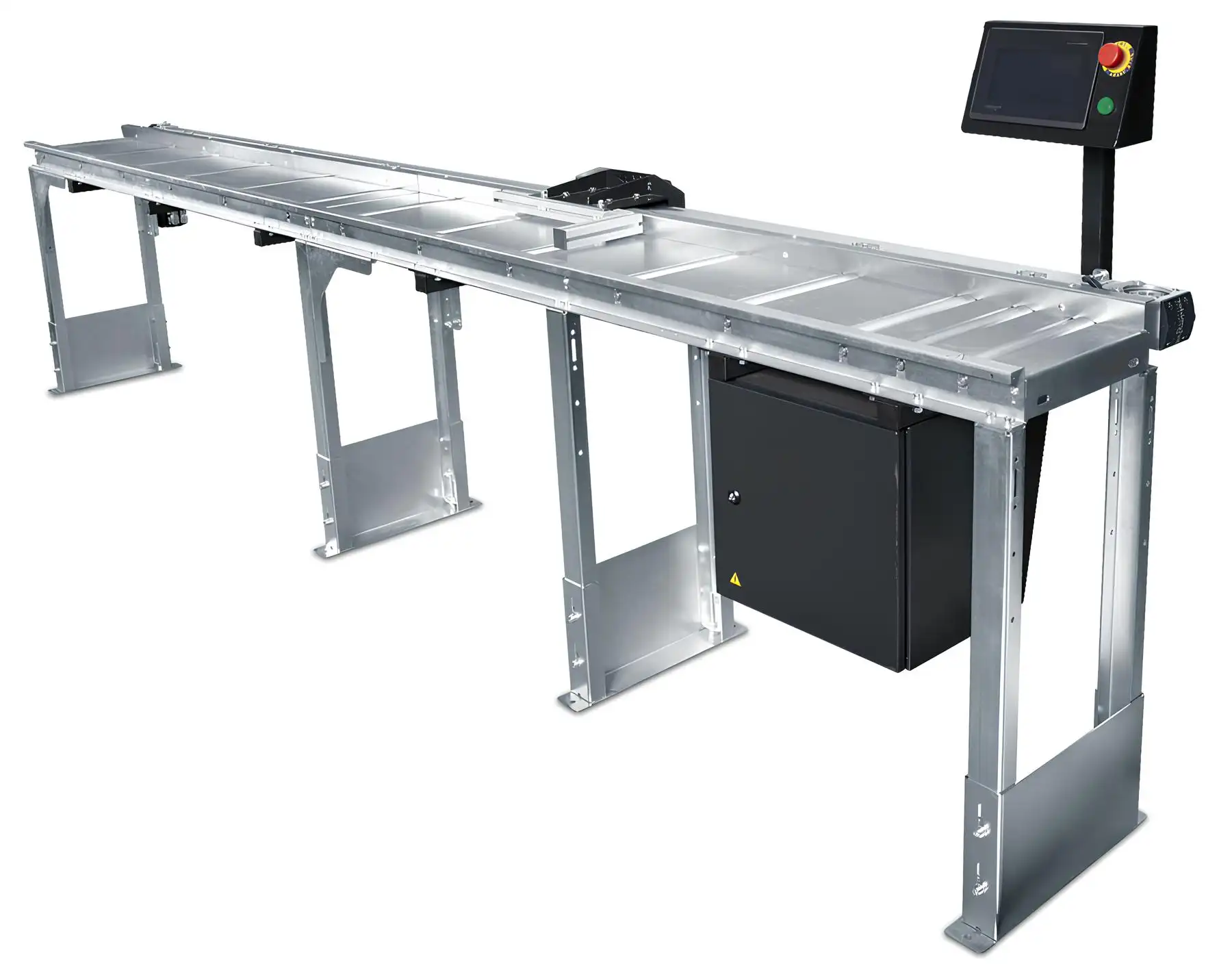

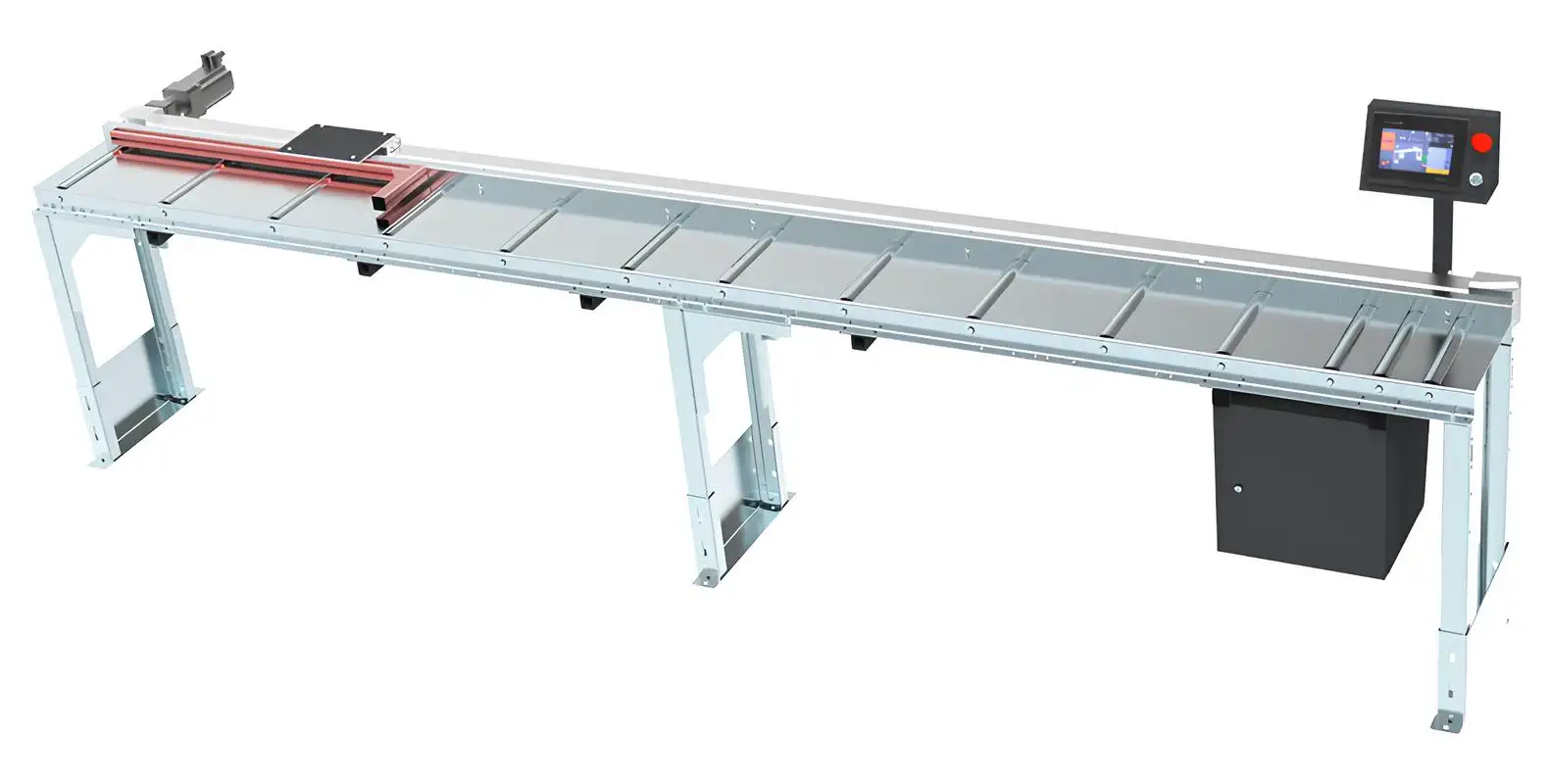

The DX NC conveyor system from PILOUS is a precision-controlled material feeding solution developed for automated industrial cutting operations. Designed for integration with CNC bandsaws and production systems, it combines intelligent positioning, high feeding accuracy and robust construction for demanding manufacturing environments.
The DX NC system is engineered to automate the measuring, positioning and feeding of workpieces into CNC cutting machines with a high degree of precision. It is specifically designed for industrial production lines where repeatability, efficiency and reliable automation are critical.
Using a servo-driven positioning system and touchscreen interface, the conveyor enables accurate movement of long and heavy workpieces while reducing manual handling and setup time. The system supports multiple conveyor lengths and is capable of handling substantial loads, making it suitable for both standard and heavy-duty fabrication operations.
Its integration with modern CNC cutting systems improves workflow continuity and helps manufacturers optimise production speed and cutting consistency.
The package includes system with Automated NC Gauging, feeding system of appropriate length, control panel, conveyor.
| measured length [mm] | total length [mm] | |
| DX-NC 3m | 2400 | 3000 |
| DX-NC 4m | 3400 | 4000 |
| DX-NC 7m | 6400 | 7000 |
Precision servo-controlled feeding
The DX NC system uses a BMH1001 servomotor to provide accurate and controlled movement of workpieces.
This enables:
The system achieves a feeding accuracy of 0.1 mm, supporting highly consistent cutting results.

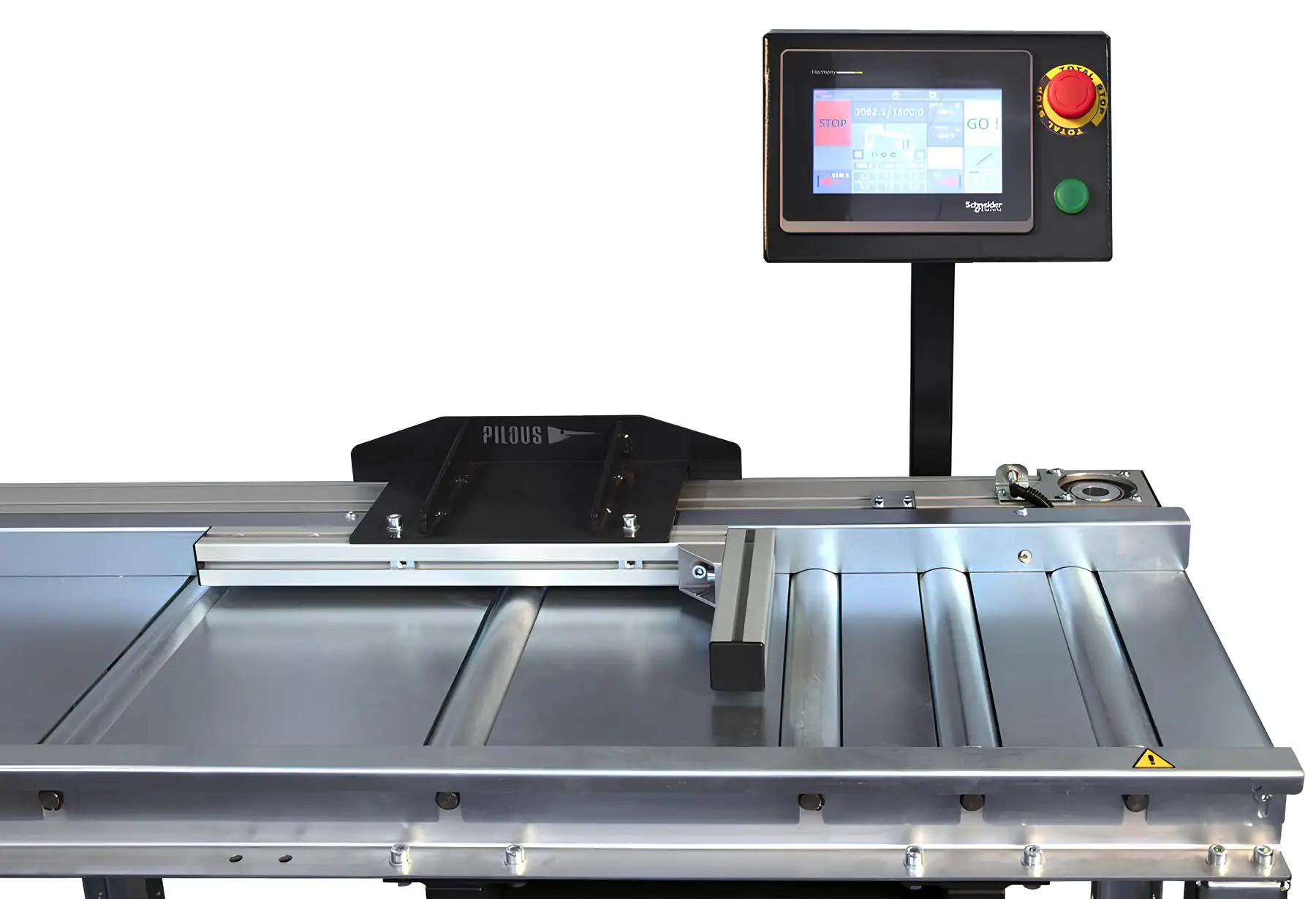

Industrial touchscreen control
The integrated 7-inch touchscreen interface simplifies operation and allows fast control of feeding functions and positioning settings.
This improves:
Heavy-duty material handling
Designed for industrial production, the system supports:
Flexible conveyor configurations
The DX NC conveyor is available in different lengths:
Measured lengths include:
This flexibility allows integration into various production layouts and cutting requirements.

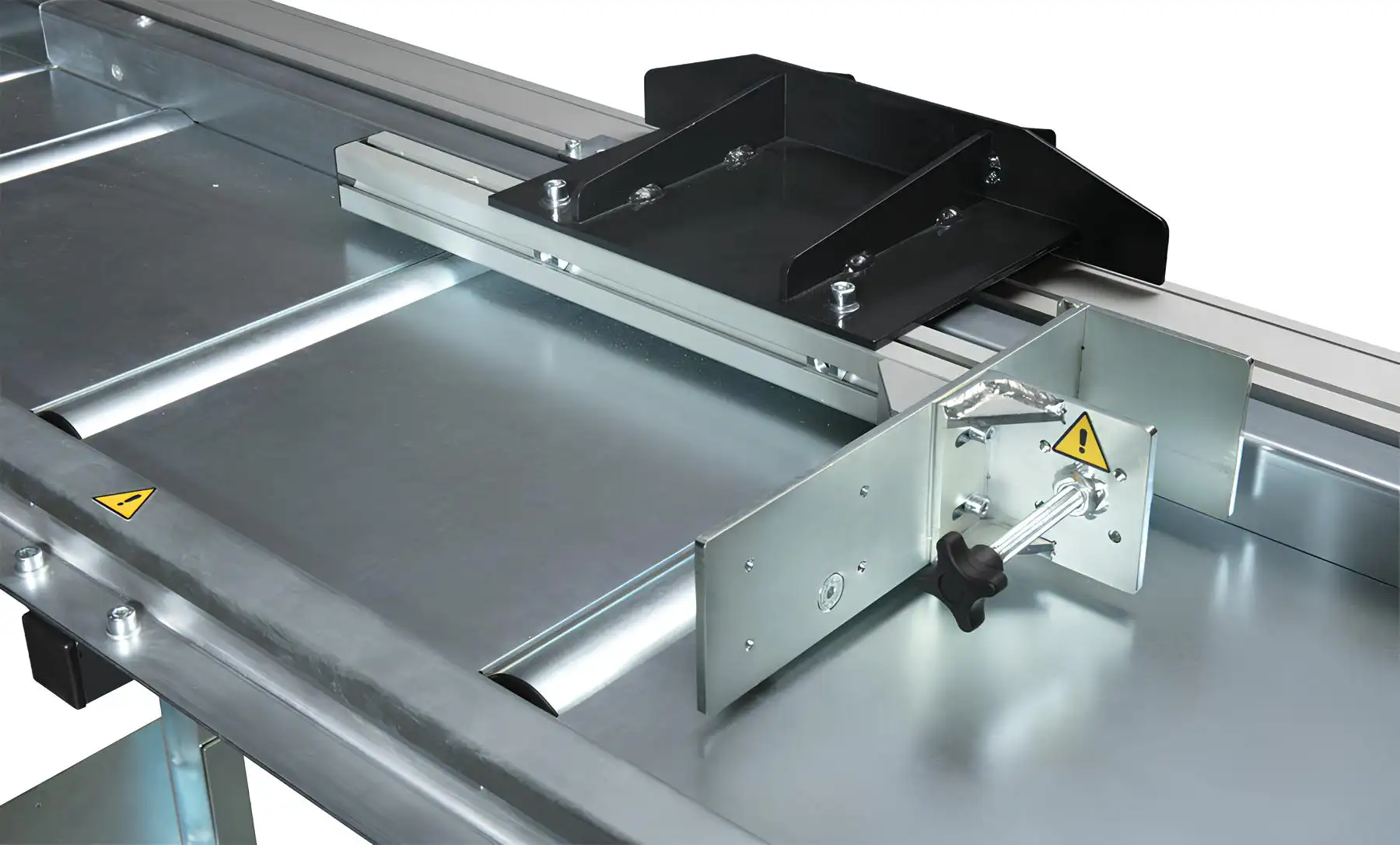

Linear guide carriage system
The carriage assembly is mounted on a linear guide system, ensuring:
This contributes to consistent feeding performance and long-term durability.
Optimised workflow automation
By automating material positioning and feeding, the DX NC system helps:
The DX NC conveyor system is suitable for:
It is particularly valuable in facilities focused on automation and precision production.
The DX NC system offers a combination of precision automation, industrial durability and efficient workflow integration. Its servo-controlled positioning and touchscreen operation make it an excellent solution for manufacturers seeking reliable automated feeding in demanding cutting environments.
It is ideal for companies that:
Within the ANATECO portfolio, it represents a professional-grade NC conveyor solution for advanced industrial cutting automation.
| Control | Using servomotor BMH1001 |
| Motor power | 1.26 kW |
| Speed | 4000 rpm |
| Control interface | Large 7" touch screen |
| Feeding accuracy | 0.1 mm |
| Conveyor length | 3 m, 4 m, 7 m |
| Measured length | 2400 mm, 3400 mm, 6400 mm |
| Roller width | 300 mm |
| Roller diameter | 60 mm |
| Load capacity | 300 kg/m |
| Maximum weight of pushed workpiece | 500 kg |
| Carriage mounting | Linear guide |
