SL Series

The SL Series Ground Rail Large Format Laser Cutting Machine is engineered for heavy-duty, large-scale metal processing where stability, precision, and safety are non-negotiable. Designed around a modular ground-rail structure, the SL Series supports extra-large working formats while maintaining consistent cutting accuracy across extended lengths.

Its modular lathe bed construction allows customized machine lengths according to production needs. The bed and workbench are designed separately and manufactured from large-section rectangular steel pipes, welded and stress-relieved through annealing to ensure long-term structural stability, vibration resistance, and reliable transportation.

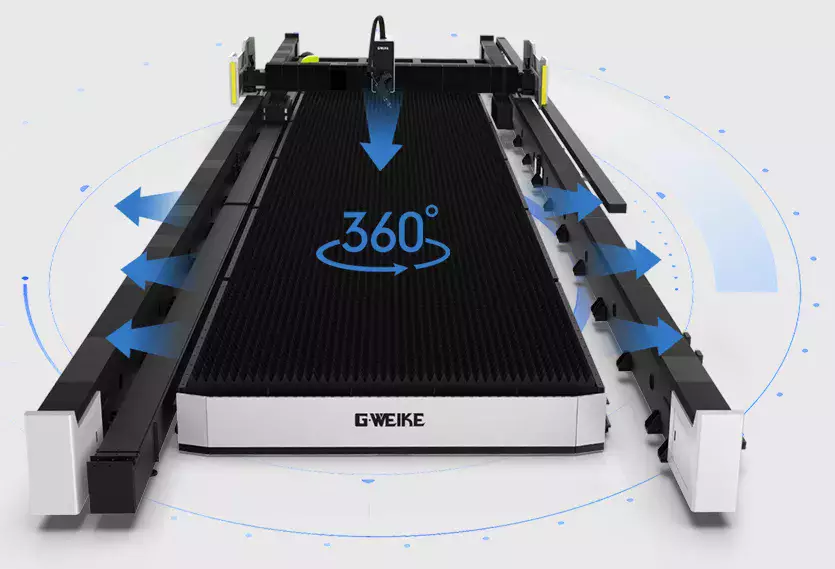

Advanced zone ventilation with right-side air blowing and left-side suction ensures efficient smoke extraction, reduced carbon emissions, and a cleaner working environment even during high-power cutting. Operator safety is reinforced through full-coverage safety light curtains mounted on both sides of the crossbeam, delivering all-around protection during operation.

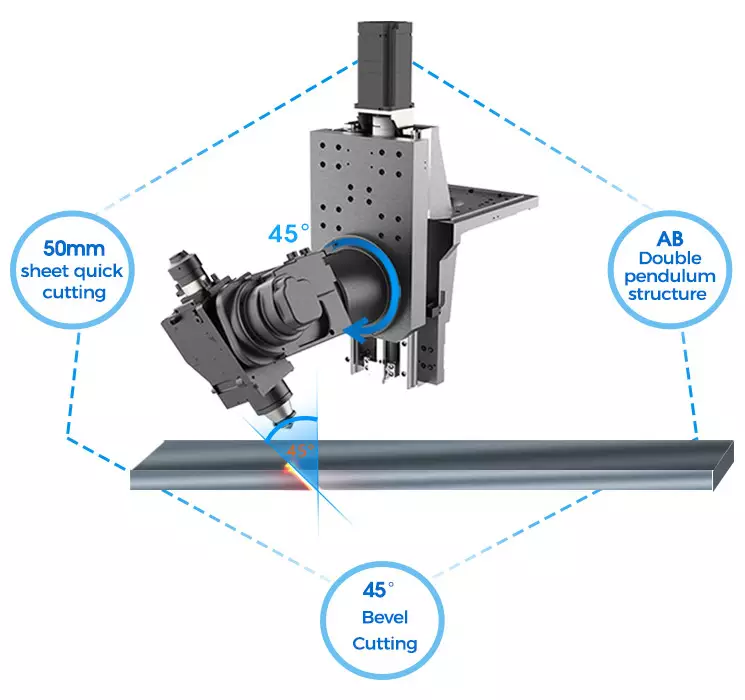

For complex fabrication requirements, the SL Series optionally supports 0–45° bevel cutting, enabling multi-angle, multi-shape bevels in a single cutting process. Intelligent systems such as follower collision sensing, air pressure DA correction, automatic nozzle replacement, and vibration suppression further enhance cutting reliability, machine protection, and long-term productivity.

Applications

The SL Series is designed for high-load, large-dimension industrial applications, including:

• Agricultural machinery manufacturing
• Steel structure fabrication
• Tower and energy infrastructure industries
• Shipbuilding and marine components
• Mining machinery production
• Sheet metal processing at large scale
• Mechanical equipment manufacturing
• Construction machinery and heavy fabrication

Key points

• Ground rail large-format laser cutting platform
• Modular bed design with customizable machine length
• Separate lathe bed and workbench for improved stability
• Stress-relieved welded structure for long-term accuracy
• Zone-based ventilation for clean, low-carbon operation
• Full safety light curtain protection on crossbeam sides
• Optional 0–45° full bevel cutting in one step
• Intelligent follower collision sensing for head protection
• Automatic nozzle replacement and air pressure DA correction
• High laser power options for thick and large-scale materials

Technical highlights

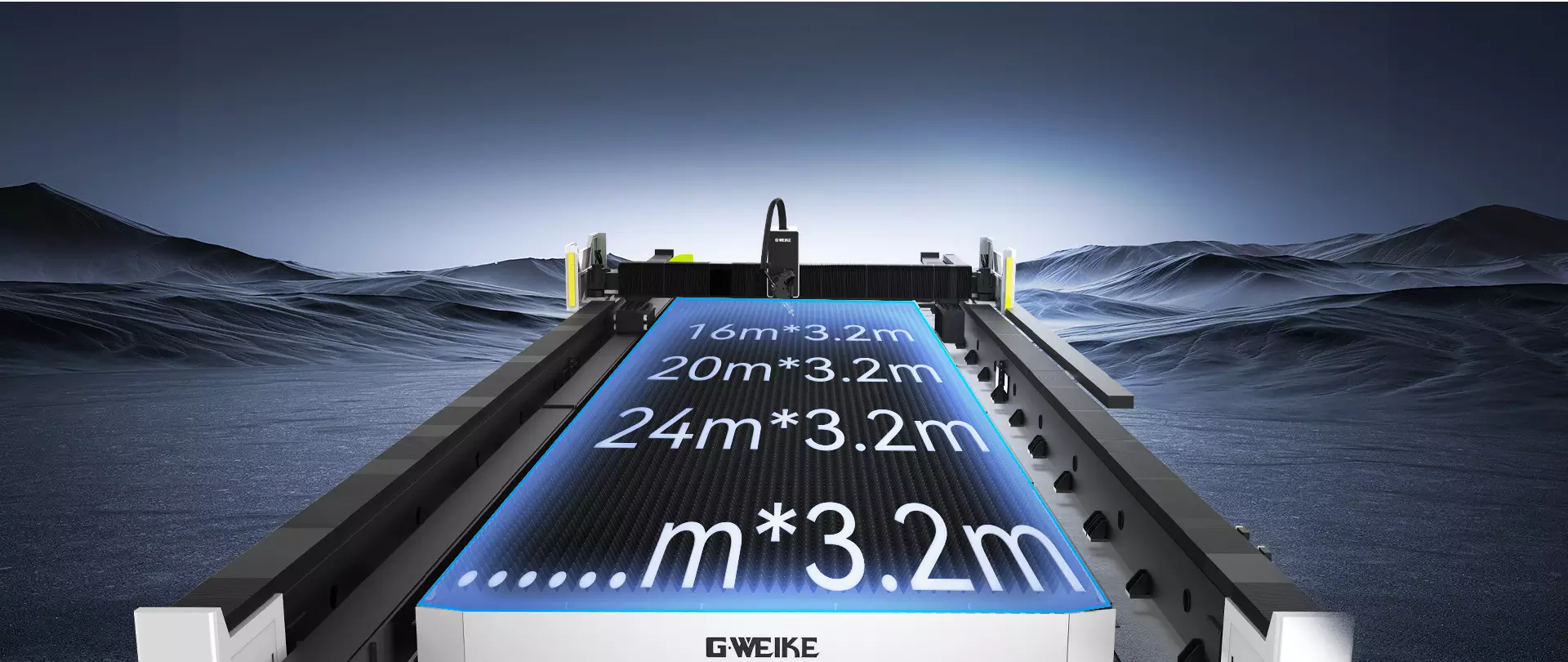

• Models: 16032SL / 24032SL
• Working areas:
  • 16032SL: 16000 × 3200 mm
  • 24032SL: 24000 × 3200 mm
• Laser power options: 3000W to 135000W
• X/Y axis positioning accuracy: 0.1 mm / 10 m & 0.05 mm / 5 m
• X/Y axis repeat positioning accuracy: ±0.05 mm
