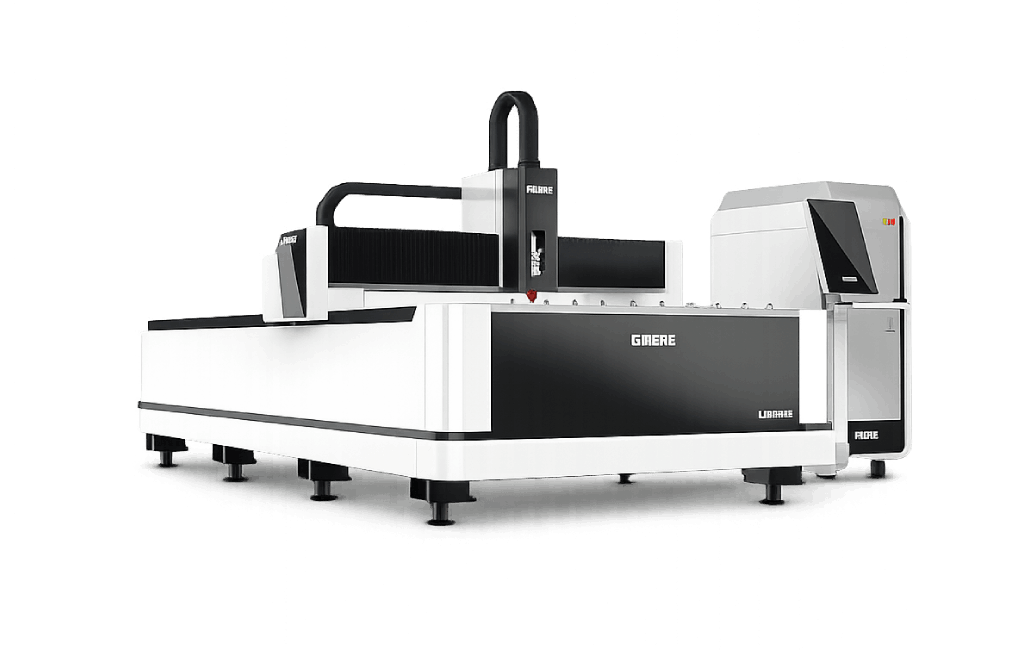

LF3015LN

The LN Series Single Platform Laser Cutting Machine is engineered for high-speed, high-precision sheet metal processing, combining robust mechanical design with advanced motion control. Equipped with dual bus servo motors, the system achieves a dry running speed of up to 120 m/min and acceleration up to 1.5G, delivering up to 30% improved dynamic performance compared to conventional single-bus systems.

The machine features a modular tabletop design, simplifying transportation, installation, and long-term maintenance while reducing overall lifecycle costs. Its aviation-grade aluminum beam, manufactured using aerospace extrusion standards and treated to reach 6061-T6 strength, offers an optimal balance of low weight and high rigidity, resulting in improved stability at high speeds.

Operational intelligence is enhanced through collision avoidance during movement, intelligent vibration suppression, air pressure DA correction, and automatic nozzle replacement, ensuring safe, smooth, and consistent cutting performance. With working areas ranging from 3050 × 1530 mm up to 6050 × 2530 mm, and laser power options reaching 12,000 W, the LN Series is suitable for a wide range of industrial cutting applications requiring speed, accuracy, and reliability.

Applications

The LN Series Single Platform Laser Cutting Machine is designed for high-throughput, precision cutting across a wide range of sheet-metal applications. Its speed, rigidity, and intelligent motion control make it suitable for both mass production and flexible job-shop environments.

Typical applications include:

• Sheet metal fabrication for industrial components and assemblies
• Electrical cabinets and enclosures requiring clean edges and tight tolerances
• HVAC components, panels, and ductwork
• Automotive and transport parts, including brackets and structural elements
• Elevator, machinery, and equipment manufacturing
• General metal processing workshops seeking fast turnaround and stable accuracy

With multiple working area configurations and laser power options up to 12,000 W, the LN Series supports thin to medium-thickness sheet processing with consistent quality, even in high-speed production cycles.

Key points

• Dual bus servo motor system improves dynamic response by up to 30%, enabling faster acceleration and smoother motion control
• High acceleration and speed, reaching 1.5G and 120 m/min dry running speed, significantly reducing non-cutting time

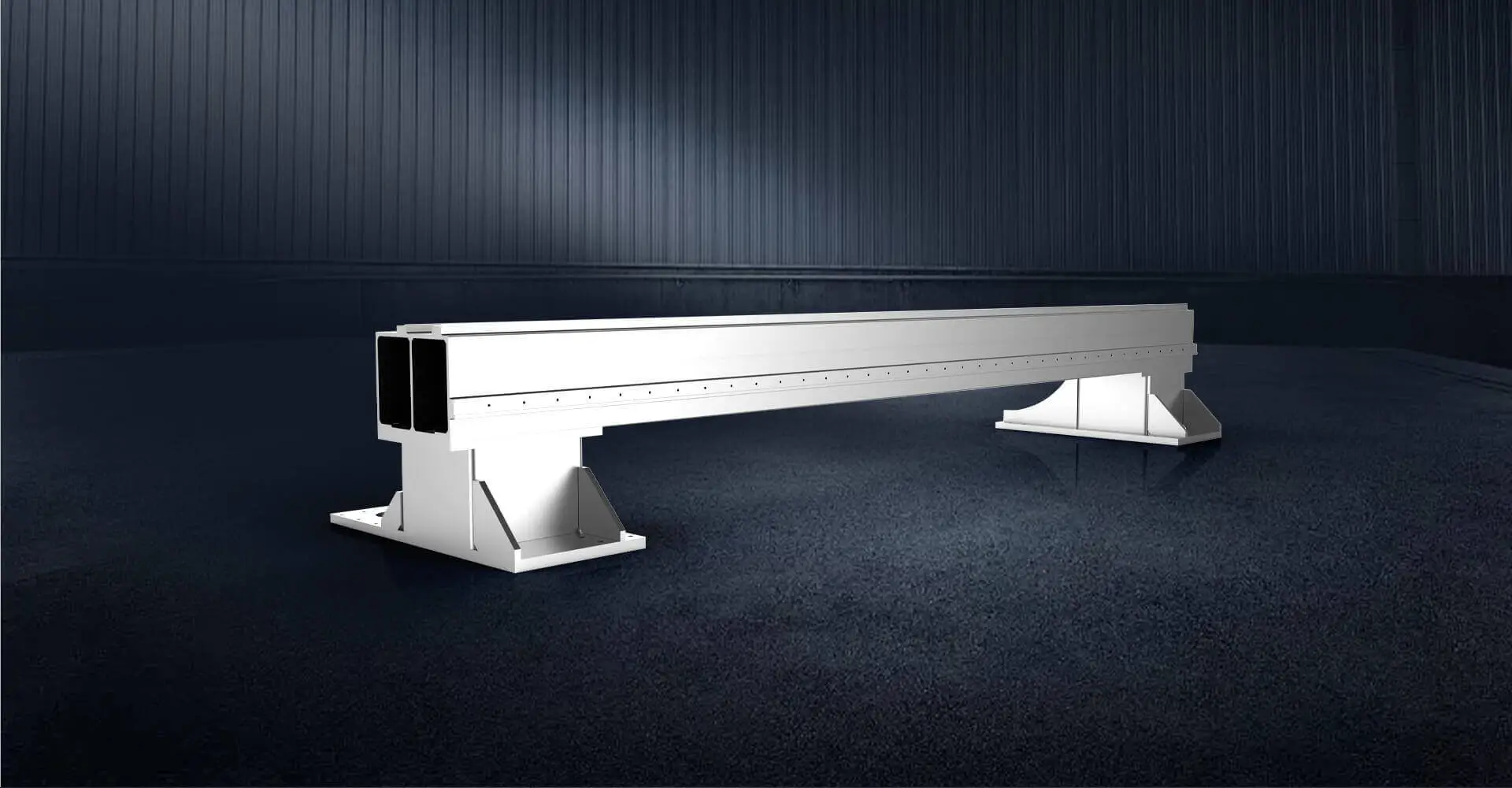

• Aviation-grade aluminum beam (6061-T6) offers high rigidity with reduced mass, improving stability at high speeds

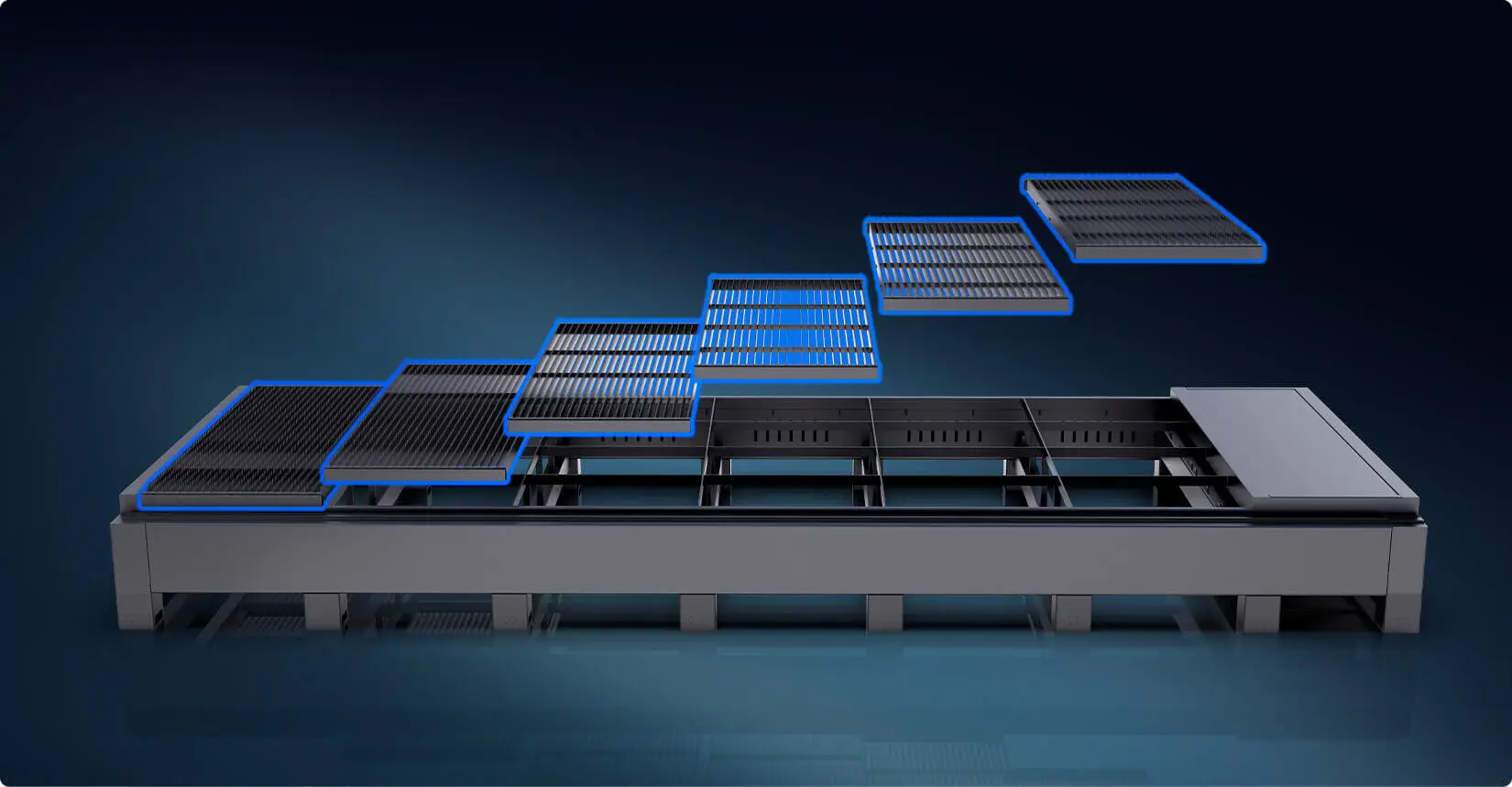

• Modular tabletop design simplifies transportation, installation, and long-term maintenance while lowering operating costs

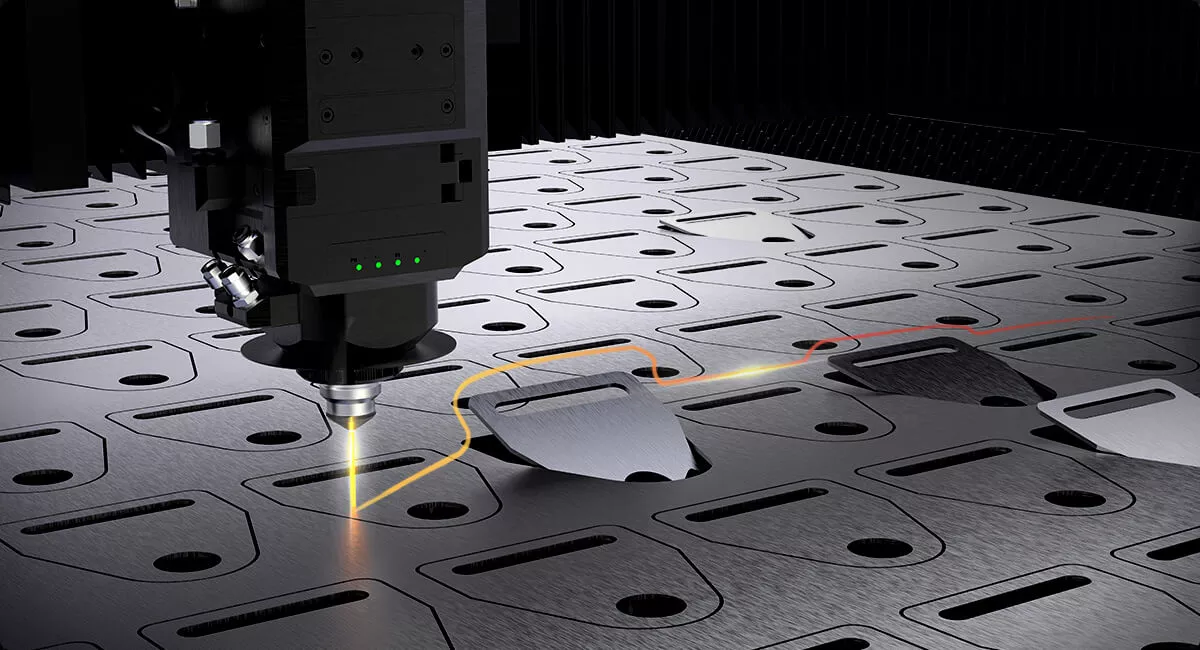

• Intelligent collision avoidance protects the cutting head and machine during high-speed movement

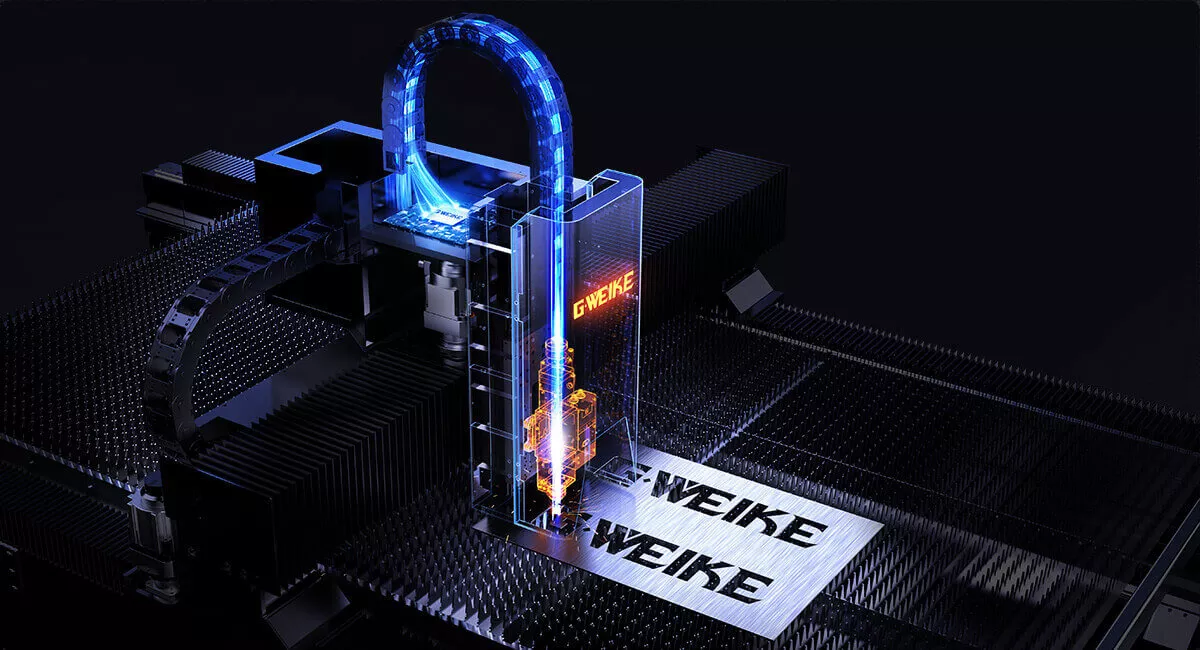

• Automatic nozzle replacement and air pressure DA correction ensure stable cutting conditions with minimal operator intervention

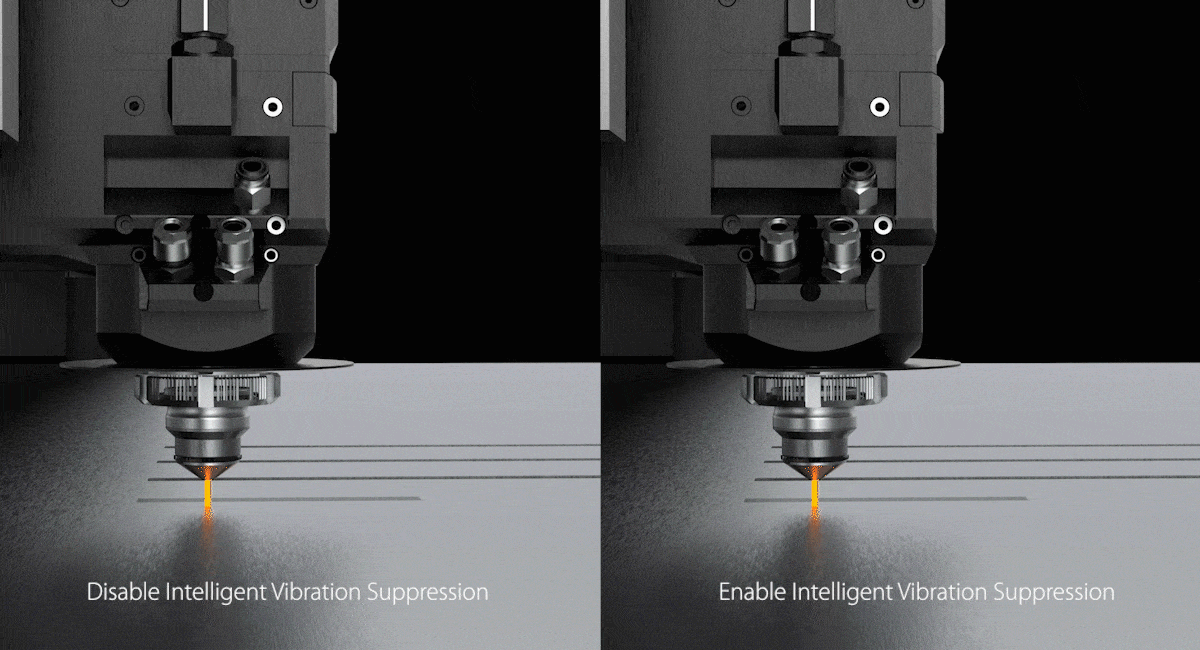

• Intelligent vibration suppression enhances cut quality and extends component lifespan
• Wide configuration range, supporting multiple bed sizes and laser power options to match different production needs
