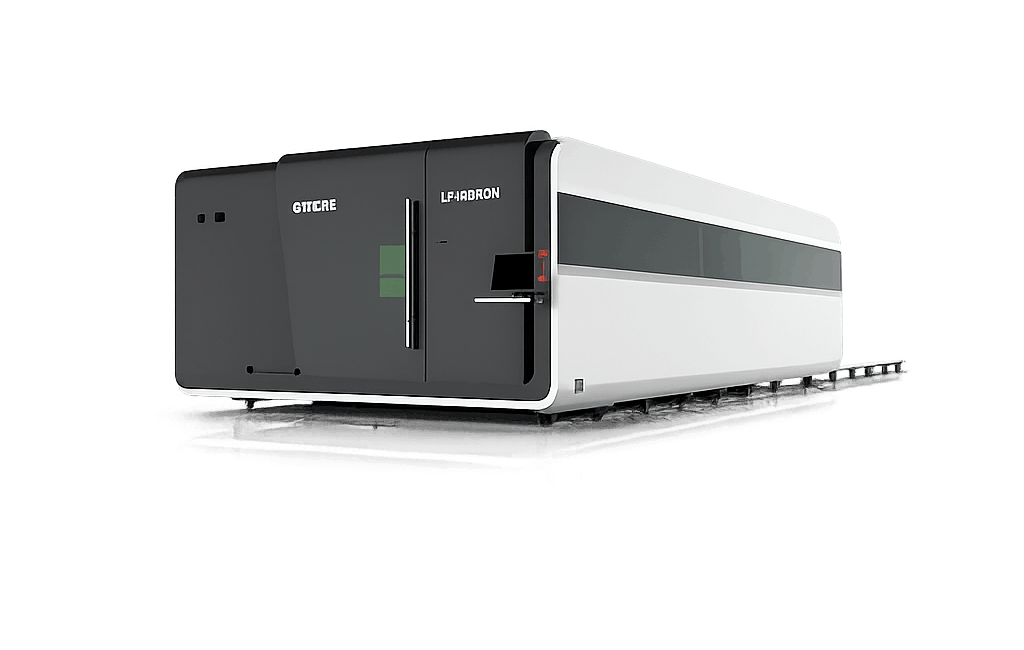

The GH series fiber laser cutting machines are designed for large-format, high-power industrial applications. Featuring an advanced autofocus cutting head, water-cooled optics, and an ultra-heavy annealed welded bed, they deliver stable, precise, and high-speed cutting on thick metal plates. Powered by IPG fiber laser sources up to 20,000 W, the GH series ensures reliability and consistent cutting accuracy in demanding production environments.

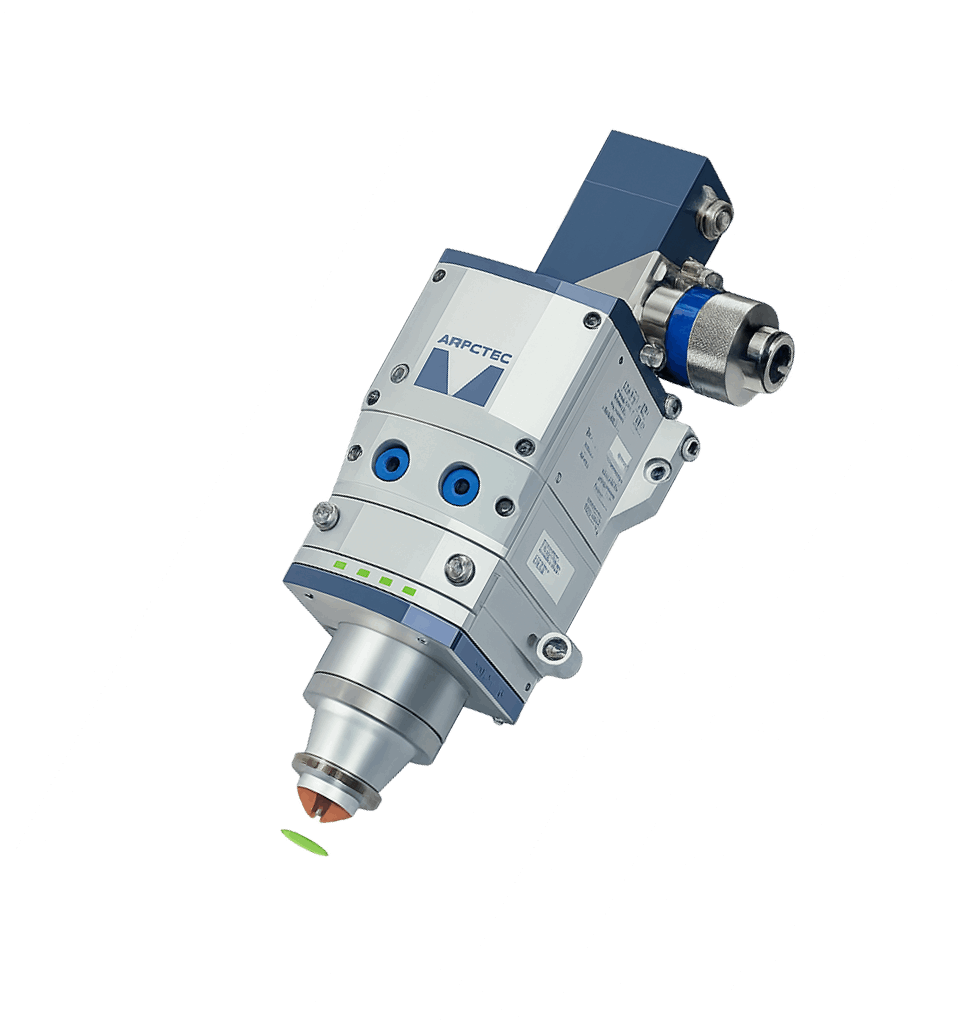

Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

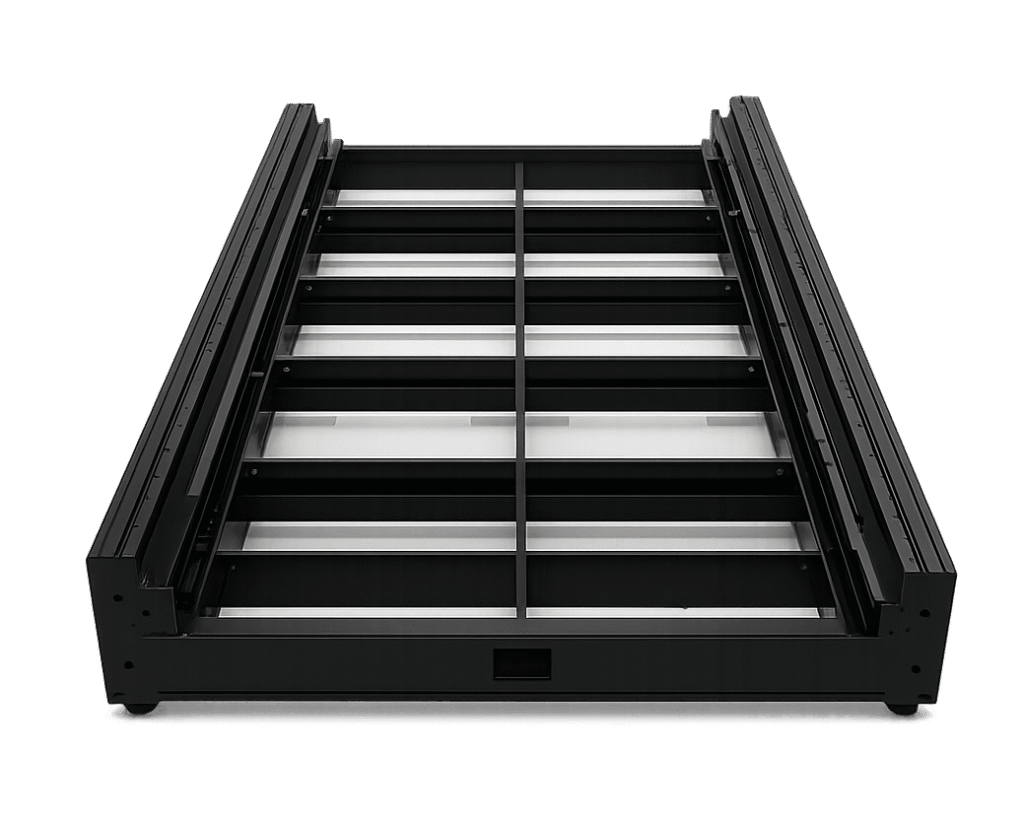

It is welded by heavy steel plate, the current mainstream bed structure, high stability;
Effect force annealing treatment, high mechanical strength, not easy to deform;
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;
The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
World Famous Brand

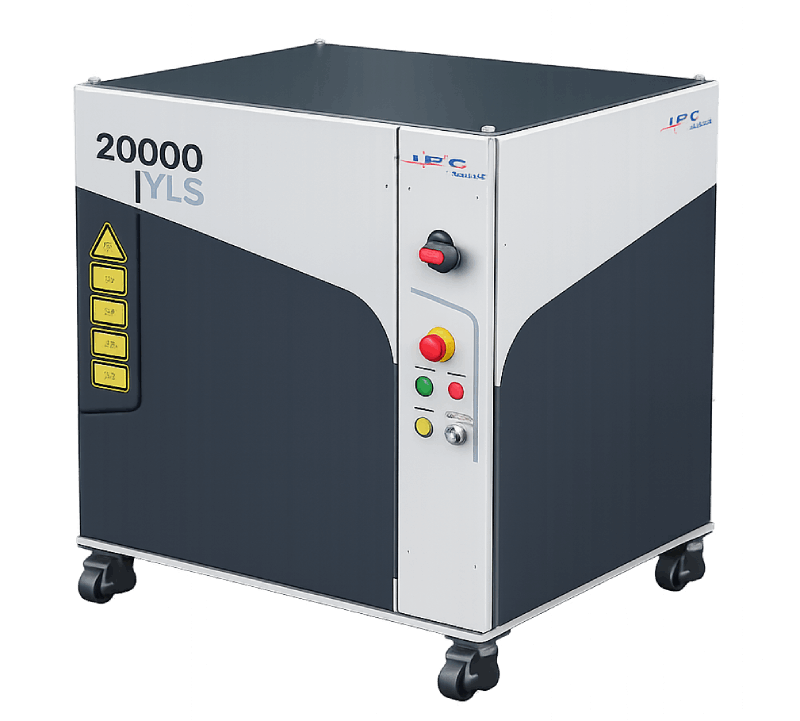

GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG.Powerful cutting ability with stainless stell,aluminum and other metal materials,cutting thickness is up to 40mm.
Long Service life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.
Stable Cutting Performance
Fiber laser source can produce excellent beam quality,finer cutting lines,higher working efficiency and better machining quality.Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.
Fast, Stable And High Quality
Gweike laser large format equipment includes 12025G (12m2.5m), 10025G (10m2.5m)
The overweight bed process meets the diverse needs of the global market for large sheet metal cutting
High-end, high-precision, high-speed, high-format and cost-effective.

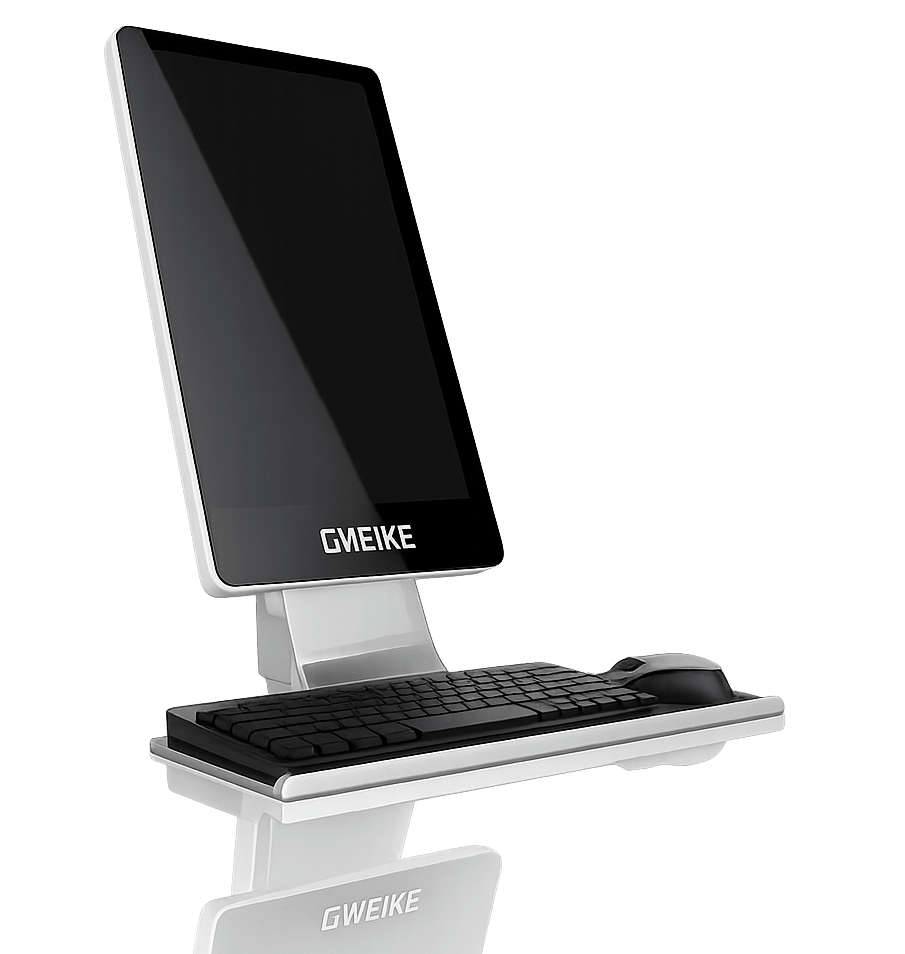

Apple pad design, vertical screen display, wide viewing angle, low power consumption, high resolution and high contrast.
The use of high-definition tempered glass, intelligent touch control and fast response speed make the screen more delicate and smooth, and the operation is smoother.
A SMOKELESS CLEAN WORLD
Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology
Each section of the bed has a smoke exhaust device
Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward
Full 360° strong adsorption and consistent smoke exhaust
Effectively purify the smoke and dust on the top of the enclosed cutting platform
Improve purification efficiency and reject lens contamination
Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smoking
Create a concealed cavity, fully enclosed smoke control and clean smoke
World Famous Brand
Lightweight and slim design, for 0.5mm–60mm carbon steel plate, 0.5–50mm stainless steel plate
Galvanized sheet and cold-rolled sheet realize non-inductive perforation and flexible cutting process.
It greatly boosts the processing level, stability, accuracy, and production efficiency of the entire cutting product.
Strong cutting force and high-quality beam quality and reliability.

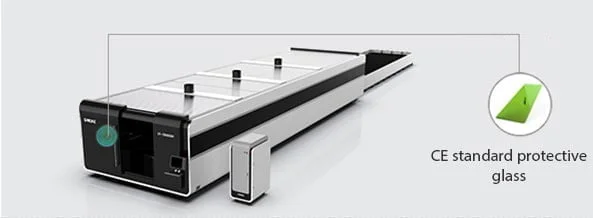

Fully enclosed design; the observation window adopts European CE standard protective glass; the smoke generated by cutting is internally filtered, and the emission is up to the standard, without pollution;
It adopts Japanese Yaskawa motor, Taiwan Shangyin rack, and French motor reducer. The positioning accuracy of the machine tool is 0.02.

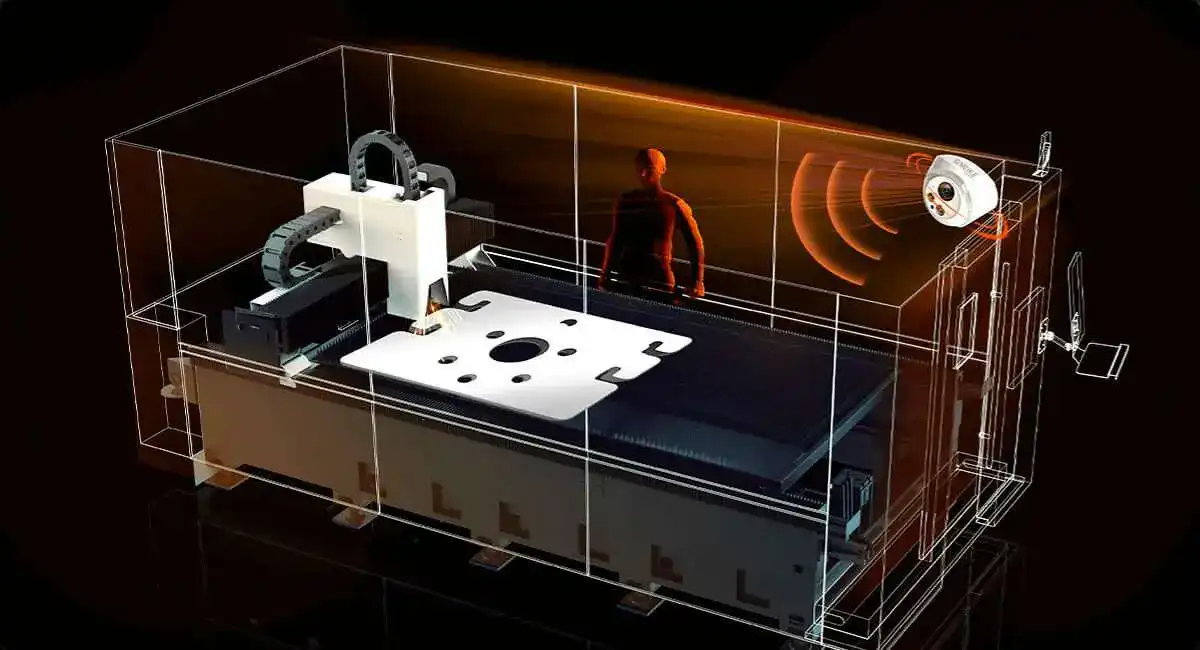

During the processing, each blind spot area can be monitored at any time, and the cutting process can be controlled; the high-definition intelligent monitoring system, remote alarm operation is no danger.
This fiber laser cutting series is engineered for large-format, high-power industrial cutting where stability, precision, and continuous operation are critical. Equipped with an advanced autofocus laser cutting head, the system automatically adjusts focus for perforation and cutting across varying plate thicknesses, eliminating manual intervention and improving processing efficiency. Water-cooled collimator and focusing optics ensure thermal stability and extended component lifespan.
The GH series features an ultra-heavy, annealed plate-welded bed designed to withstand long-term high-load operation without deformation. Reinforced internal rib structures and segmented bed construction enhance rigidity, vibration damping, and cutting accuracy over large working areas. Powered by IPG fiber laser sources up to 20 000 W, the machines deliver consistent beam quality, high cutting speeds, and clean edge results on carbon steel, stainless steel, aluminum, and other metals. Designed for heavy-duty production environments, the GH series is ideal for manufacturers requiring large-scale capacity, reliability, safety, and precision.
| Machine model | LF4020GH | LF6025GH | LF10025GH | LF12025GH |
| Laser power | 8000W 12000W 15000W 20000W(Optional) | |||
| Dimensions | 11475*2574*5169mm | 14937*3952*2287mm | 22953.5*4006*2336.5mm | 27092*4119*2336.5mm |
| Working area | 4000mm*2000mm | 6000mm*2500mm | 10000mm*2500mm | 12000mm*2500mm |
| Repeat positioning accuracy | ±0.02mm | |||
| Maximum speed | 200m/min | |||
| Max. acceleration | 2.5G | |||
| Voltage and frequency | 380V 50Hz/60HZ | |||
