Medium heavy roller conveyors

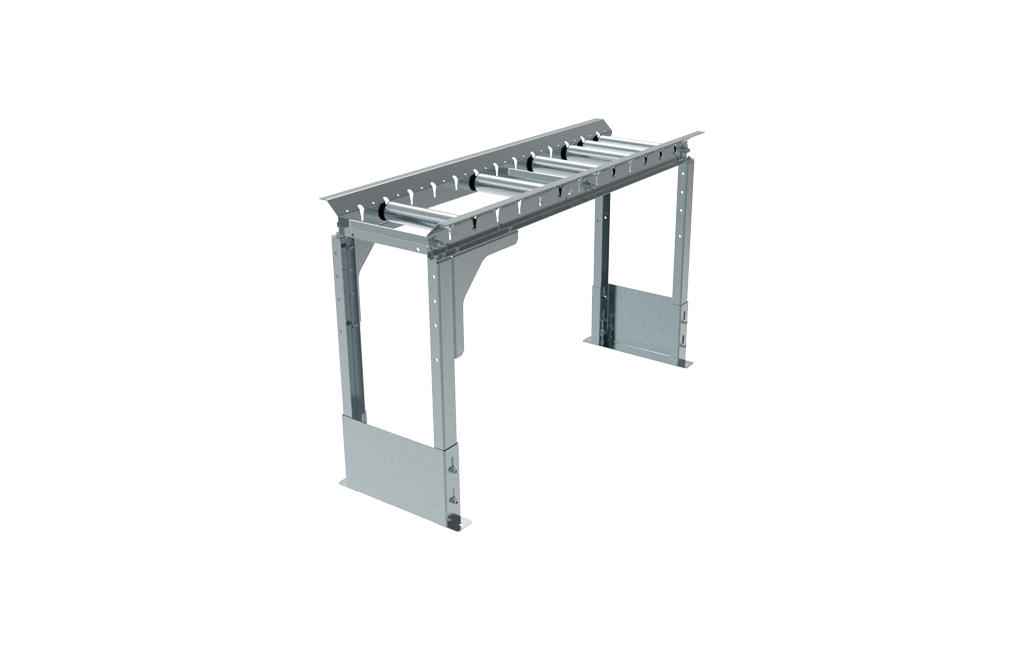

The D-System conveyor from PILOUS is a heavy-duty material handling system designed to support and transport metal workpieces during cutting operations. It improves workflow efficiency, ensures stable positioning of materials and facilitates safer handling of long or heavy metal sections in industrial environments.

Request a Quote
D-System-Conveyors-main

more about the
D System

Medium heavy roller conveyors

  • A massive, extremely stable and original modular system allows for variability in roller placement and very easy installation of the accessories – manual or digital measuring devices, metal sheet covers between individual rollers, material chute, additional rollers including plastic rollers, material container and the coolant tank.
  • Extreme stability and service life is guaranteed by the 3 mm thick galvanized metal sheets that cover all parts of the device.
  • The conveyors are manufactured with roller width 200, 300 or 400 mm. Individual modules are 2 and 3 m long and can be mutually connected.
  • To achieve maximum stability, the 2 m conveyor is equipped with one leg and the 3 m conveyor with two legs. The utmost legs are additionally secured with a pair of corner reinforcements.
  • There are necessary connecting and interconnecting pieces available that allow for installation to a whole range of machines.
  • The massive pull-out system allows for adjustable leg height ranging from 865 mm to 935 mm.
Measured length [mm] Total length [mm]
DO 200, 300, 400 / 2m 1700 1980
DO 200, 300, 400 / 3m 2700 2980
DO 200, 300, 400 / 4m 3700 3955
DO 200, 300, 400 / 5m 4700 4955
DO 200, 300, 400 / 6m 5700 5955

Accessories for the D conveyors

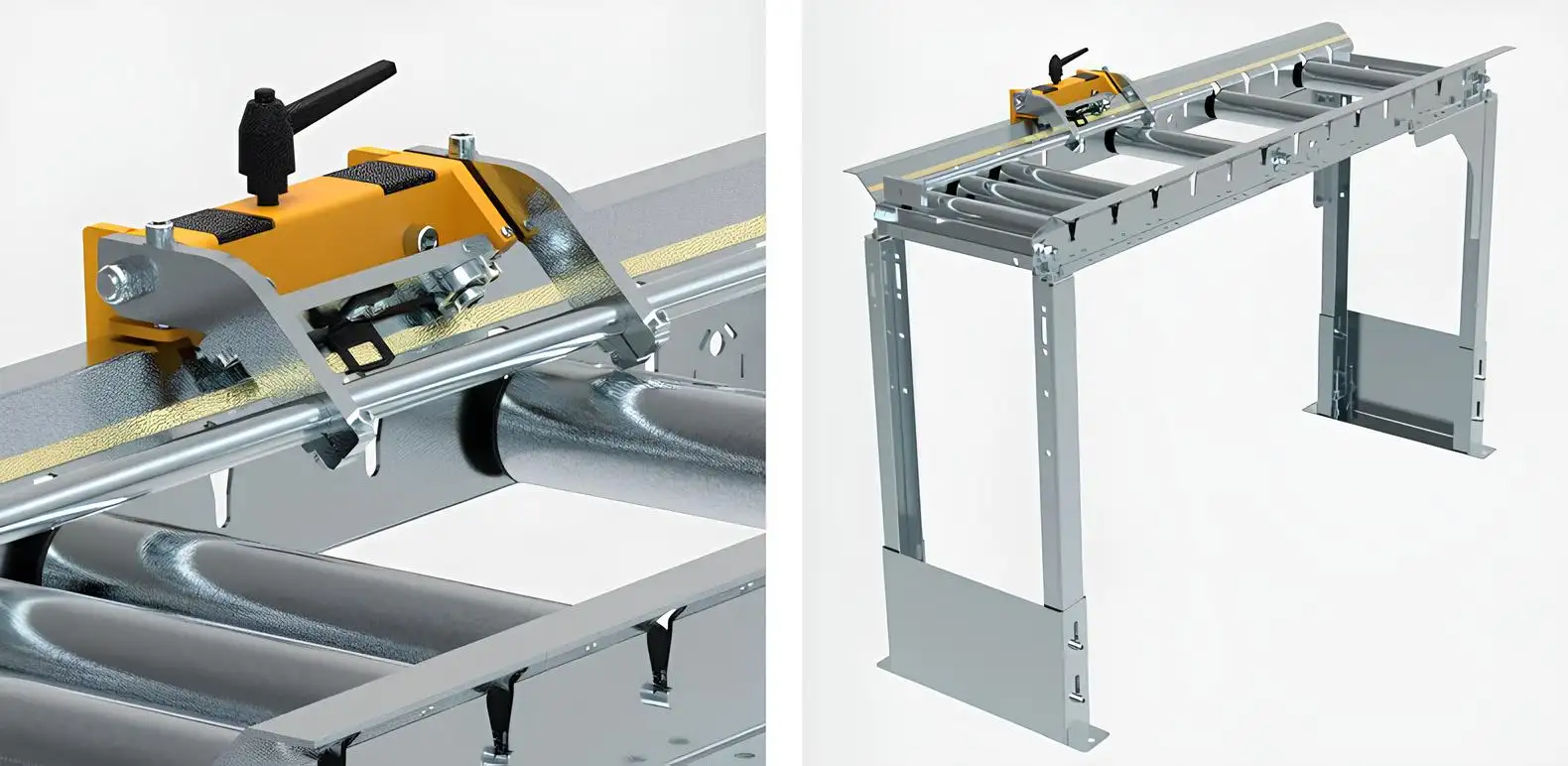

DO – Manual measuring device

DO – Manual measuring device

  • A simple and effective measuring of the required material length.
  • Can be installed on all types of D conveyors.
  • You can set the required length manually on an analogue (millimeter) scale with a simple arrestment.
  • Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
Measured length [mm] Total length [mm]
DOD 200, 300, 400 / 2m 1700 1980
DOD 200, 300, 400 / 3m 2700 2980
DOD 200, 300, 400 / 4m 3700 3955
DOD 200, 300, 400 / 5m 4700 4955
DOD 200, 300, 400 / 6m 5700 5955

(includes the slide stop system and analogue scale of the appropriate length, not the conveyor itself)

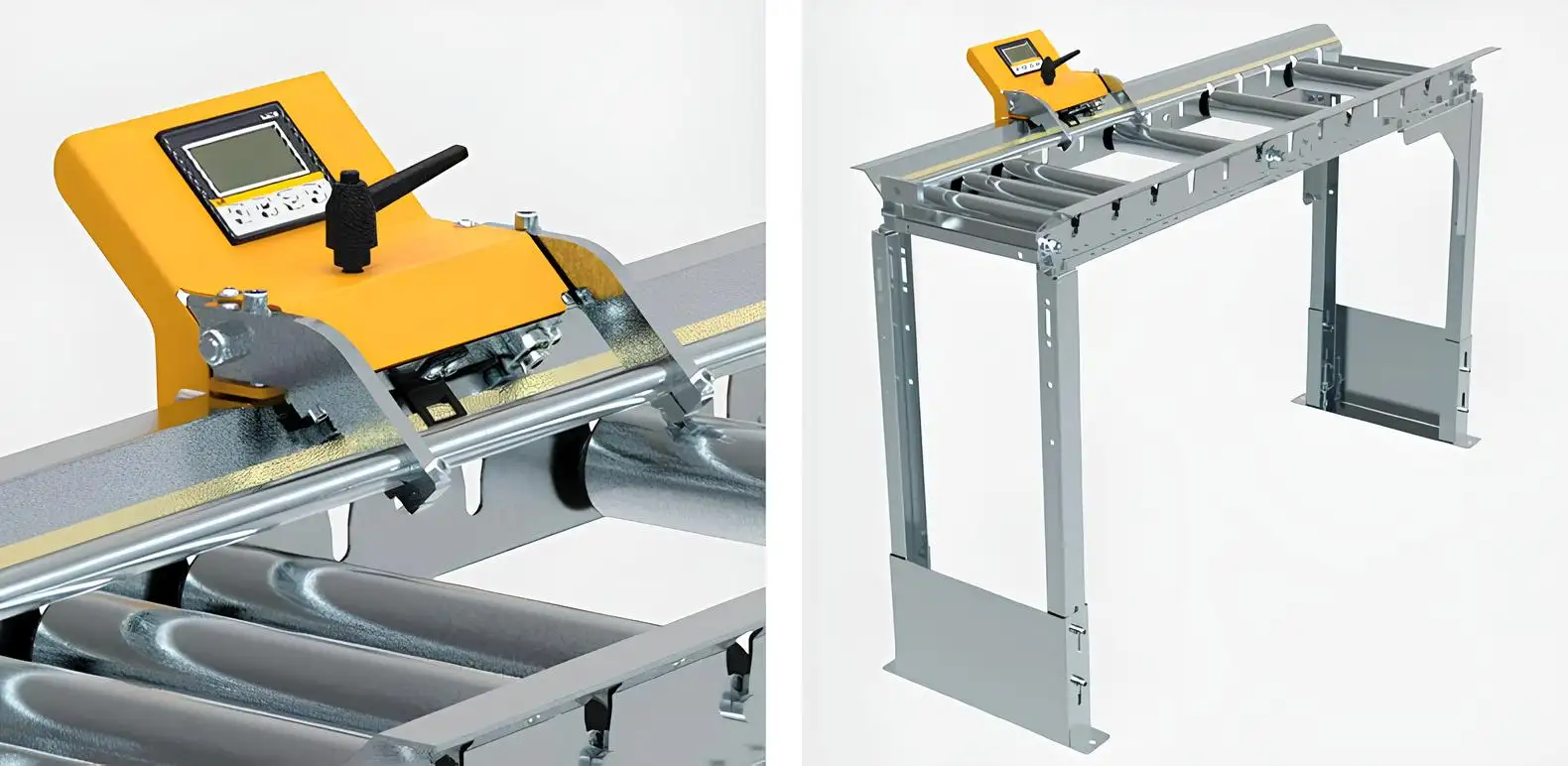

DOD – Digital measuring device

DOD – Digital measuring device

  • A simple and effective measuring of the required material length.
  • Can be installed on all types of D conveyors.
  • You can set the required length manually on an analogue (millimeter) scale with a simple arrestment.
  • Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
Roller width Number of legs Number of rollers Roller diameter Total length [mm] Load-carrying capacity [kg/1m] Max. number of rollers
D 200 / 2m 200 1 6 60 1980 300 17
D 300 / 2m 300 1 6 60 1980 300 17
D 400 / 2m 400 1 6 60 1980 300 17
D 200 / 3m 200 2 10 60 2980 300 27
D 300 / 3m 300 2 10 60 2980 300 27
D 400 / 3m 400 2 10 60 2980 300 27

(includes the slide stop system with digital measuring device and a magnetic tape of an appropriate length, not the conveyor itself)

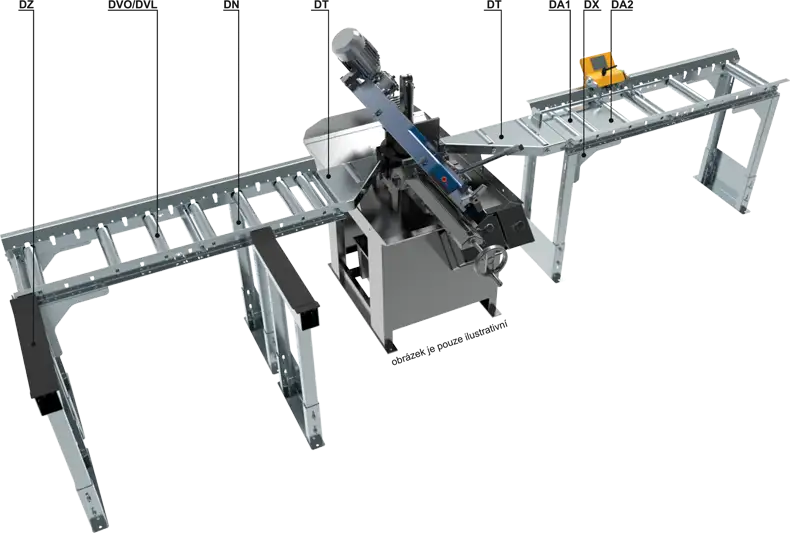

Accessories for conveyors of the D System

Accessories for conveyors of the D System

DVO – additional steel rollers for increased carrying capacity
Load-carrying capacity of the roller 100 kg.

DVL – lightweight plastic rollers
Prevent damage to the surface of the material. Load-carrying capacity of the roller 10 kg.

DA1 – metal sheet cover between individual rollers
Prevents short workpieces from falling through. Length 100 mm. (according to the layout of the rollers)

DA2 – metal sheet cover between individual rollers
Prevents short workpieces from falling through. Length 200 mm. (according to the layout of the rollers)

DK – tiltable, detachable material chute
Intended to be placed behind the cut when cutting short segments in series.

DZ – material magazine for easier handling
Width 100 mm, length 670 mm, carrying lenght 470 mm, load 2000 kg.

DN – additional conveyor leg

DX – additional corner reinforcement for detached conveyors

DT – intermediate piece for connecting of the conveyors to the individual machines

MR 280 – Height-adjustable leg with roller

  • Adjus adjustable leg height ranging from 800 mm to 1019 mm.
  • MR 280 is designed for light use.
  • Load-carrying capacity is 45 kg.
