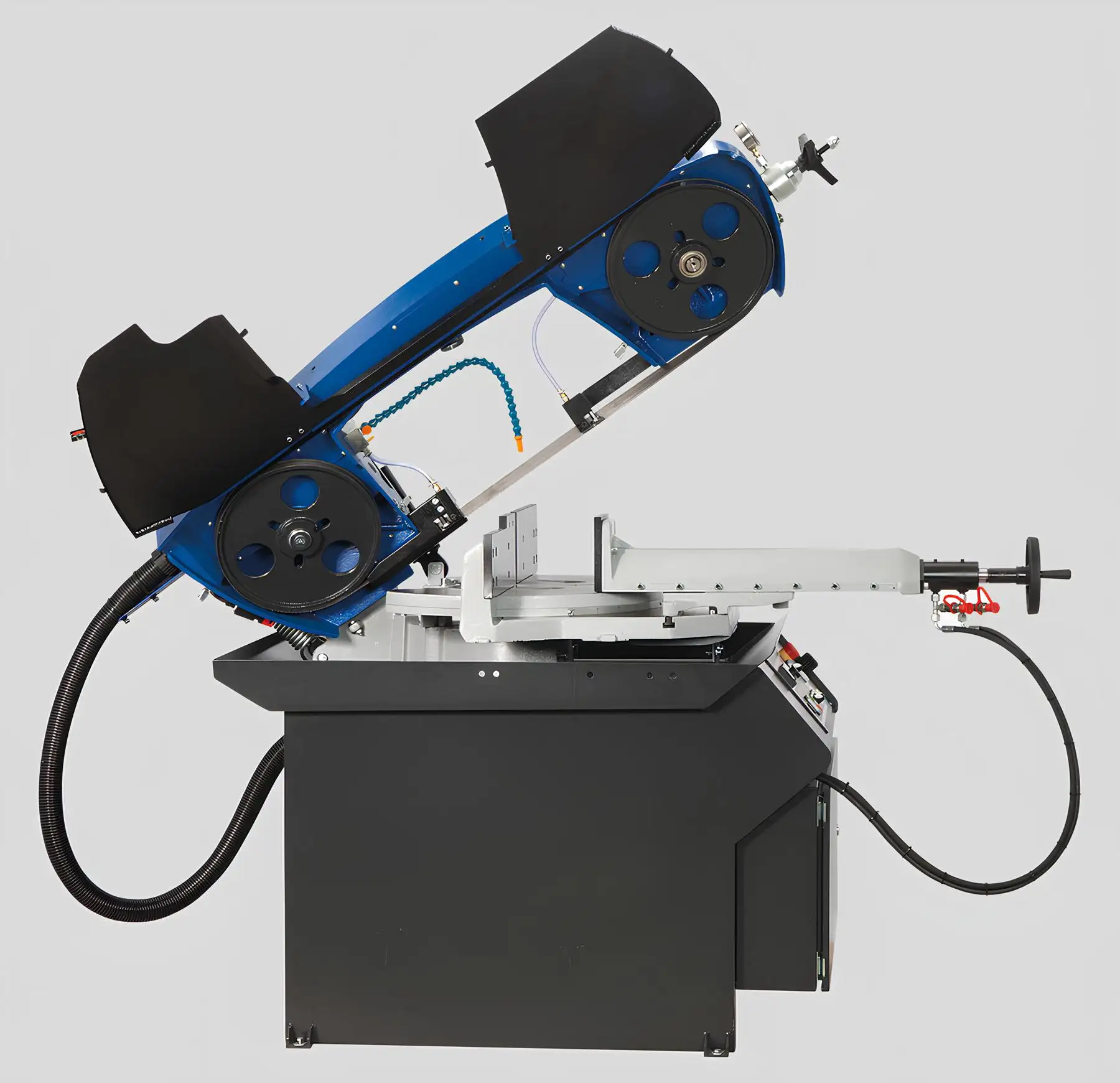

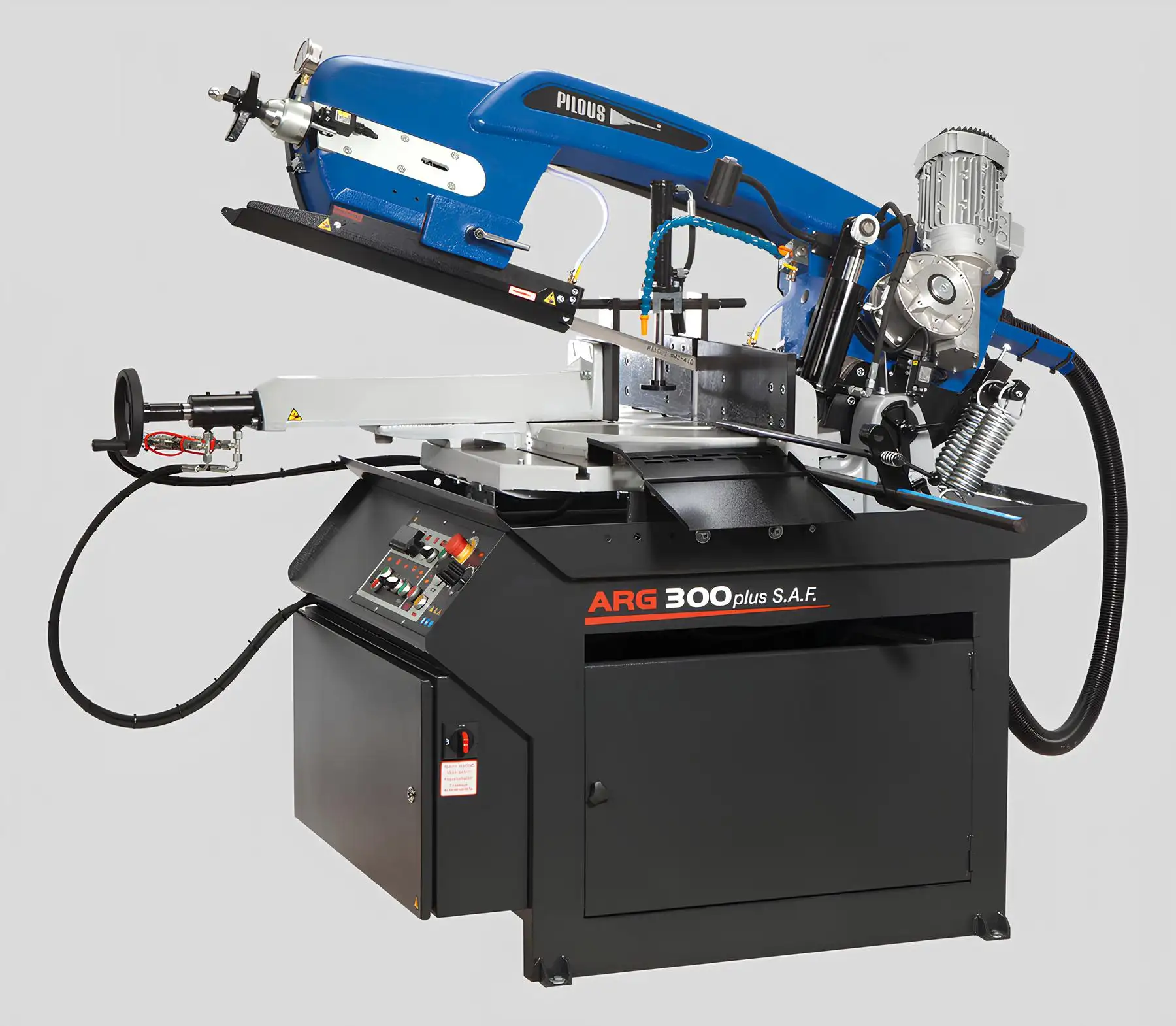

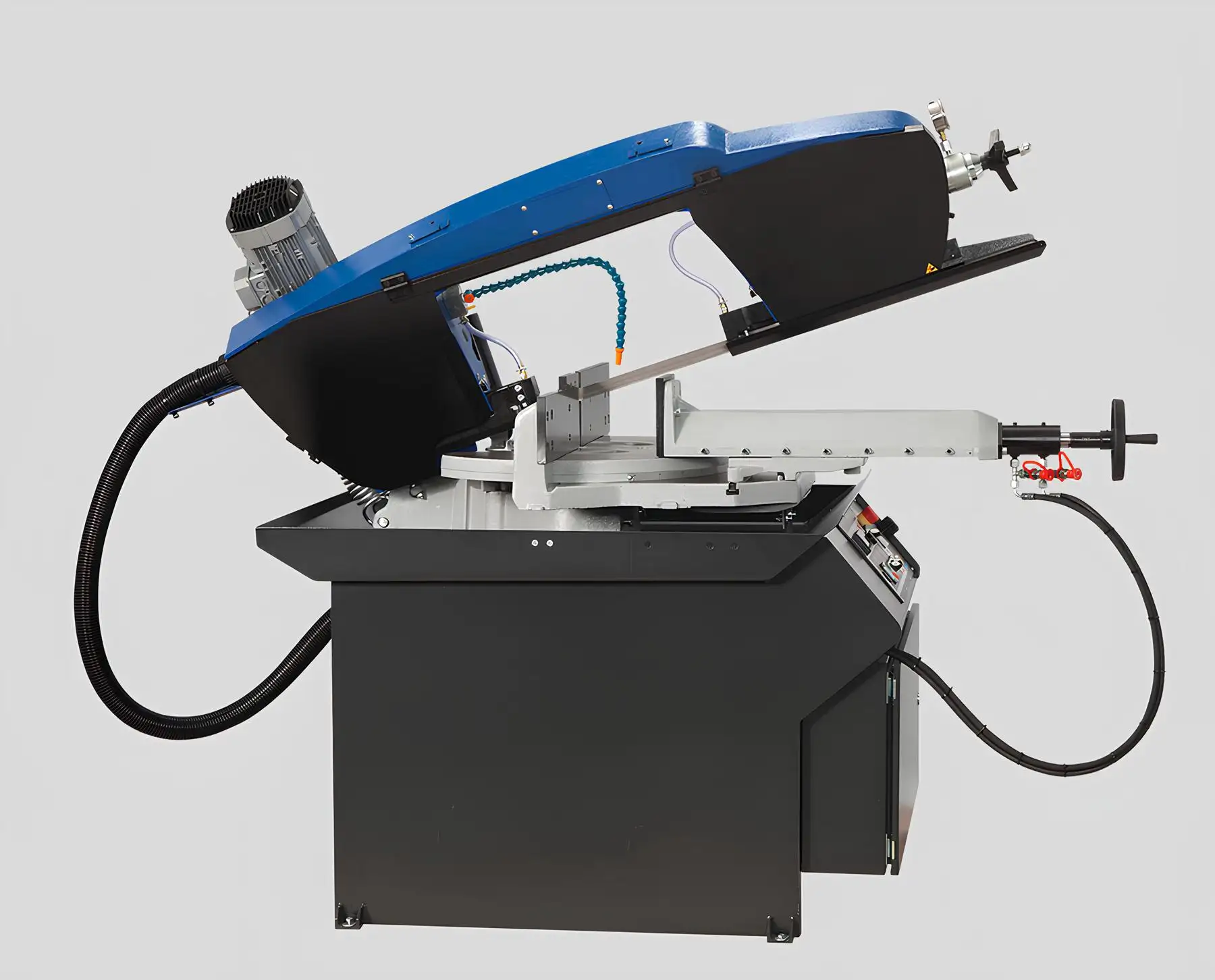

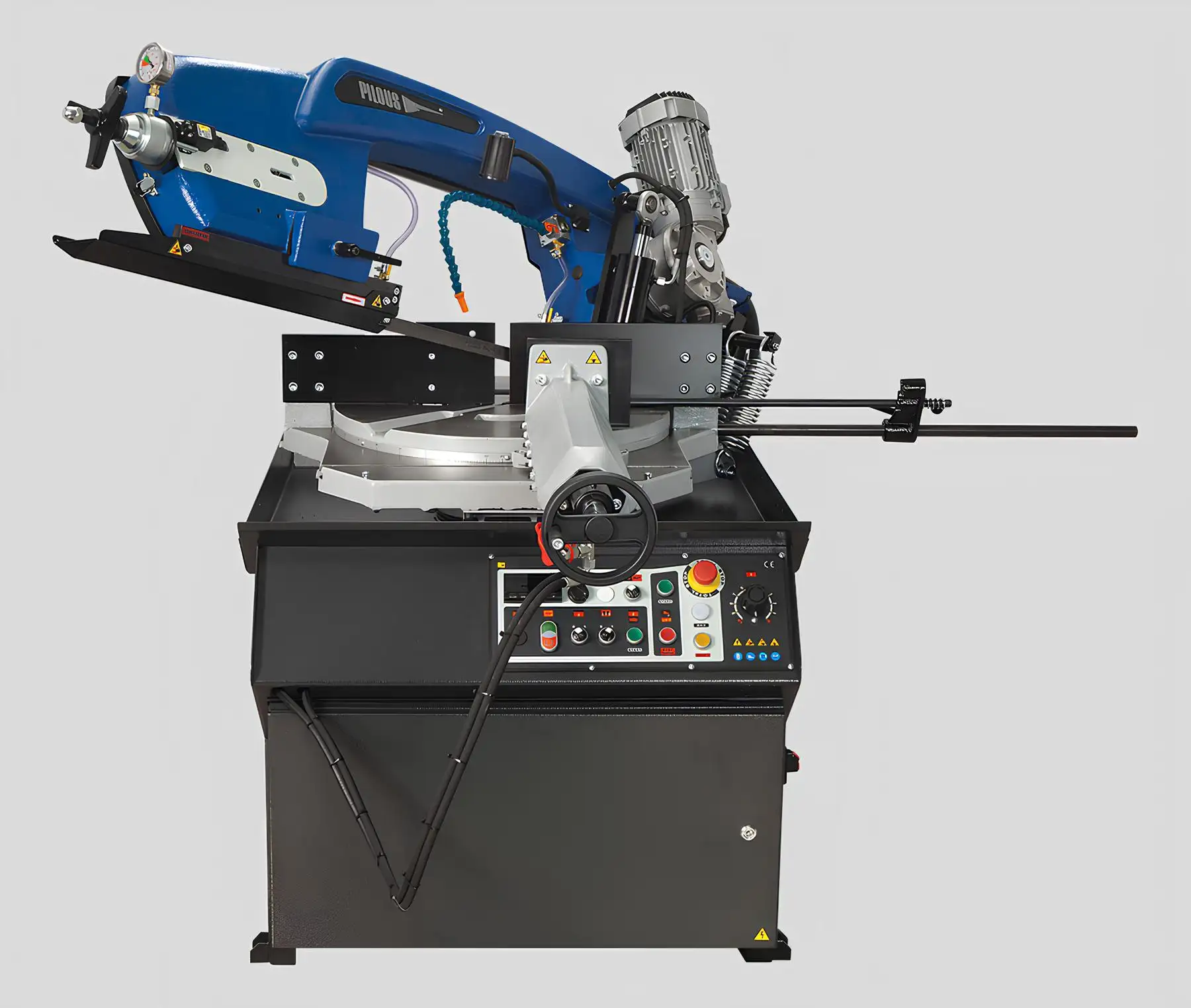

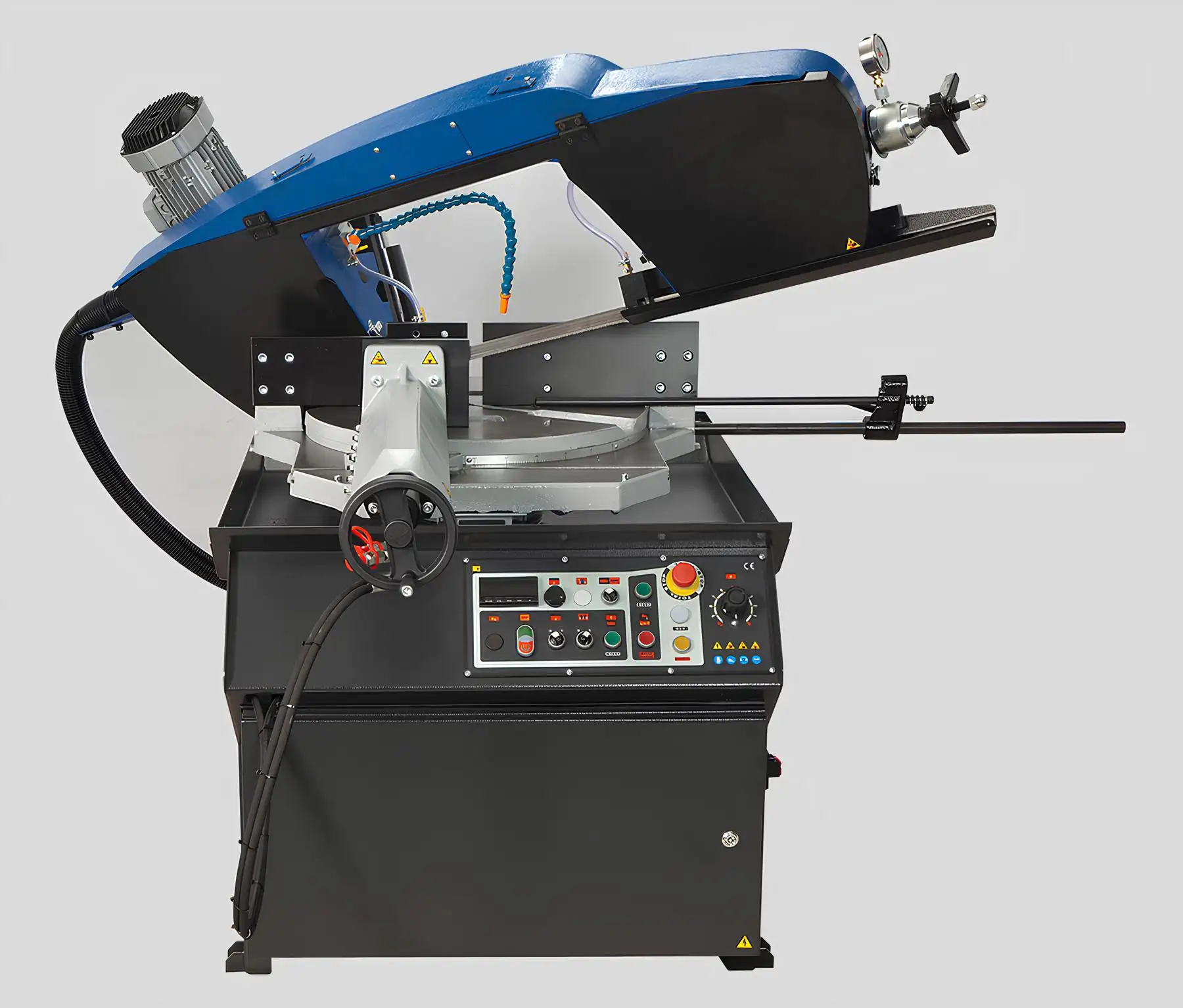

ARG 300 plus S.A.F.

Manufactured by PILOUS, the ARG 300 plus S.A.F. is a hydraulic semi-automatic band saw engineered for demanding industrial production and professional workshop environments. Developed from the legendary ARG 300 series, this upgraded model integrates a completely redesigned closed-section cast-iron arm and a high-performance hydraulic cutting cycle.

Designed for higher productivity and precision in repetitive operations, the ARG 300 plus S.A.F. combines structural rigidity, bilateral mitre flexibility and frequency-controlled cutting optimization.

Overview

At the core of the machine lies a newly engineered hollow closed-section cast-iron arm. This design provides:

• Exceptional structural stiffness
• Maximum cutting accuracy
• Reduced vibration
• Extended saw band lifespan

All electrical wiring and coolant lines are concealed within the arm structure, protecting critical components from mechanical damage.

The high-performance industrial hydraulic unit enables a fully integrated cutting cycle. By pressing a single switch, the machine performs:

• Material clamping
• Band and coolant activation
• Hydraulically controlled feed into cut
• Automatic band and coolant stop
• Arm uplift to preset position
• Vice unclamping

This significantly increases efficiency in series production and heavy material cutting.

Manual mode allows independent control of all functions when required.

Key points

• Hydraulic semi-automatic cutting cycle
• Redesigned hollow cast-iron arm for maximum rigidity
• Hydraulically controlled band feed
• Frequency-controlled blade speed: 15–90 m/min
• Bilateral mitre adjustment: 60° right / 45° left
• Industrial band size 27 × 0.9 mm

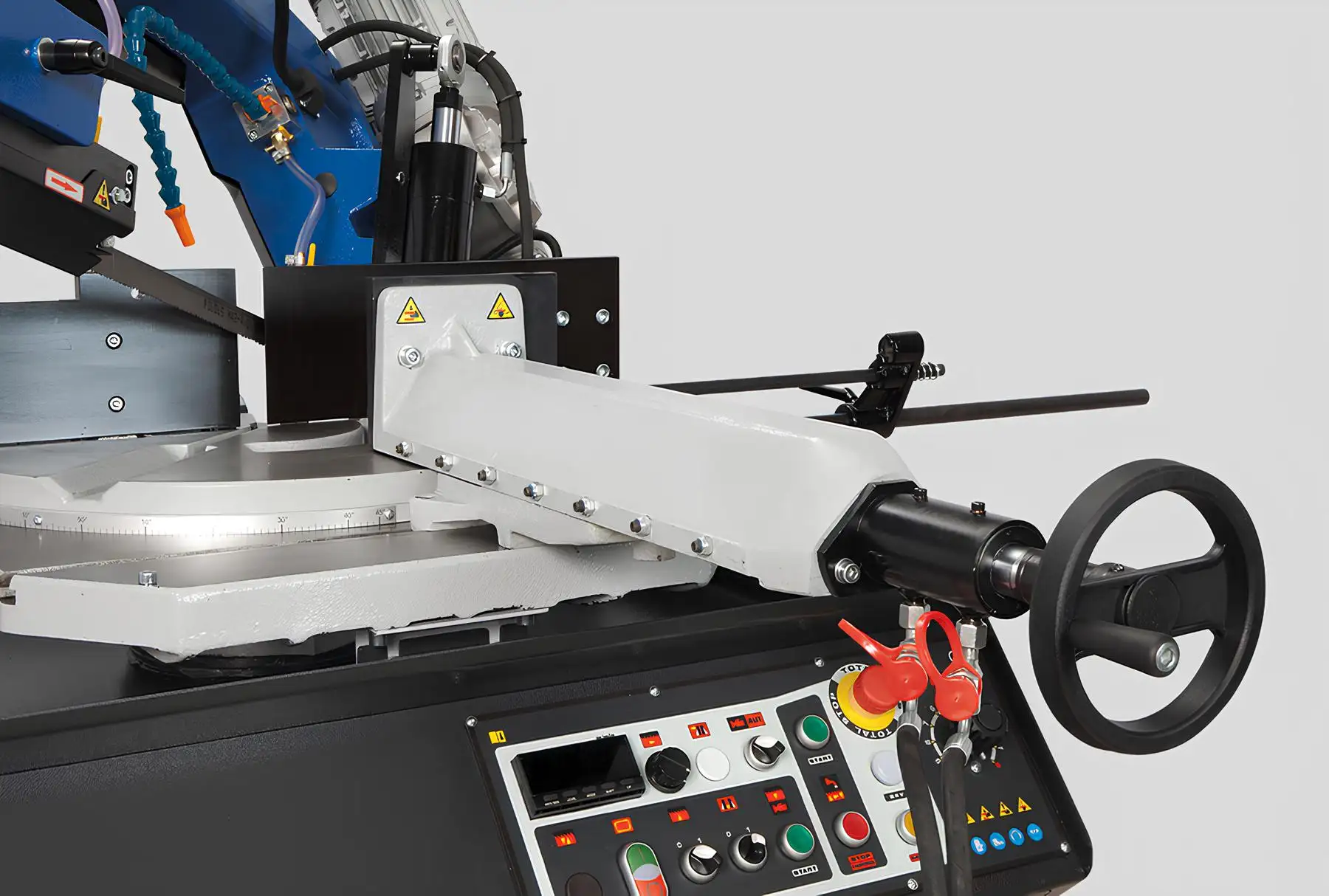

• Massive quick-clamping vice with adjustable pressure
• Rotating turntable aligned with saw band
• Large stable base with reinforced arm turning system
• Integrated cooling system with independent regulation
• 500 mm hinged material stop included

The plus S.A.F. configuration enhances productivity while maintaining mechanical durability.

Technical advantages

Fully integrated hydraulic performance

The industrial hydraulic system ensures consistent cutting pressure and optimized feed control. Vice pressure can be adjusted to match different material types and cross-sections.

This configuration:

• Reduces operator intervention
• Improves cycle efficiency
• Increases repeatability
• Enhances performance when cutting solid and high-quality materials

Frequency-controlled cutting optimization

Continuous blade speed regulation between 15 and 90 m/min allows precise adaptation to:

• Carbon steel
• Stainless steel
• Tool steel
• Structural profiles
• Solid heavy sections

Optimized speed control contributes directly to improved cut quality and extended band service life.

Structural stability

The robust framework composed of grey cast iron castings ensures excellent vibration absorption.

The massive arm turning system and large loading surfaces guarantee stability even under heavy cutting conditions.

Large-diameter running wheels and precise three-side hardmetal guiding ensure accurate tracking and long-term mechanical reliability.

Safety and control

Automatic blade tension monitoring ensures immediate shutdown in case of band breakage.

Ergonomically placed electrical and hydraulic controls simplify operation.

The integrated cooling system with high-performance pump allows independent flow regulation on both guiding heads.

Applications

The ARG 300 plus S.A.F. is ideal for:

• Continuous production facilities
• Heavy-duty fabrication workshops
• Structural steel cutting
• Serial cutting of solid materials
• Stainless and tool steel processing
• Medium to large production batches

It is particularly suitable for operations requiring semi-automation and enhanced cutting control.

Why choose the ARG 300 plus S.A.F.

If your operation requires:

• Hydraulic semi-automation
• Bilateral mitre flexibility
• Frequency-controlled cutting precision
• High structural rigidity
• Improved productivity in repetitive cutting
• Industrial-grade durability

The ARG 300 plus S.A.F. delivers a powerful balance between automation and mechanical strength.

Within ANATECO’s portfolio, this model positions as a premium semi-automatic industrial band saw for professional metalworking facilities demanding performance and reliability.

Accessories

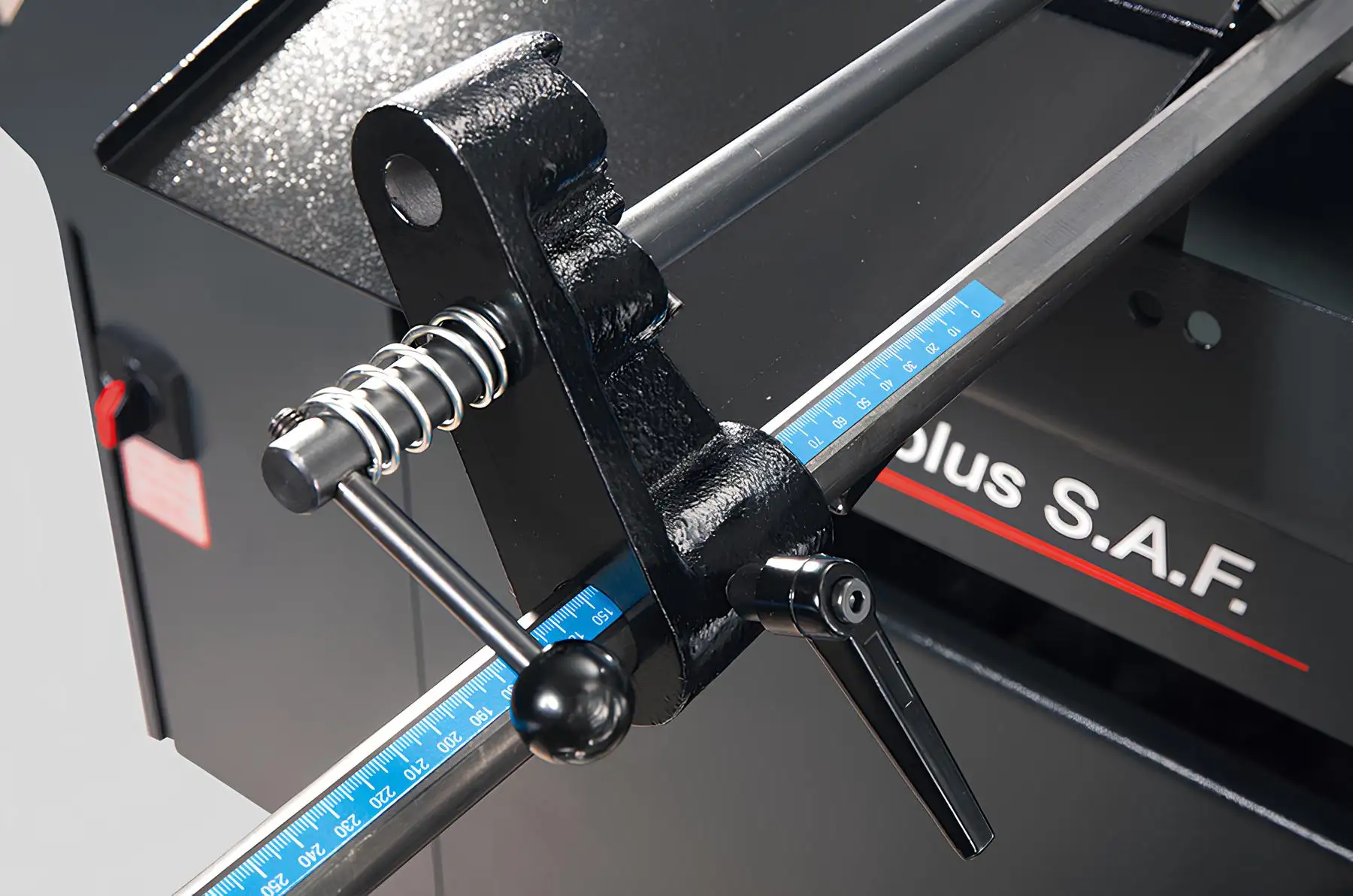

Workpiece stop – Standard equipment

Robust stop with a 500mm scale for setting the required length of the material to be cut.

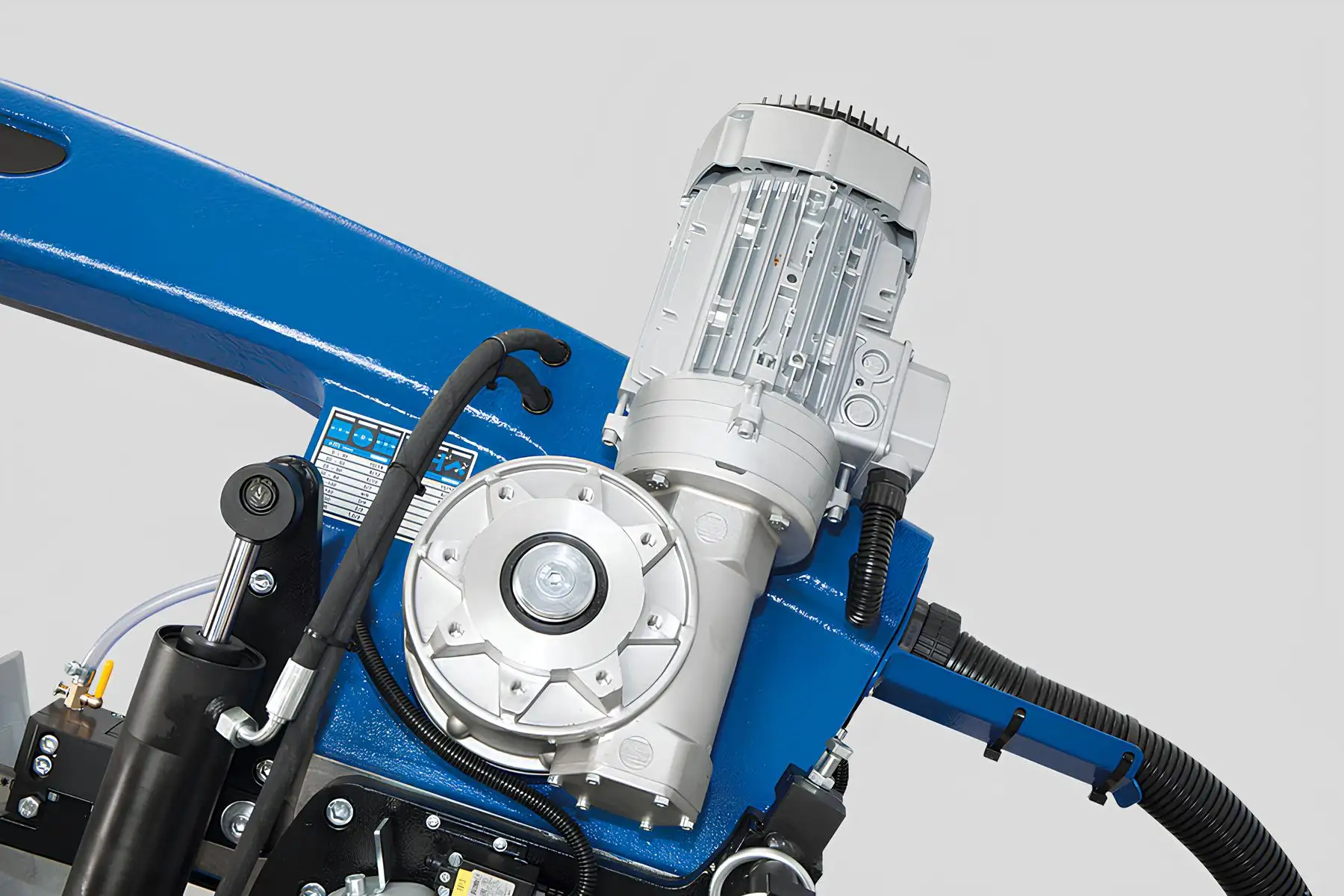

Frequency converter – Standard equipment

Enables continuous blade speed regulation between 15–90 m/min. and thus setting the optimum cutting conditions for the given material.

Hydraulic pressure device HVP

Used to clamp bundles of material to be cut. Ensures reliable clamping by hydraulically controlled vertical contact pressure working within the machine’s cycle.

Material chute KL

Continuously joins the vice behind the cut and allows for easy slide of cut pieces into a container when cutting larger series. The chute construction consisting of 2 parts prevents leakage of the coolant.

Halogen lamp LA

Provides good lighting of the workplace of the machine. An invaluable tool especially when the lighting at the workplace is insufficient.

Oil mist lubrication MM

Creates an oil mist that is sprayed onto the cutting edge. It replaces the use of a classic coolant, especially when cutting sections during which leakages may occur. Possibility of using organic oils.

Laser alignment LS

High-quality industrial laser projects the cutting line on the material to be cut. Makes the setting of the required material length simpler, faster and more accurate.

Cleaning brush KDM

Steel cleaning brush, driven by driving wheel. Used to remove chips from the saw band behind the cut.

Saw band tension indicator CD

Ensures accurate tensioning of the saw band to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw band is essential for its service life and cutting accuracy.

Rinse spray gun OPL

For cleaning working space of the machine.

Electronic arm uplift height setting

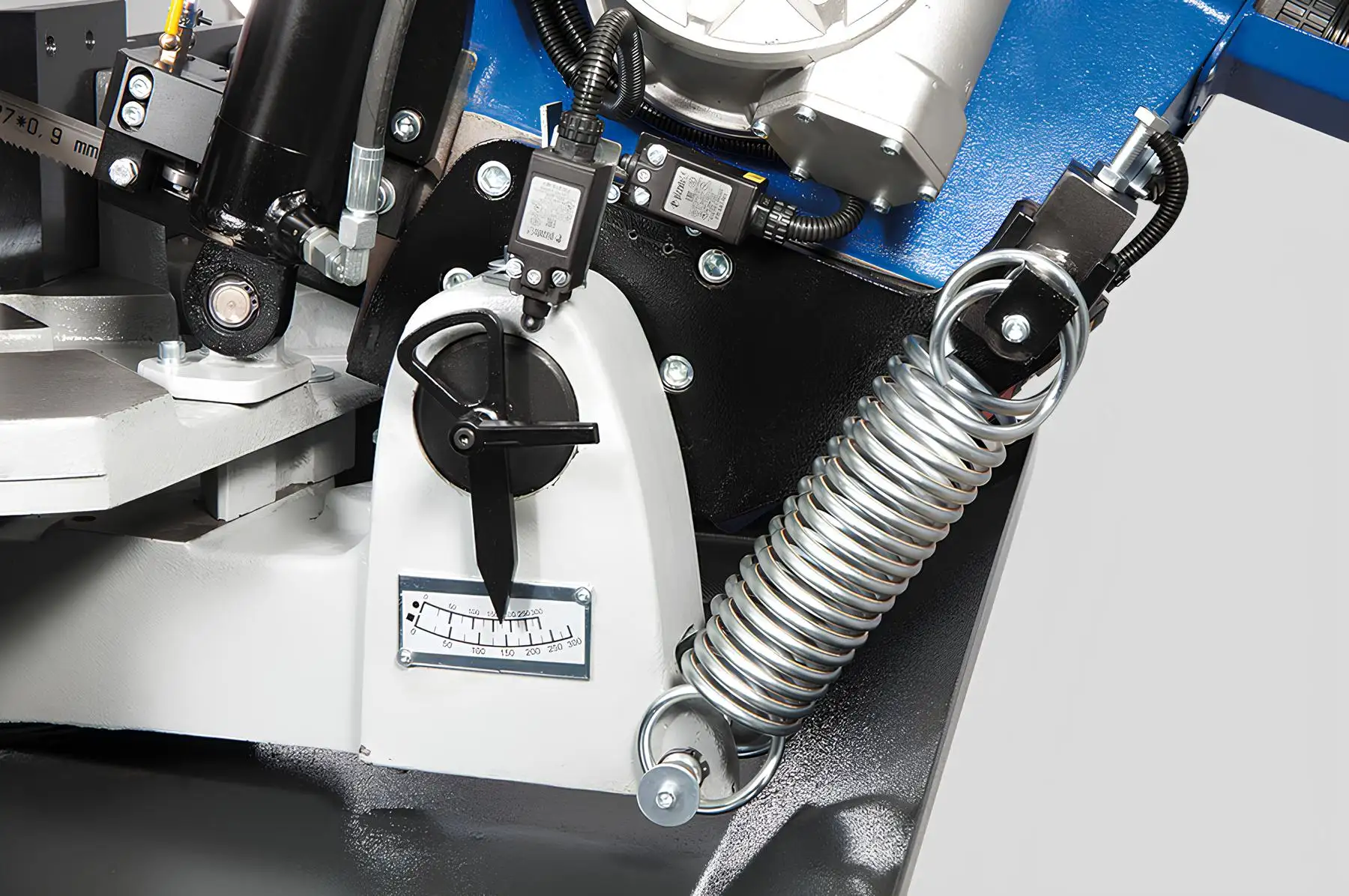

On a standard machine, the arm uplift height is adjusted manually on a scale located on the machine’s joint. This version is fitted with a sensor on the machine’s joint. If you set the desired arm uplift height before serial cutting in manual mode, the set arm uplift height is stored in the machine memory after switching the machine to semi-automatic mode. After the workpiece is cut, the arm is automatically raised to the set arm uplift height.

Stainless steel container and chip separator

The robust stainless steel container is an optional accessory enabling the machine to be complemented with a chip separator. The chip separator is a galvanized, finely perforated container for efficient collection of sawdust that has passed through a sieve in the base. This container is easily removable when filled and is easy to clean outside the machine.

Stainless steel container and magnetic chip separator

The robust stainless steel container is an extra accessory enabling the machine to be complemented with a magnetic chip separator. For particularly fine chips that have passed through the sieves in the saw, a highly efficient magnetic separator is used. It saves time for cleaning and disassembling the cooling path and extends the service life of the cooling emulsion. This device is easily removable and easy to clean outside the machine by simply pulling the magnetic bars out of the housing.

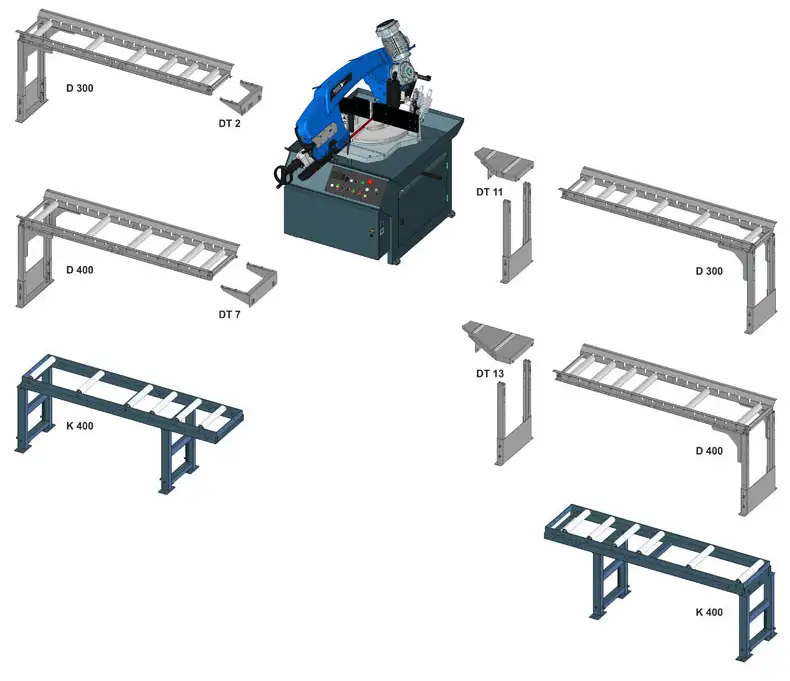

Conveyors
