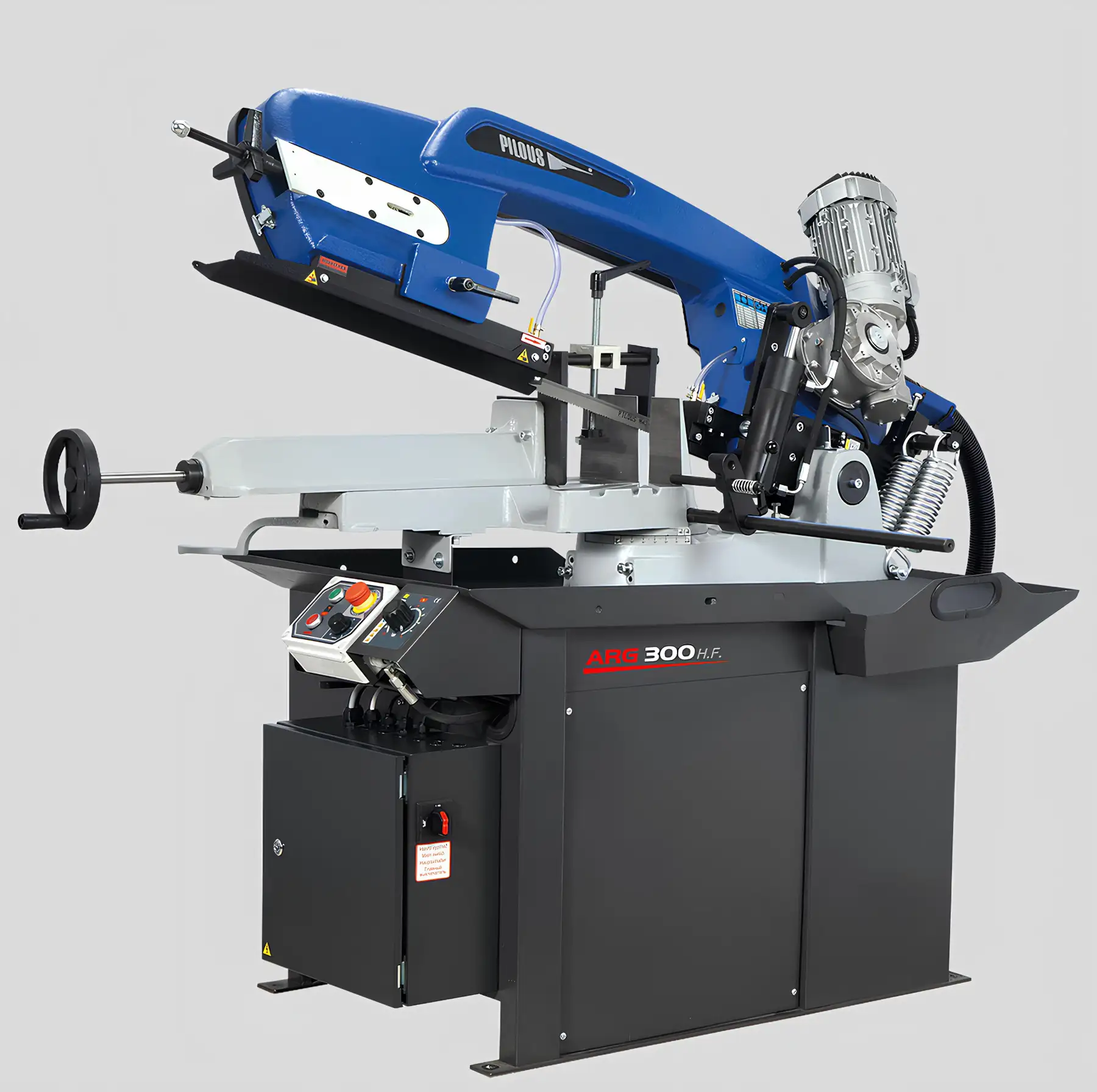

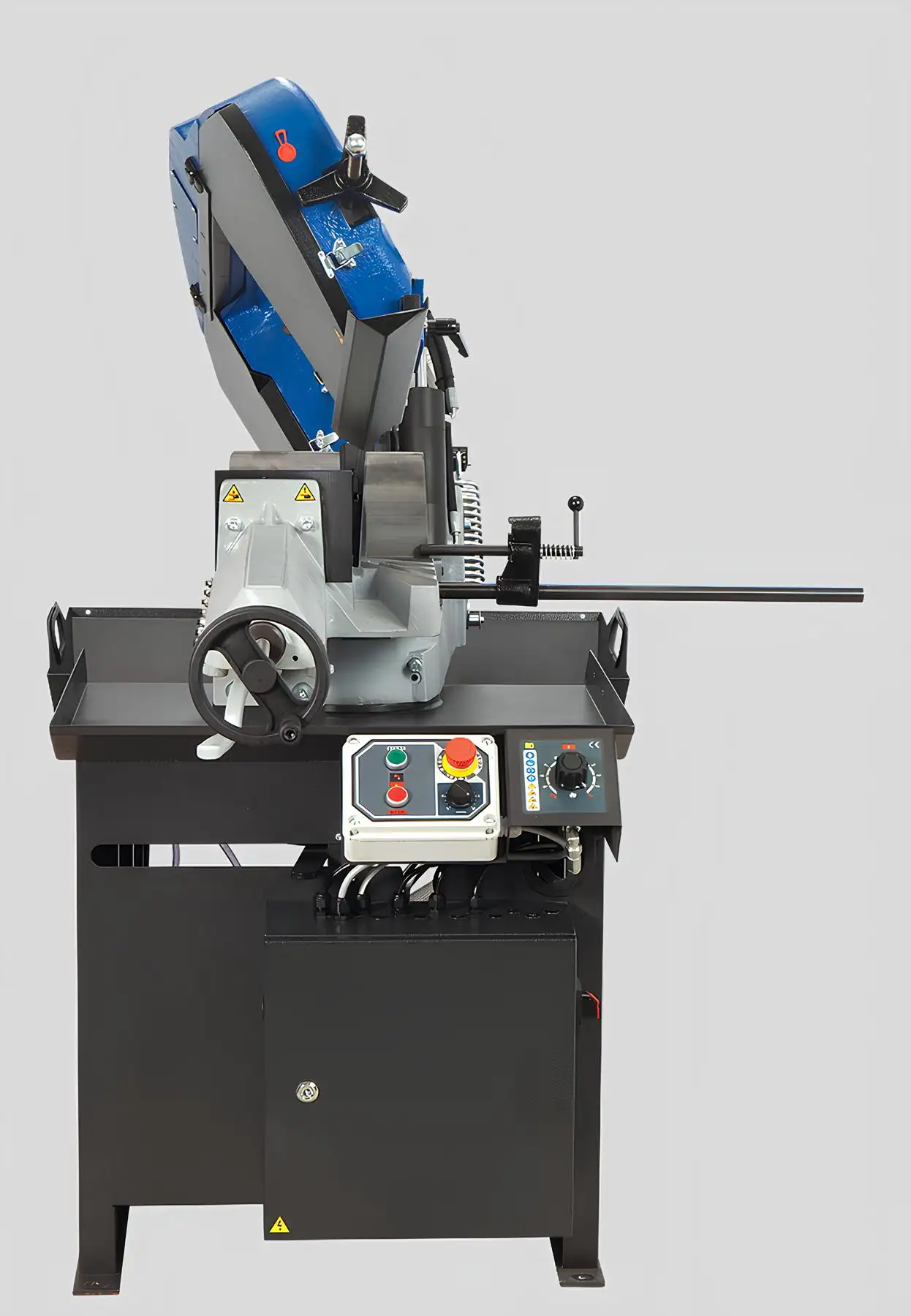

ARG 300 H.F.

Manufactured by PILOUS, the ARG 300 H.F. is a hydraulic-gravitation band saw developed from the legendary ARG 300 series. Featuring a completely redesigned cast-iron arm and integrated frequency-controlled blade speed, this model delivers structural rigidity, improved operator comfort and enhanced cutting efficiency for professional metalworking environments.

Designed for workshops and continuous production plants, the ARG 300 H.F. combines gravity-fed simplicity with hydraulic assistance and modern speed optimization.

Overview

The upgraded saw arm is engineered as a hollow closed-section casting along all load-bearing points. This advanced structural concept ensures:

• Outstanding system stiffness
• Maximum cutting accuracy
• Reduced vibration
• Extended saw blade lifespan

Electrical wiring and coolant distribution are fully concealed within the arm structure, protecting them from damage and contamination.

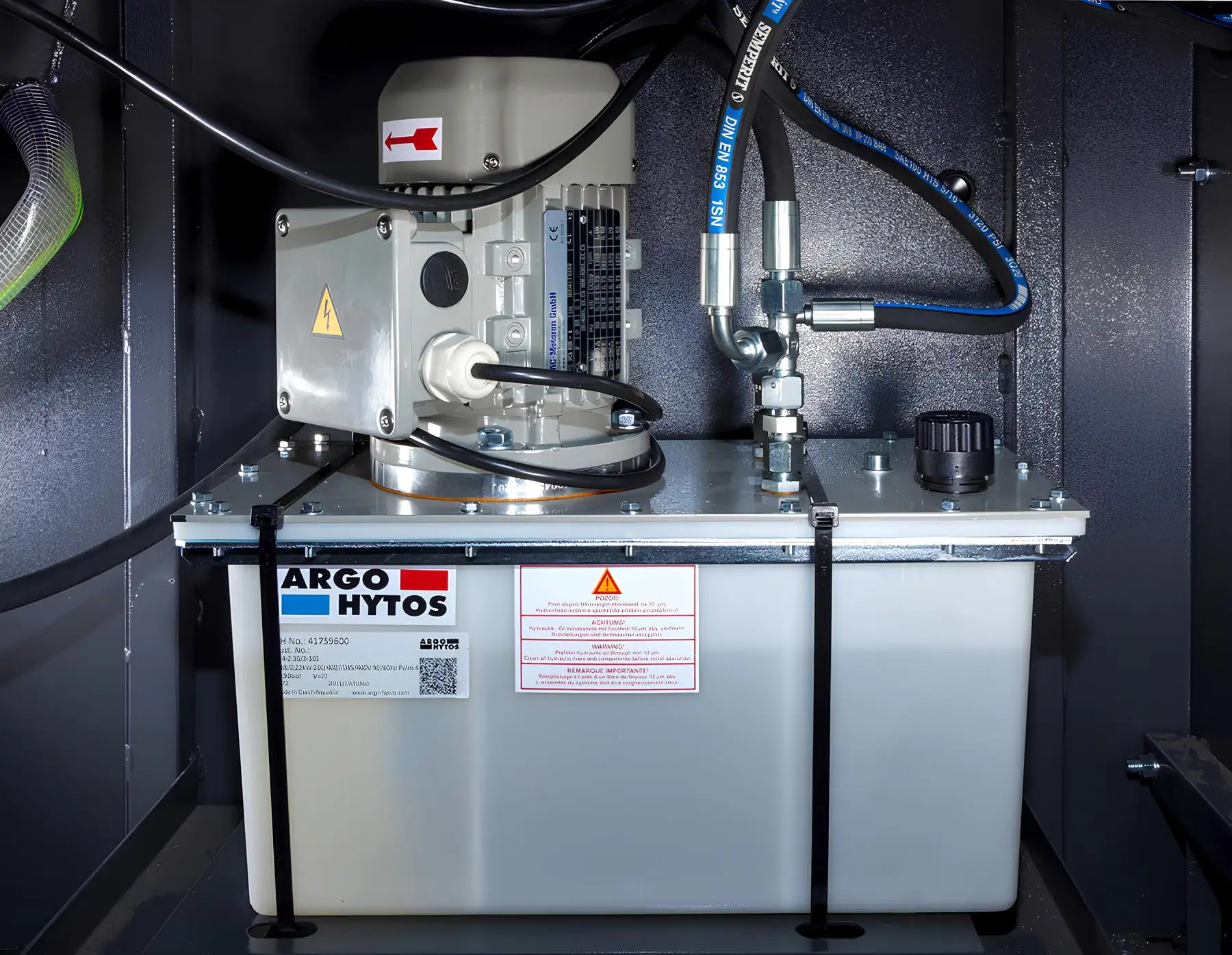

The hydraulic unit enables automatic uplift of the saw arm after each completed cut. Compared to manual uplift systems, this significantly reduces operator fatigue, especially in repetitive cutting operations or medium production batches.

Feed into the cut remains gravity-based, with continuous regulation through an oil damper butterfly valve.

Key points

• Hydraulic automatic arm uplift after cutting
• Closed-section hollow cast-iron arm design
• Gravity-controlled feed with fine oil damper adjustment
• Frequency-controlled blade speed: 15–90 m/min

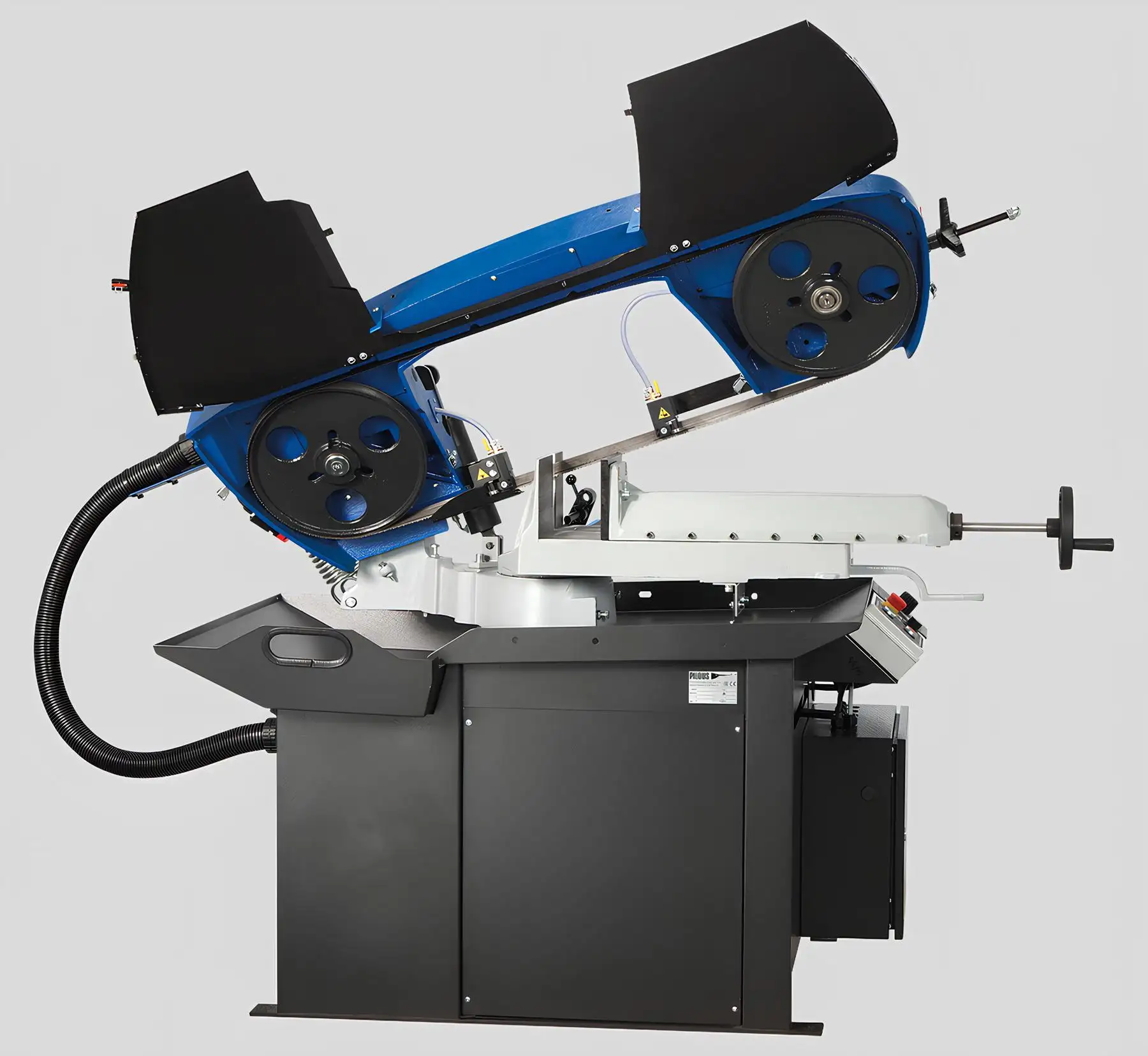

• Mitre cutting range 90°–60°
• Industrial band size 27 × 0.9 mm

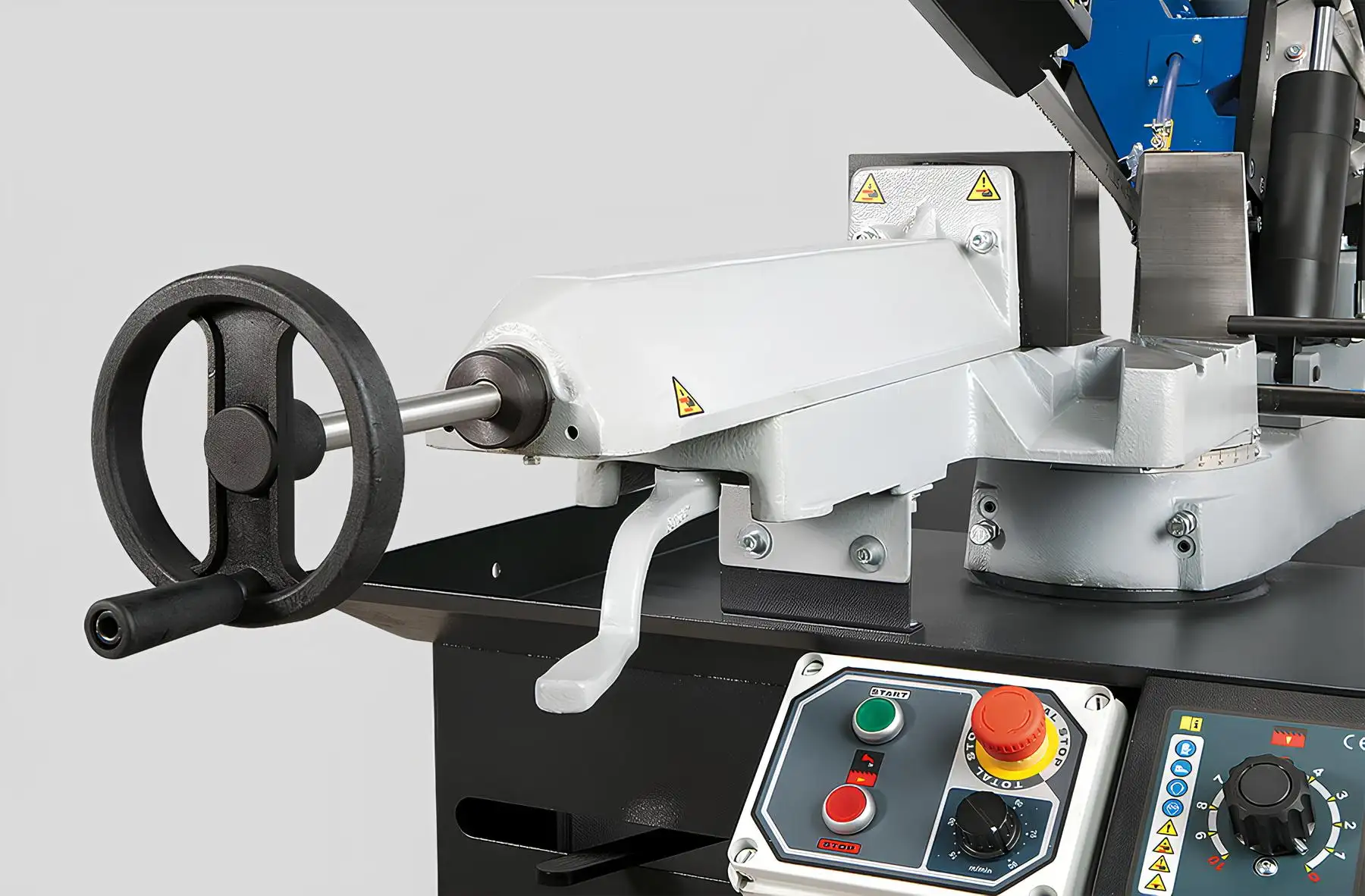

• Massive quick-clamping vice system
• Large ergonomic base with removable chip container
• Integrated cooling system with adjustable flow
• Automatic blade tension and break monitoring
• 500 mm hinged material stop included

The H.F. version enhances productivity through hydraulic assistance and variable speed control.

Technical advantages

Structural rigidity

The robust machine framework is composed of grey cast iron castings, ensuring superior vibration absorption and dimensional stability.

The massive arm turning system and large loading surfaces provide exceptional stability even when cutting heavy workpieces.

Large-diameter running wheels and precise three-side hardmetal blade guiding guarantee accurate band tracking and long blade life.

Overdimensioned bearings and rotary components extend the overall lifespan of the machine.

Hydraulic efficiency

The hydraulic uplift system automatically raises the arm to the preset position after the cut is completed. Uplift height can be adjusted according to material size, optimizing workflow and cycle efficiency.

This feature significantly improves operational comfort in repetitive or larger cutting series.

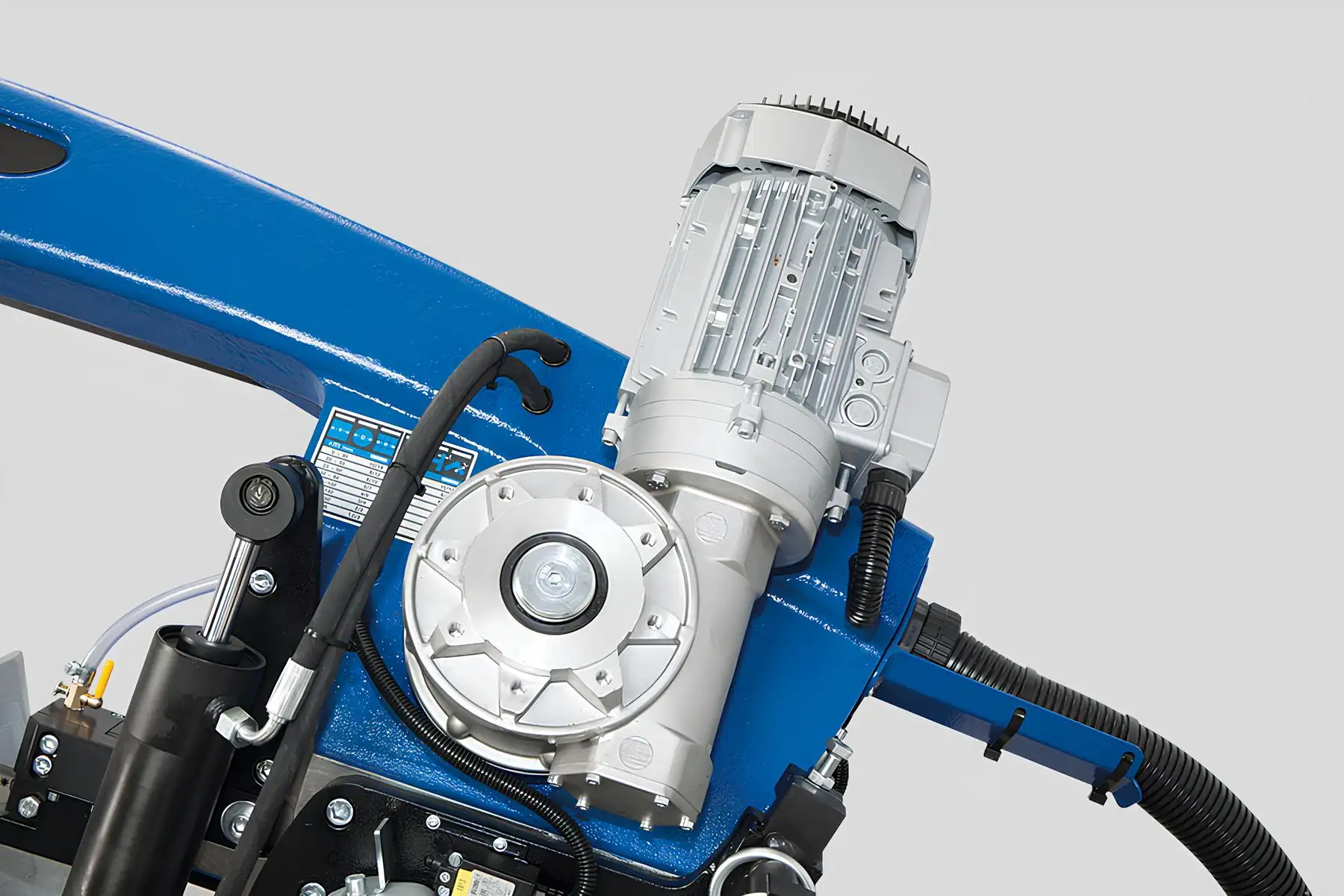

Frequency-controlled cutting optimization

The integrated frequency converter allows continuous blade speed regulation between 15 and 90 m/min. This enables optimal cutting parameters for:

• Carbon steel
• Stainless steel
• Tool steel
• Structural profiles
• Solid materials

Proper speed adjustment enhances cut quality, reduces wear and extends blade service life.

Cooling and safety

The complete cooling system includes a high-performance pump with independent flow regulation on both guiding heads.

Automatic blade tension monitoring ensures safe operation and immediate shutdown in case of blade breakage.

Applications

The ARG 300 H.F. is suitable for:

• Metal fabrication workshops
• Continuous production environments
• Maintenance departments
• Structural steel cutting
• Stainless and tool steel processing
• Medium-batch industrial operations

It is particularly well suited for facilities requiring improved productivity without transitioning to CNC automation.

Why choose the ARG 300 H.F.

If your operation requires:

• Hydraulic assistance for improved workflow
• Frequency-controlled cutting precision
• Structural rigidity for heavy-duty performance
• Long blade service life
• Reliable industrial durability

The ARG 300 H.F. offers a balanced hydraulic-gravitation solution with enhanced efficiency and control.

Within ANATECO’s portfolio, this model is positioned as a premium hydraulic workshop bandsaw designed for professional environments demanding both precision and operator comfort.

Accessories

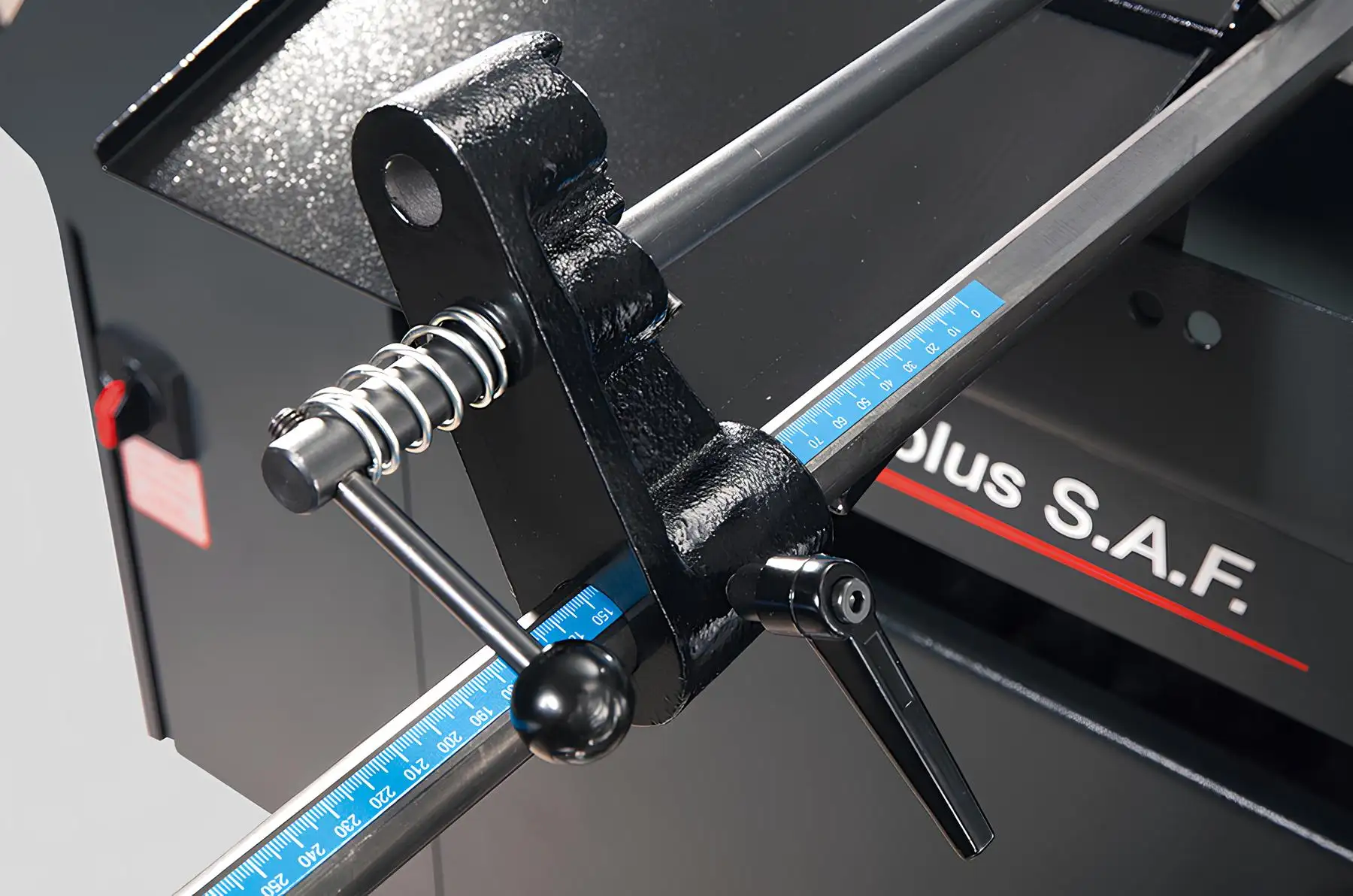

Workpiece stop – Standard equipment

Robust stop with a 500mm scale for setting the required length of the material to be cut.

Frequency converter – Standard equipment

Enables continuous blade speed regulation between 15–90 m/min. and thus setting the optimum cutting conditions for the given material.

Pressure device

Used to clamp the bundles of material to be cut. Ensures simple and reliable material clamping using vertical contact pressure.

Material chute KL

Continuously joins the vice behind the cut and allows for easy slide of cut pieces into a container when cutting larger series. The chute construction consisting of 2 parts prevents leakage of the coolant.

Halogen lamp LA

Provides good lighting of the workplace of the machine. An invaluable tool especially when the lighting at the workplace is insufficient.

Oil mist lubrication MM

Creates an oil mist that is sprayed onto the cutting edge. It replaces the use of a classic coolant, especially when cutting sections during which leakages may occur. Possibility of using organic oils.

Laser alignment LS

High-quality industrial laser projects the cutting line on the material to be cut. Makes the setting of the required material length simpler, faster and more accurate.

Cleaning brush KDM

Steel cleaning brush, driven by driving wheel. Used to remove chips from the saw band behind the cut.

Saw band tension indicator CD

Ensures accurate tensioning of the saw band to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw band is essential for its service life and cutting accuracy.

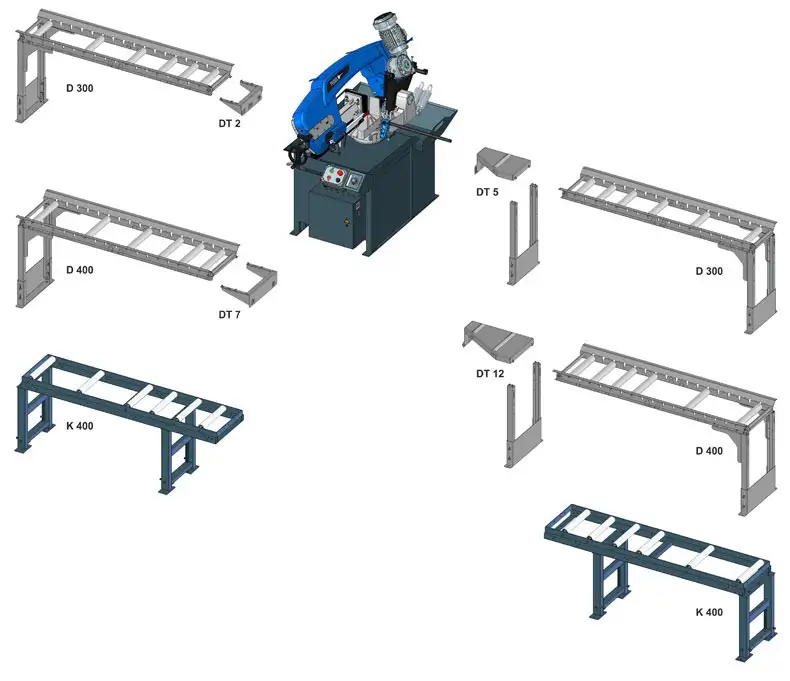

Conveyors
