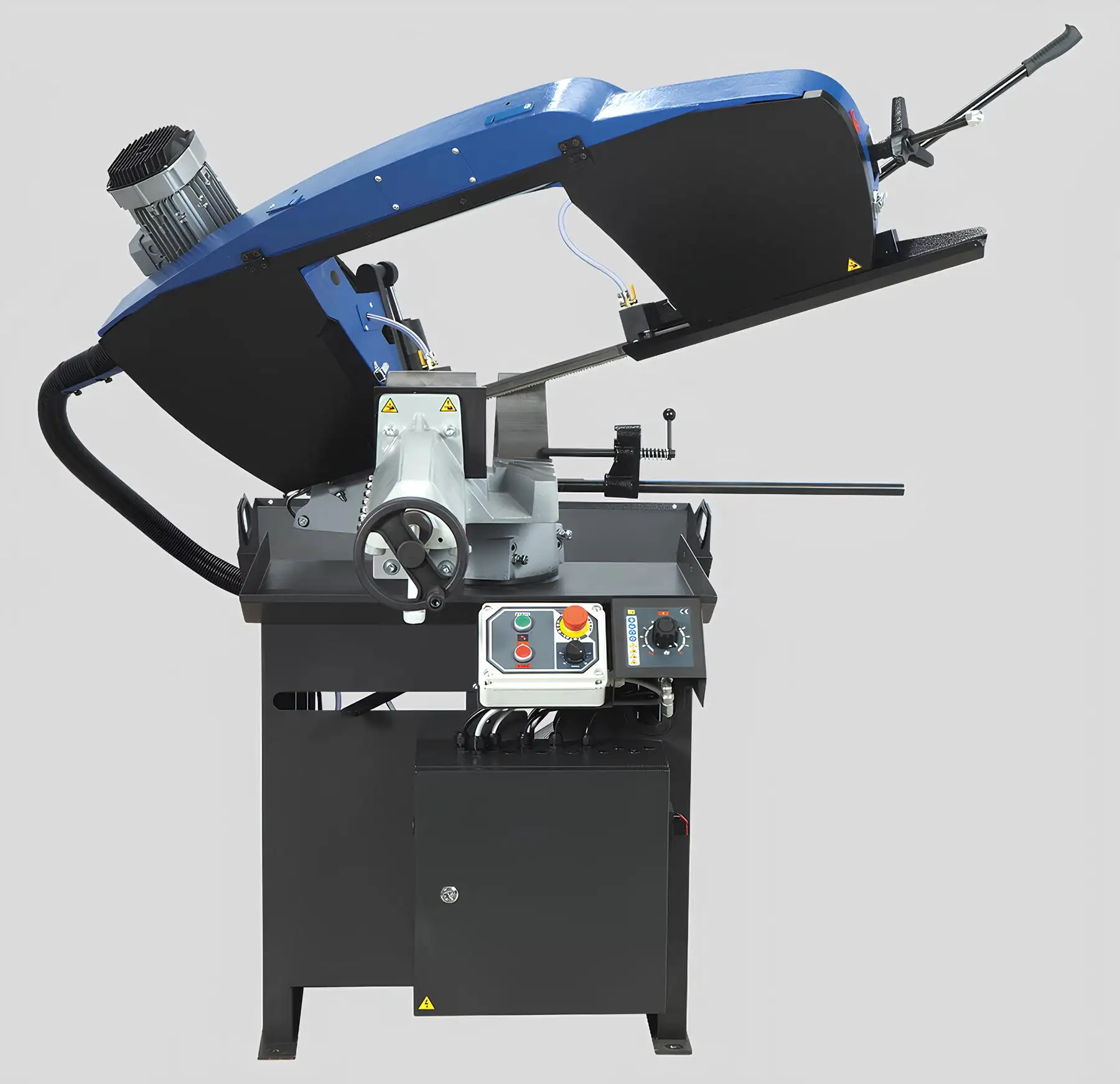

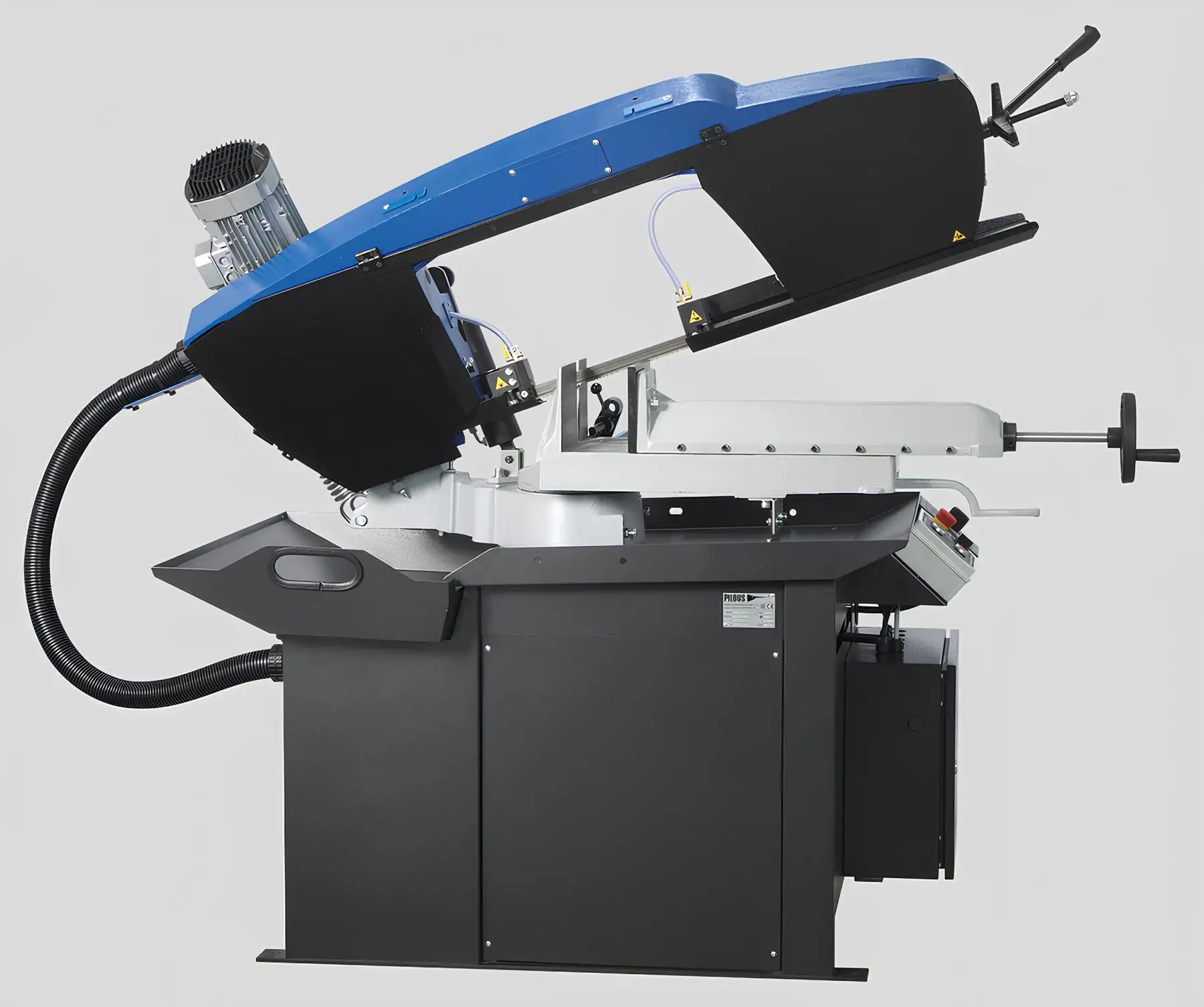

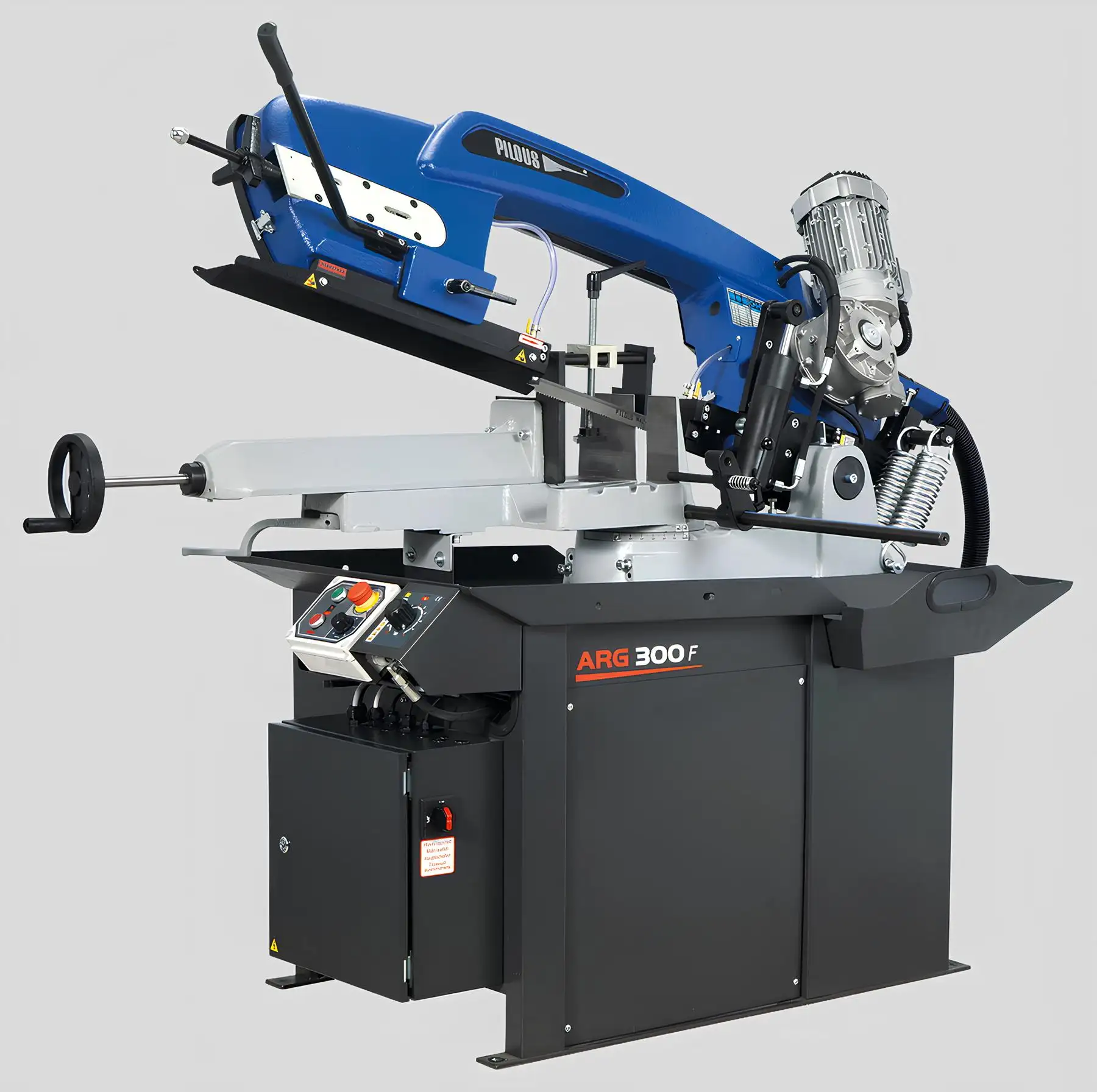

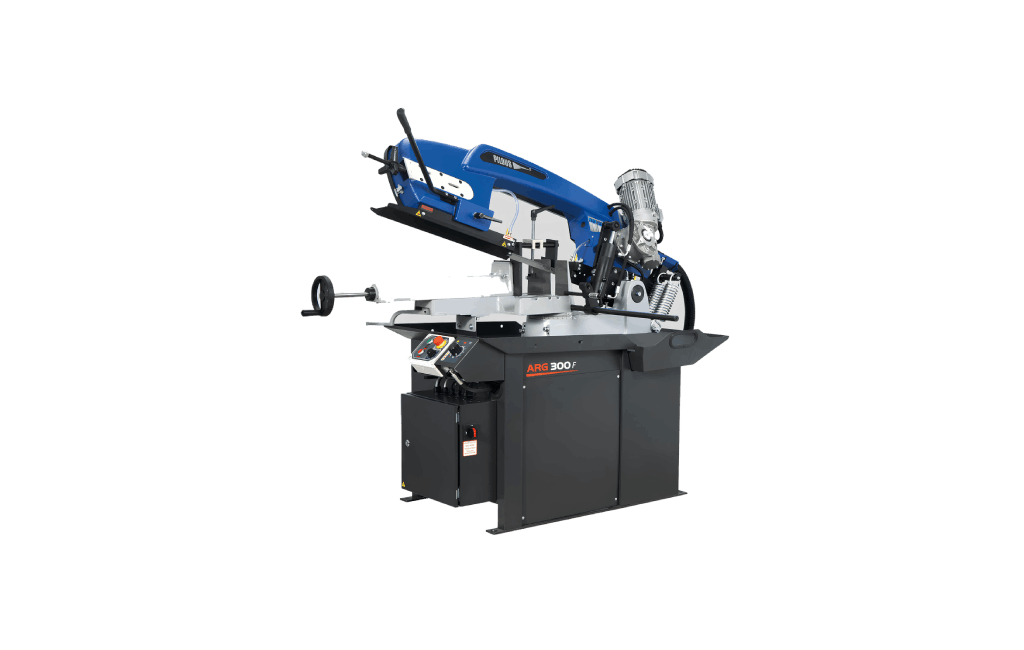

Manufactured by PILOUS, the ARG 300 F is the next-generation gravitation bandsaw developed from the legendary ARG 300 series. With a completely redesigned saw arm and upgraded structural concept, this model delivers enhanced rigidity, cutting precision and long-term durability for professional metalworking environments.

Designed for workshops and continuous production plants, the ARG 300 F combines mechanical simplicity with advanced engineering refinements that improve both performance and operator comfort.

Overview

The core innovation of the ARG 300 F lies in its newly engineered cast-iron arm. The arm forms a closed hollow section along its entire load-bearing length, ensuring exceptional stiffness and dimensional stability during cutting.

All electrical wiring and coolant distribution are integrated within the hollow arm structure, protecting them from mechanical damage and contamination.

Blade replacement and internal maintenance are simplified through a hinged rear arm cover that locks securely in the open position, allowing safe and fast access.

The gravitation cutting system remains mechanically straightforward:

• Feed into the cut is controlled by the weight of the arm
• Continuous regulation is achieved via an oil damper butterfly valve
• The blade drive switches off automatically after the cut

Manual arm uplift is supported by adjustable tension springs, allowing the operator to set optimal lifting force according to material weight and cutting conditions.

Key points

• Redesigned high-rigidity cast-iron arm with hollow closed section
• Protected internal wiring and coolant routing
• Manual gravitation feed with oil damper regulation
• Frequency-controlled blade speed (15–90 m/min)
• Manual arm uplift with adjustable tension springs

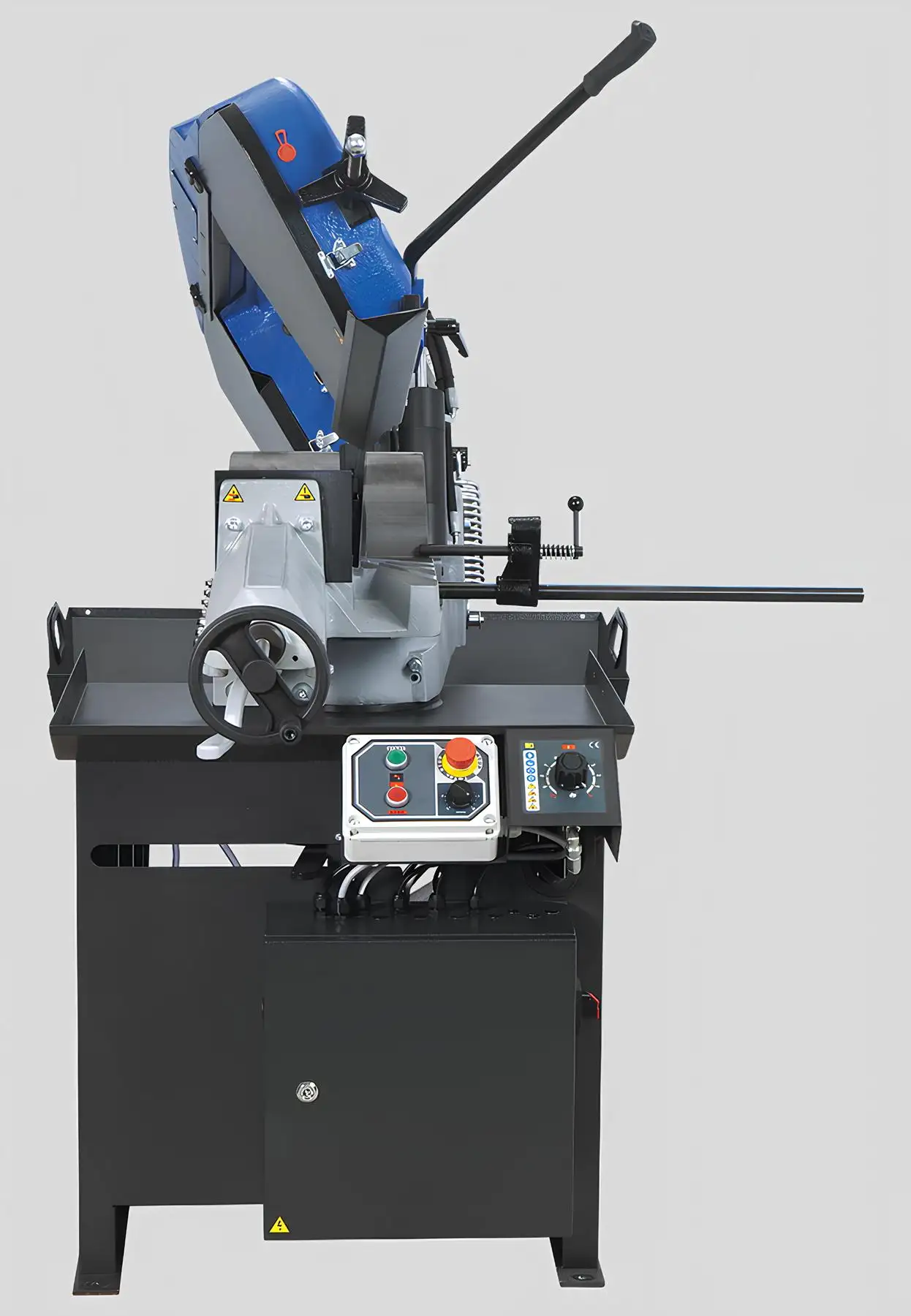

• Mitre cutting range 90°–60°

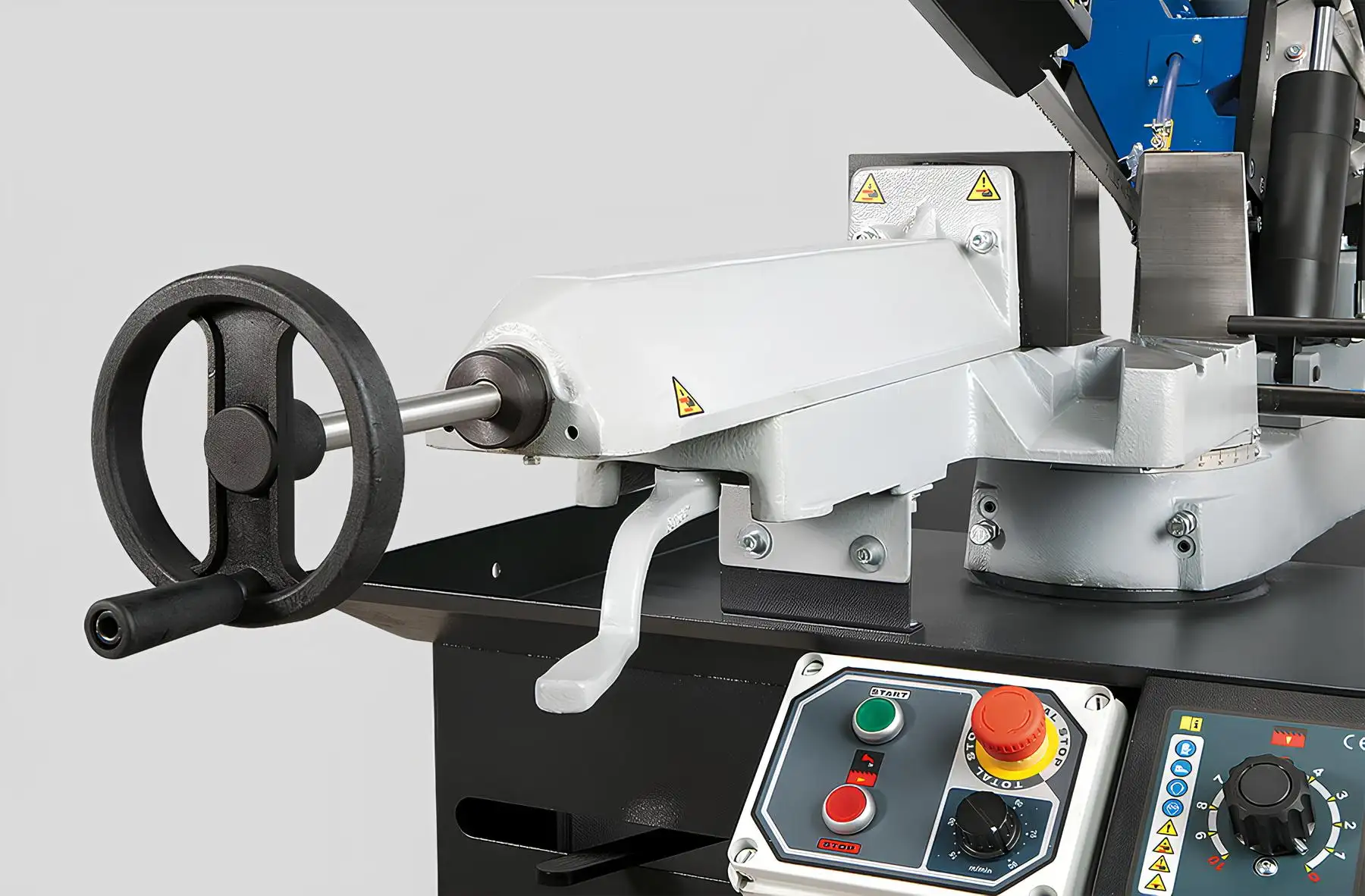

• Massive quick-clamping vice system
• Industrial blade size 27 × 0.9 mm
• Large removable chip container in ergonomic base
• Integrated cooling system with independent regulation
• 500 mm adjustable material stop included

The ARG 300 F enhances the gravitation category with modernized structural engineering.

Technical advantages

Structural rigidity and accuracy

The closed-section cast-iron arm dramatically increases stiffness at all load-bearing points. This results in:

• Maximum cutting accuracy
• Reduced vibration
• Improved blade tracking
• Extended blade service life

The massive framework composed of grey cast iron castings ensures consistent dimensional stability even under heavy workloads.

Optimized cutting performance

The integrated frequency converter allows continuous blade speed regulation between 15 and 90 m/min. This ensures optimal cutting parameters for:

• Carbon steel
• Stainless steel
• Tool steel
• Structural profiles
• Non-ferrous metals

Proper speed adjustment directly contributes to improved surface finish and reduced blade wear.

Mechanical reliability

The overdimensioned running wheel bearings, tensioning wheel system and rotary components are engineered for long service life.

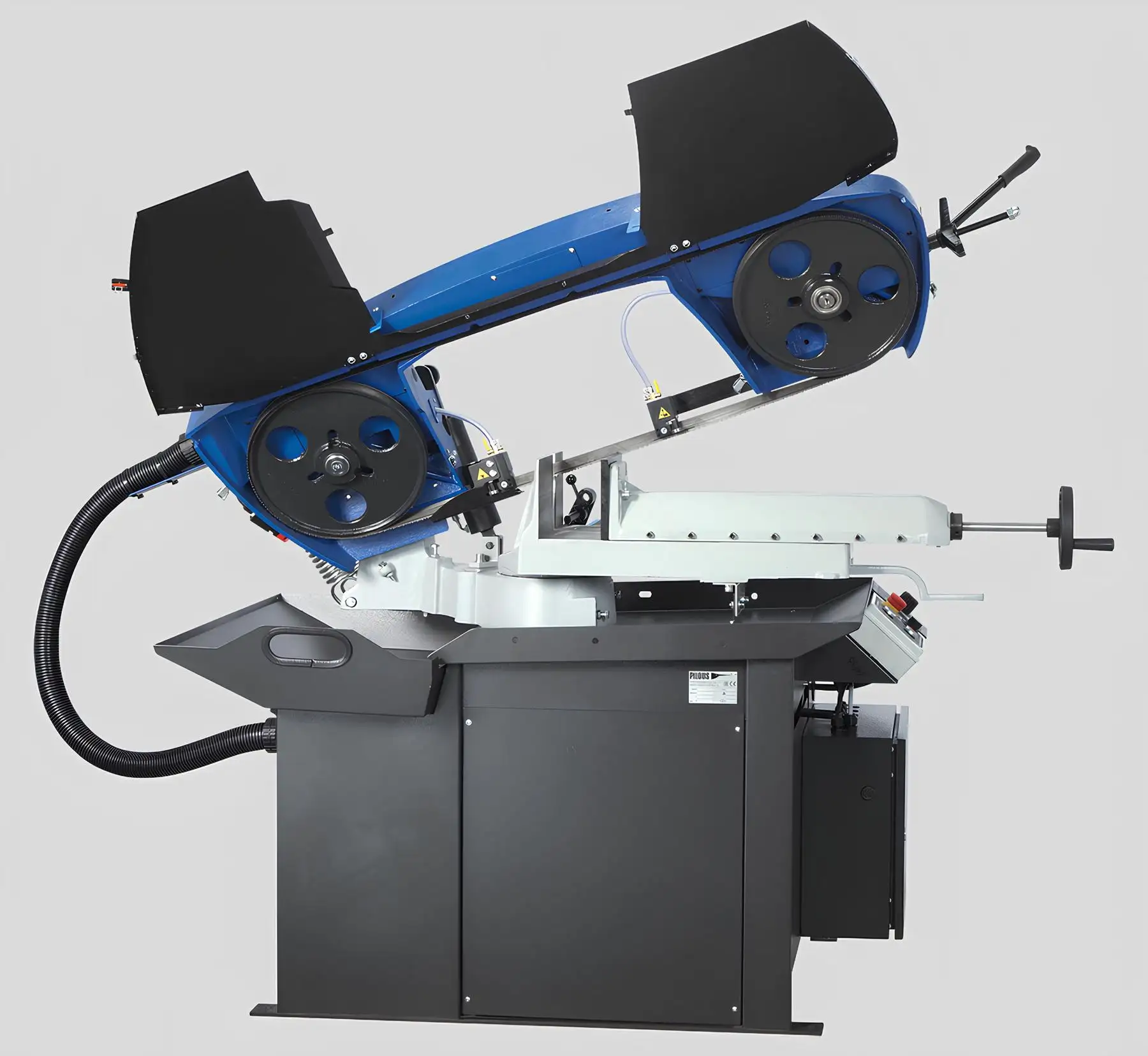

The large-diameter running wheels combined with three-side hardmetal blade guiding provide precise band control and extended operational durability.

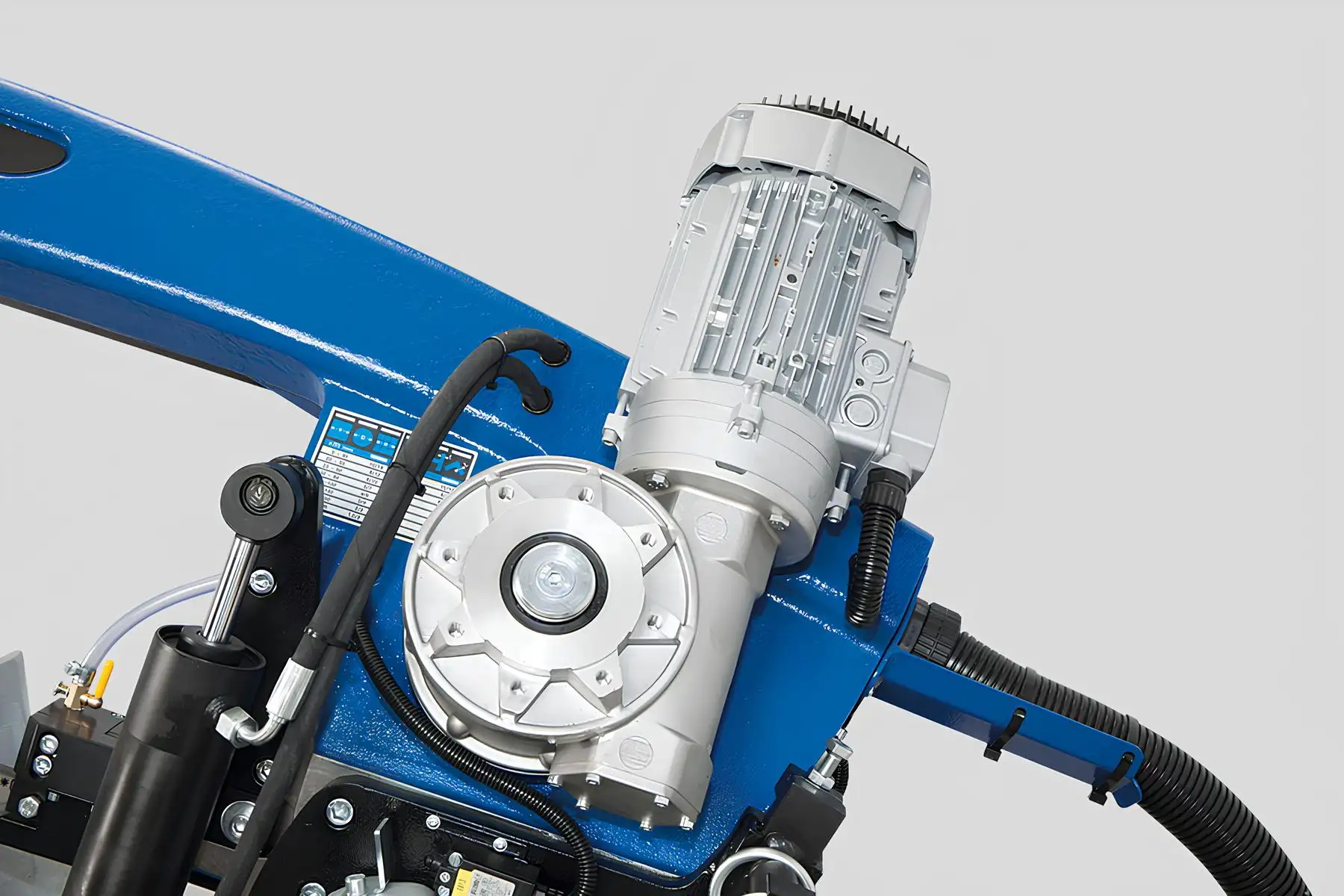

The blade drive system is powered by a maintenance-free industrial electric motor with worm gearbox, ensuring smooth and quiet operation.

Ergonomic and maintenance-friendly design

The ergonomic base integrates a large removable chip container for simplified cleaning.

The hinged rear cover of the arm allows quick blade replacement and internal access without complex disassembly.

Applications

The ARG 300 F is ideal for:

• Fabrication workshops
• Maintenance and repair departments
• Continuous production facilities
• Structural steel cutting
• Solid bar processing
• Stainless and tool steel applications

Its robust gravitation system makes it suitable for professional environments where reliability and structural stability are essential.

Why choose the ARG 300 F

If your operation requires:

• Increased structural rigidity
• Frequency-controlled cutting optimization
• Mechanical simplicity with modern engineering
• Long blade service life
• Stable performance under heavy loads

The ARG 300 F delivers a refined gravitation solution with enhanced durability and cutting precision.

Within ANATECO’s portfolio, this model positions as a high-capacity manual gravitation bandsaw for professional metalworking operations demanding structural excellence.

ACCESSORIES

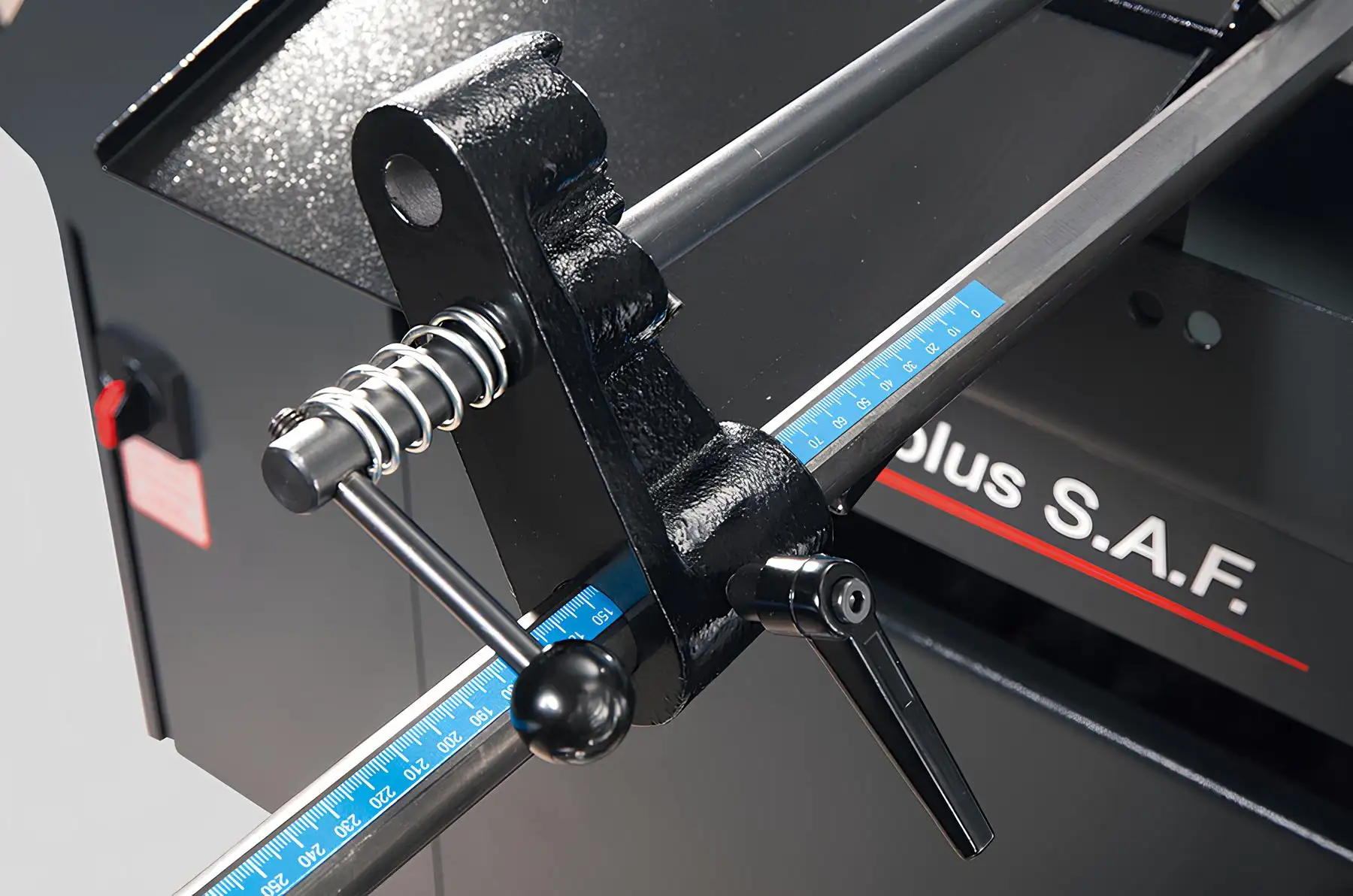

Workpiece stop – Standard equipment

Robust stop with a 500mm scale for setting the required length of the material to be cut.

Frequency converter – Standard equipment

Enables continuous blade speed regulation between 15–90 m/min. and thus setting the optimum cutting conditions for the given material.

Pressure device

Used to clamp the bundles of material to be cut. Ensures simple and reliable material clamping using a vertical contact pressure.

Material chute KL

Continuously joins the vice behind the cut and allows for easy slide of cut pieces into a container when cutting larger series. The chute construction consisting of 2 parts prevents leakage of the coolant.

Halogen lamp LA

Provides good lighting of the workplace of the machine. An invaluable tool especially when the lighting at the workplace is insufficient.

Oil mist lubrication MM

Creates an oil mist that is sprayed onto the cutting edge. It replaces the use of a classic coolant, especially when cutting sections during which leakages may occur. Possibility of using organic oils.

Laser alignment LS

High-quality industrial laser projects the cutting line on the material to be cut. Makes the setting of the required material length simpler, faster and more accurate.

Cleaning brush KDM

Steel cleaning brush, driven by driving wheel. Used to remove chips from the saw band behind the cut.

Saw band tension indicator CD

Ensures accurate tensioning of the saw band to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw band is essential for its service life and cutting accuracy.

Auto-start descent of the arm

In standard machines, the control valve of the arm descent has to be shut after the arm uplift and by the next arm descent, the descent speed has to be set again. In this version, the control valve is additionally fitted with an electro-hydraulic valve, which remains after the arm uplift in the set position. After saw blade start, it is automatically released and the arm descents into the cut at a set speed. Thus, setting of the descent speed for each cut falls off. This significantly eliminates operator error and thus protects the saw blades, and increases also productivity of the machine. An ideal help when cutting material in larger series.

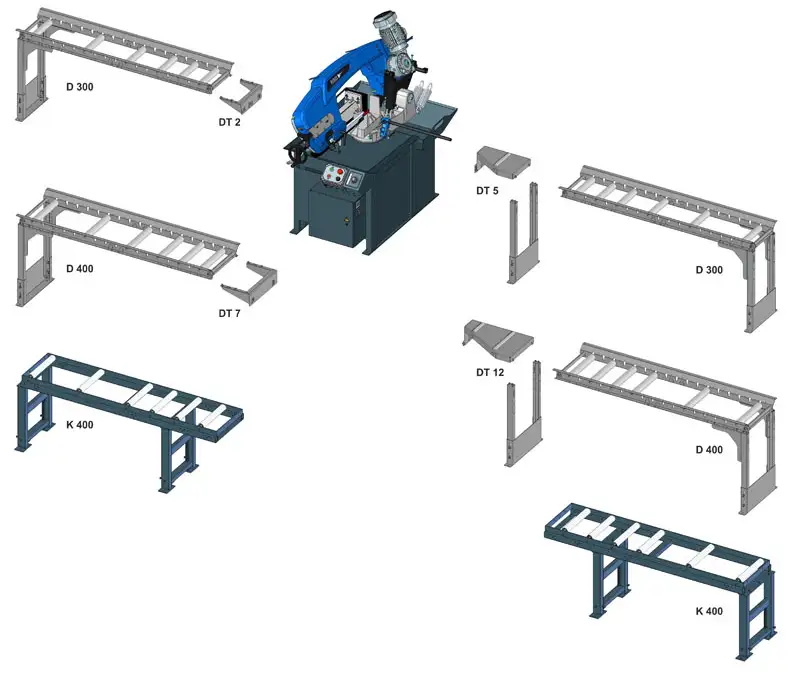

Conveyors
