Bandsaws

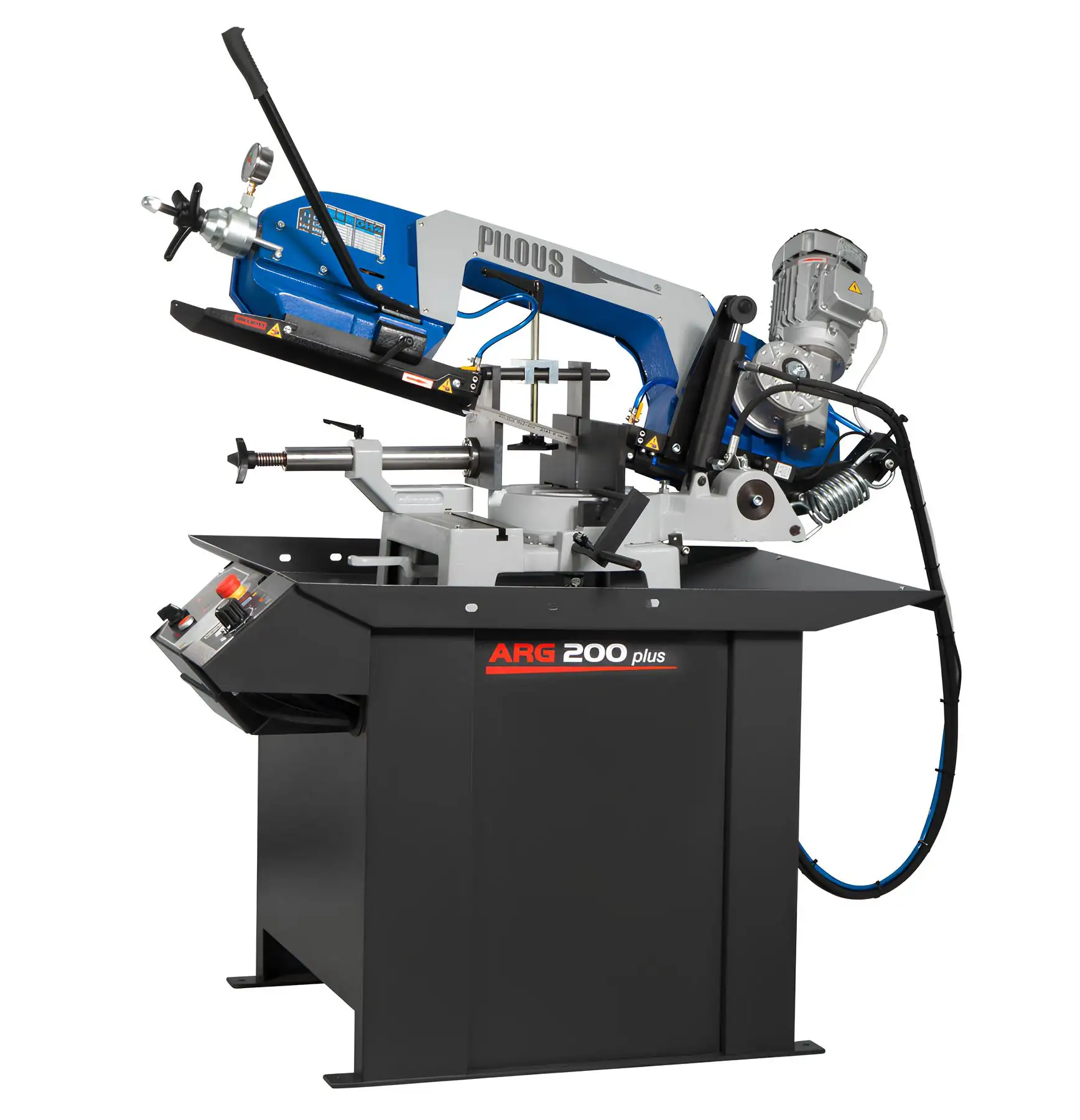

ARG 200 plus

Gravity-driven precision with uncompromising strength.

A universal bandsaw is appraised for general use in various workshops (work on locks, maintenance) and at plants with machinery. Band 20 x 0.9 mm allows for wide use when cutting sections and medium-sized full materials.

The bandsaw arm uplift is manual; the feed into cut is carried out by the weight of the arm, with the possibility of continuous regulation by the oil damper relief valve. When the cut is finished the bandsaw drive automatically switches off. To facilitate easy arm uplift the machine is equipped with adjustable tension springs that allow for setting of optimum force required for the arm uplift according to characteristics of the material to be cut.

Request a Quote
ARG-200-plus-main

more about the
ARG 200 plus

Vice system provides bilateral continuous setting of the cutting angle within the ranges 60° to the right and 45° to the left. The turntable rotates along with the saw band. Thanks to that the saw blade does not cut into the loading surface of the vice.

  • Robust machine framework composes of castings from grey cast iron and therefore ensures vibration absorption.
  • Modern concept of the bandsaw arm allows for large cutting ranges in upright and angular cuts.
  • Simple locking and adjusting of the desired cutting angle on the angle scale with stops fixed at 45°, 60° and 90°.
  • Massive quick-clamping vice ensures easy and reliable material clamping.
  • Maximum cutting accuracy and saw blade service life in this category of bandsaws.

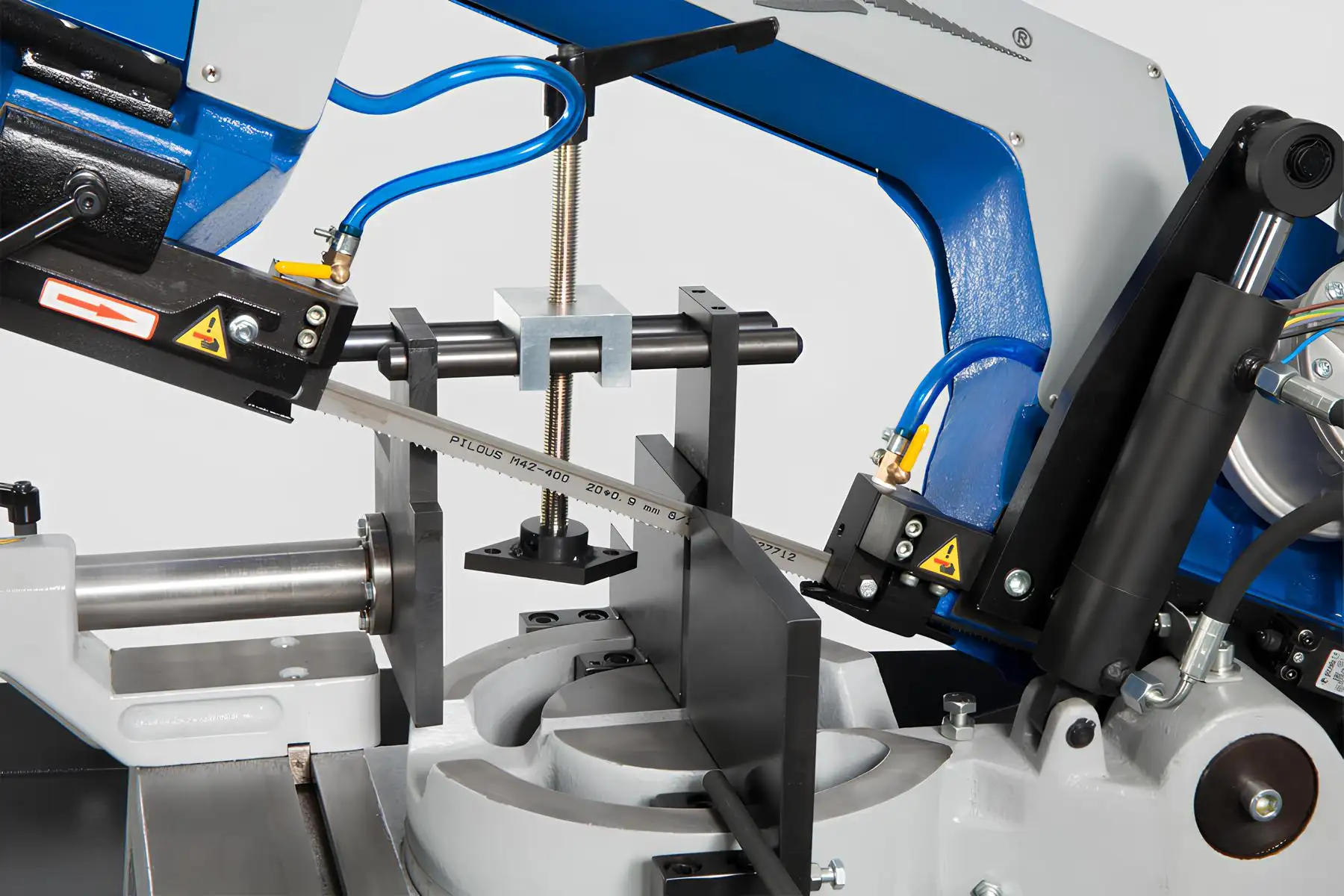

  • High-precision three-side hardmetal bandsaw guidance.
  • Overdesign of running wheel bearings, tensioning wheel system and all rotary parts ensures long service life of the machine.
  • Noiseless and maintenance-free blade drive is provided by an industrial electric motor with worm gearbox.
  • Three-phase two-speed motor (400 V) allows for the selection of blade speed between 40 and 80 m/min.
  • The machine is connected to a complete cooling system with a high-performance pump and possibility of regulating the flow on both guiding heads independently. Coolant tank with a pump is placed in the base of the machine.
  • Easy control by ergonomically placed controls (electrical and hydraulics) on the base of the machine.
  • The machine is equipped with a 250 mm workpiece stop.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Request a Quote

Technical Parameters

ARG 235 plus 90° -45° +45° +60°
● 200 135 155 95
■ 200 115 130 65
▬ 250 × 140 150 × 70 160 × 125 100 × 60

Main motor: 400 V, 50 Hz, 0,75/0,95 kW

Pump motor: 400 V, 50 Hz, 0,05 kW

Saw blade speed: 35/70 m/min.

Working height of vice: 900 mm

Coolant tank: cca 15 l

Machine dimensions: Dimension drawing

Machine weight: 245 kg
