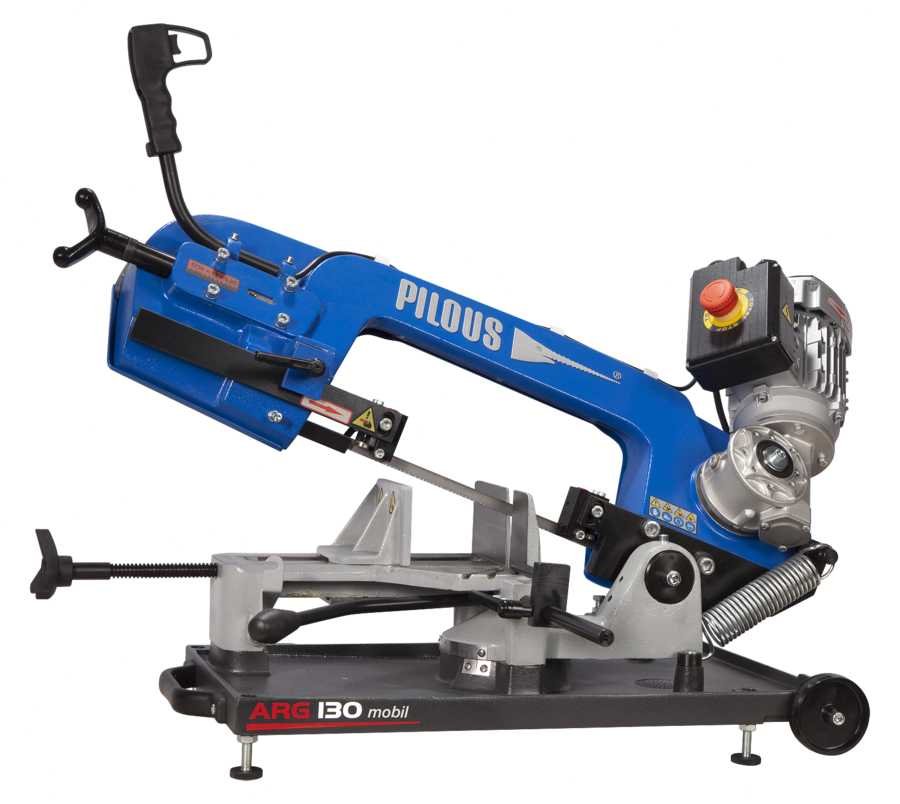

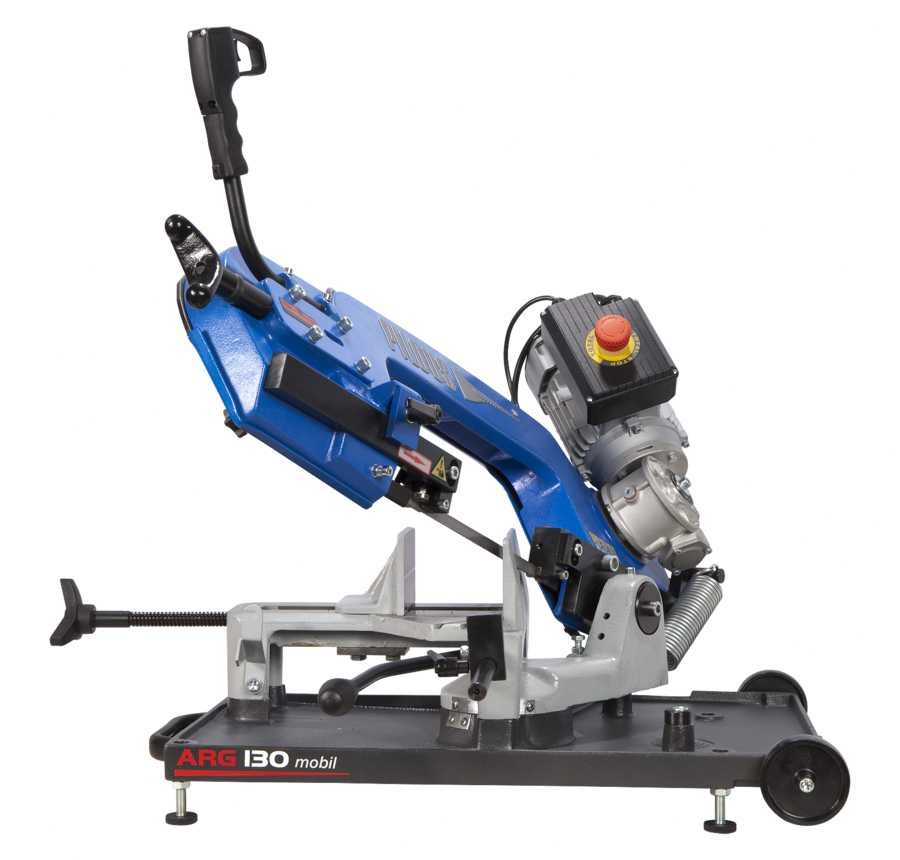

ARG 130 mobil

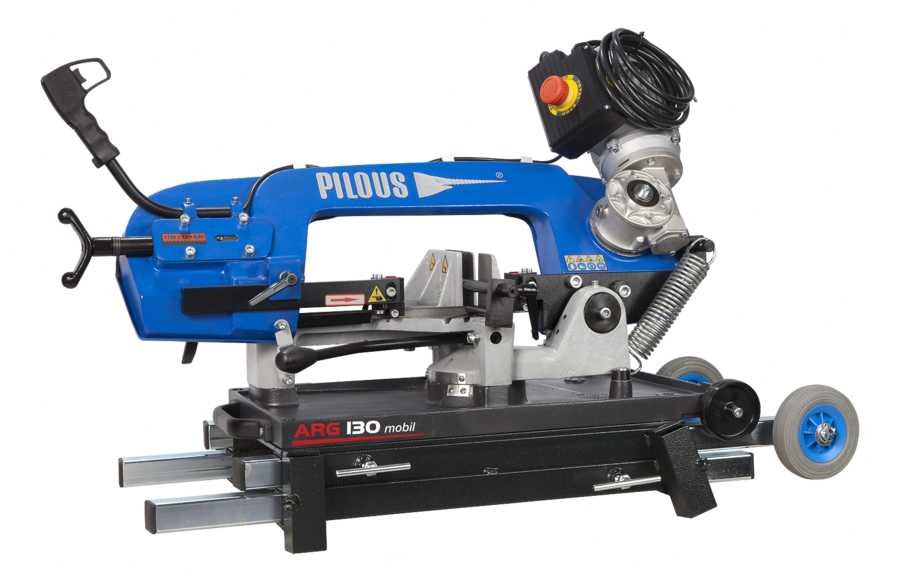

Lighter version of ARG 130, the ARG 130 mobil is designed for work on construction sites and installations. In order to minimize the total weight the arm, base plate and table are made of cast aluminium. To achieve the maximum service life the vice and wheels of the saw blade are made of grey cast iron. To allow for easy transport the machine is equipped with an arm lock in low position, travelling wheels and a handle. Saw blade feed into cut, arm uplift and material clamping are carried out manually.

• Modern concept of the bandsaw arm allows for large cutting ranges in upright and angular cuts.
• Continuous adjustment of the cutting angle within the range 90°–60° when the workpiece is clamped tight.
• Simple locking and adjusting of the desired cutting angle on the angle scale.
• Maximum cutting accuracy and saw blade service life in this category of bandsaws.
• High-precision three-side hardmetal bandsaw guidance.
• Manufactured bearing of running wheels, tensioning wheel system and all rotary parts are the same as in big professional machines.
• Professional, noiseless and maintenance-free band drive is provided by an industrial electric motor with worm gearbox.
• Single-phase, single-speed 230 V motor.
• The machine is equipped with a 250 mm workpiece stop.

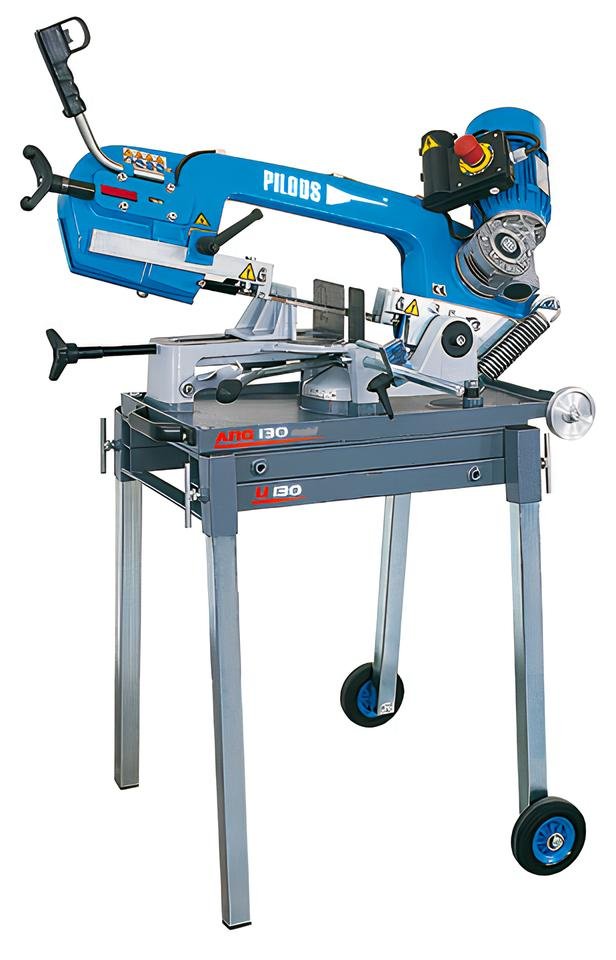

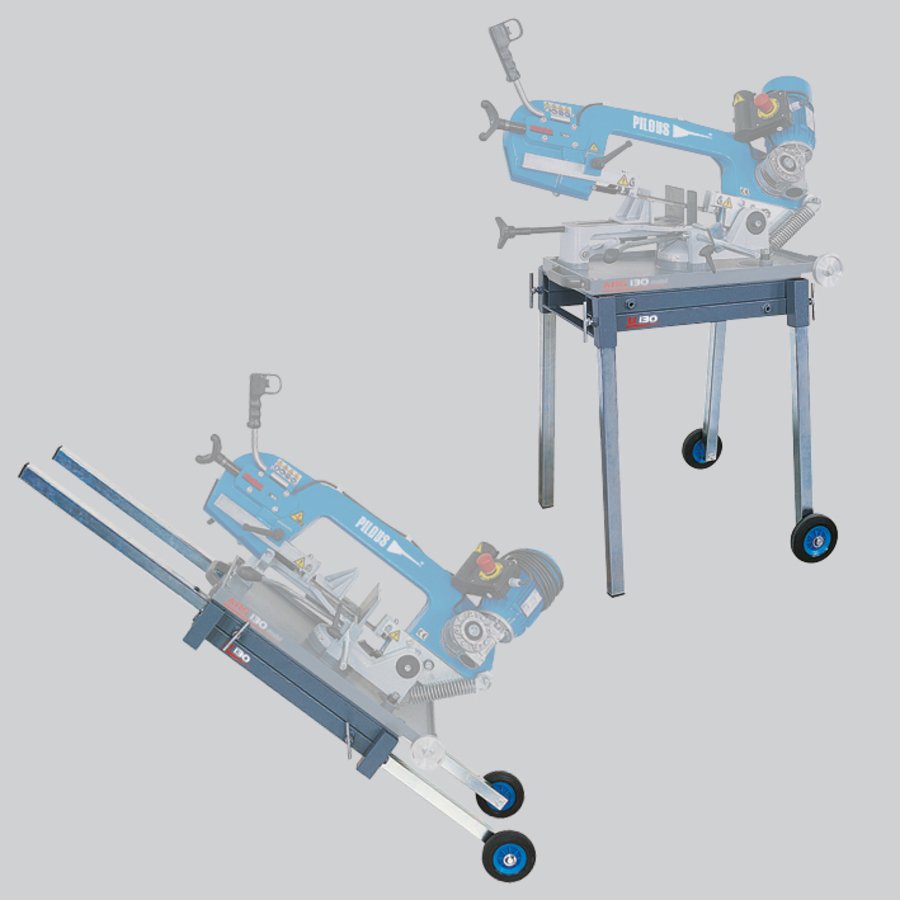

Folding base U 130

Allows for machine installation at ergonomic height. Travelling wheels facilitate machine transport on the base both in its folded and unfolded positions.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
