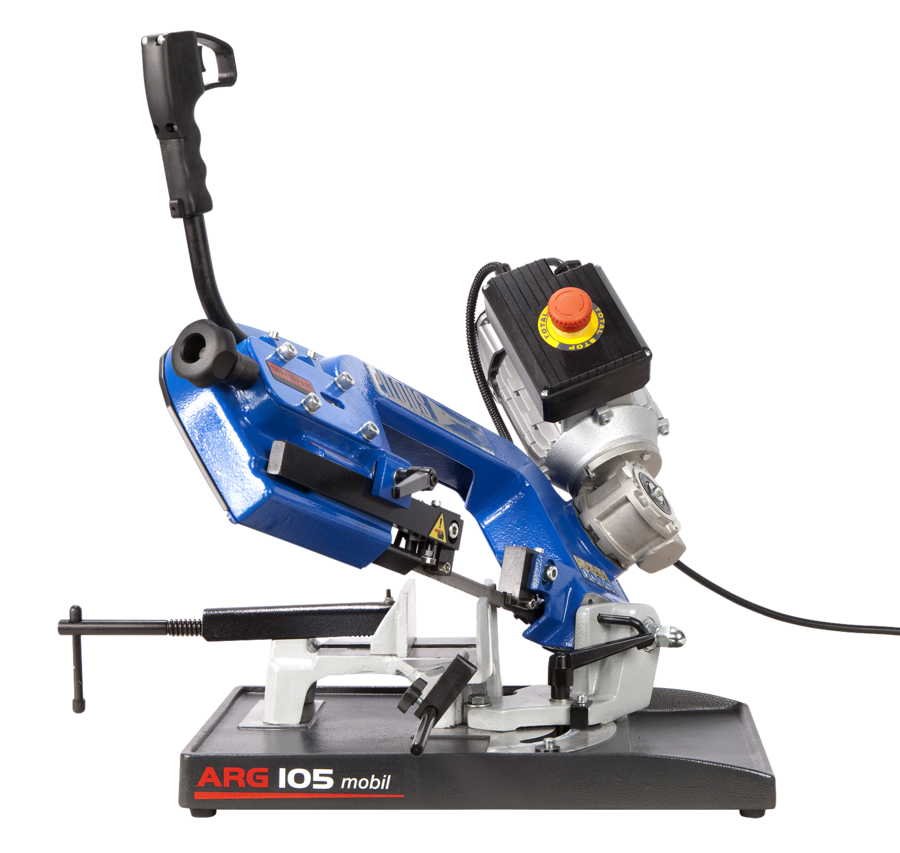

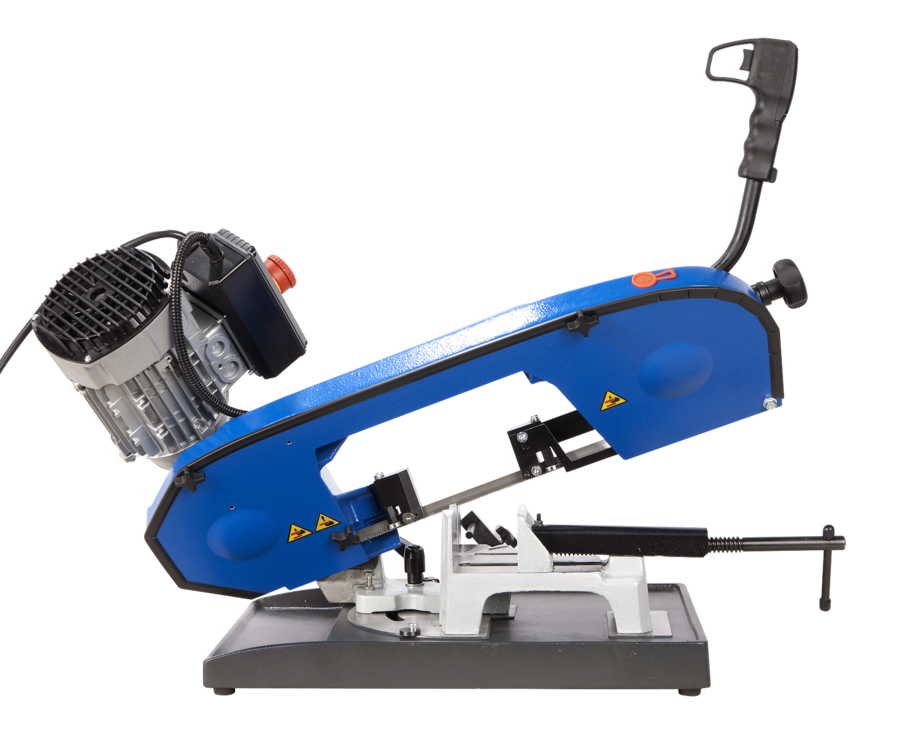

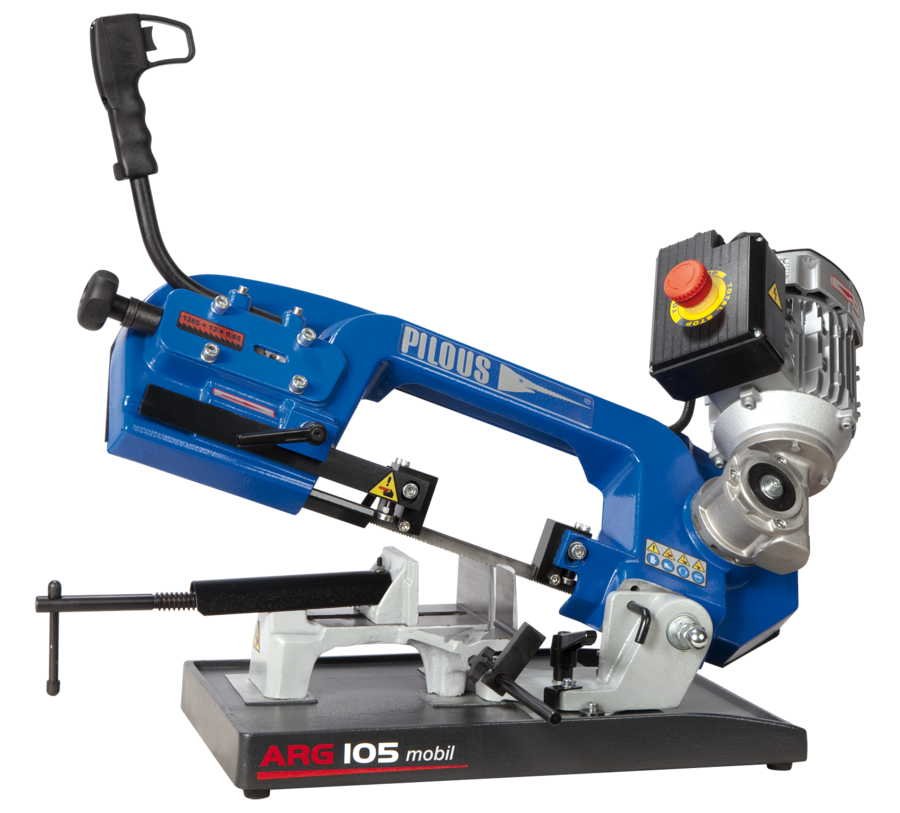

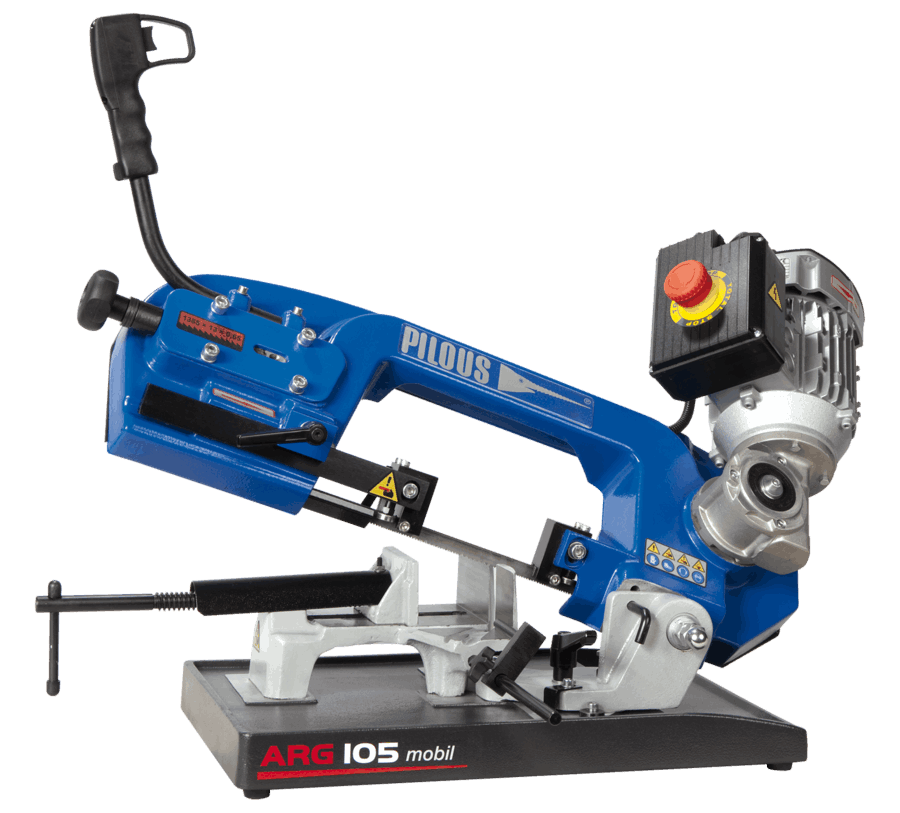

The Pilous ARG 105 Mobil is a lightweight, portable bandsaw engineered for construction sites, installation work, and small workshops. Its aluminium arm, base plate, and table significantly reduce overall weight, while critical wear components such as the vice and blade wheels are manufactured from grey cast iron for durability and long service life.
Manual control of blade feed, arm lift, and material clamping ensures reliability and simplicity in demanding environments. The modern arm design allows a wide cutting range, including precise upright and angular cuts from 90° to 60°, with easy angle adjustment and secure locking. High-precision hardmetal blade guidance, industrial-grade bearings, and a maintenance-free worm gearbox drive system deliver excellent cutting accuracy, quiet operation, and extended blade life. Supplied with a 200 mm workpiece stop, the ARG 105 Mobil is a robust and accurate solution in its class.
Bi-metal blade
Consists of bearing band from special steel on which a layer of HSS material is welded into where the teeth are milled.
Constant toothing
The distance of the teeth are always the same.
Variable toothing
The distance of teeth vary and is periodically repeated. This results in a greater cutting range, ability to further eliminate vibrations caused by the impact of the tooth blade on material, longer service life of the blade.
M42
Universal blade recommended for a wide palette of material, including tool steels and stainless steel up to hardness 45 HRC. Teeth are made from steel HSS-M42 containing cobalt.
M51
Blade for tool and stainless steel with hardness up to 50 HRC. Tooth tips are made from steel HSS-M42 containing cobalt and wolfram.
Carbide
Consists of bearing band from special steel into which the teeth are milled on which especially grinded carbide plates are welded. The carbide mounted blade is recommended for cutting surface hardened materials, chrome parts, forged pieces and materials with external tenacity and hardness up to 62 HRC.
Cutting range
For optimal output of the blade, the correct selection of the size of the blade tooth is important depending on the size of the divided material.

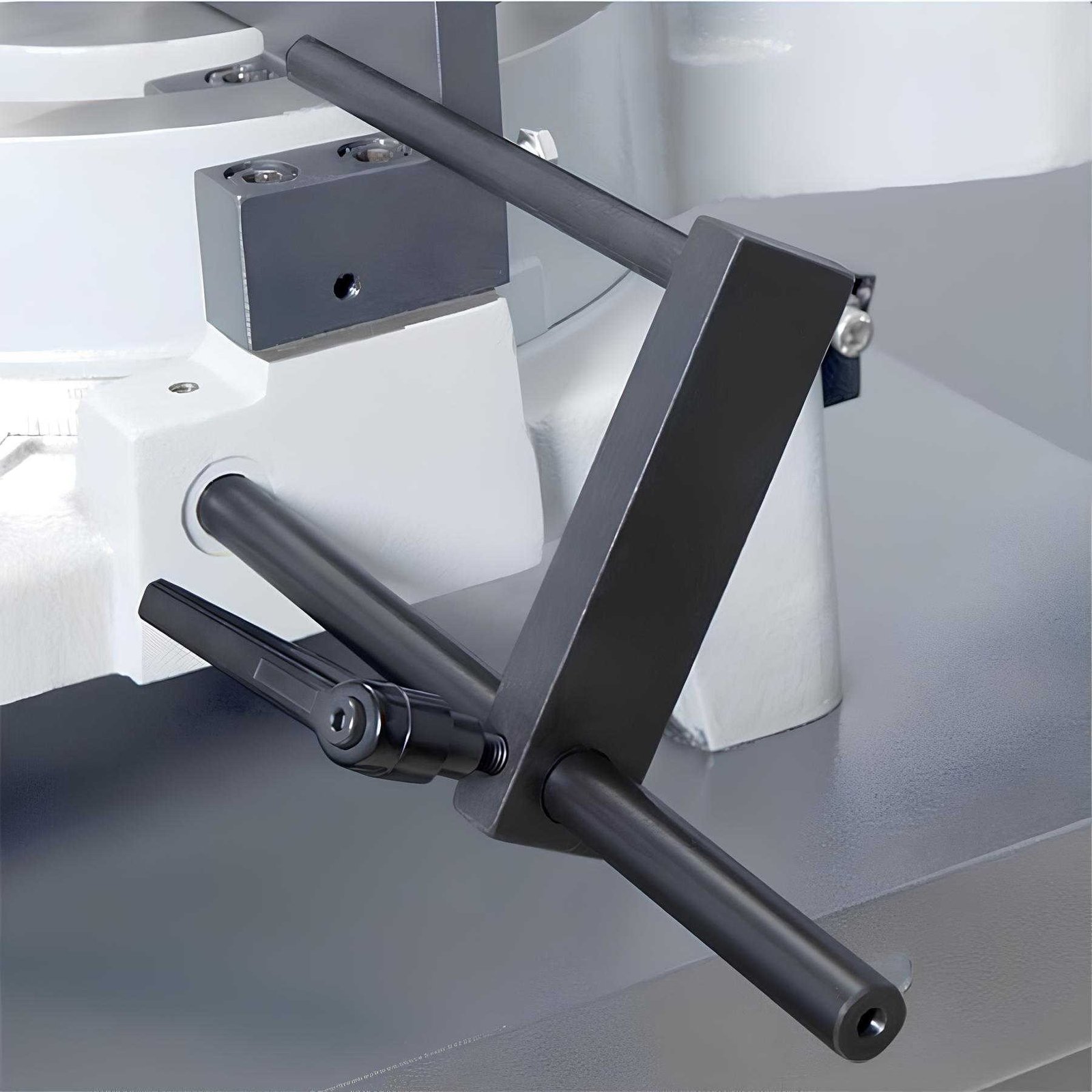

Workpiece stop – Standard equipment
Simple stop for setting the required length of the material to be cut.
Small portable bandsaw designed for construction sites, installations and workshop production. In order to minimize the total weight the arm, base plate and table are made of cast aluminium. To achieve the maximum service life the vice and wheels of the saw blade are made of grey cast iron. Saw blade feed into cut, arm uplift and material clamping are carried out manually.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
| ARG 105 Mobil | 90° | +45° | +60° |
|---|---|---|---|
| ● | 105 | 70 | 40 |
| ■ | 105 | 65 | 40 |
| ▬ | 105 × 110 | 65 × 85 | 40 × 45 |
Main motor: 230 V, 50 Hz, 0,55 kW
Saw blade speed: 55 m/min.
Machine dimensions: Dimension drawing
Machine weight: 29 kg
ARG 105 Mobil
