- 210 2824050-1

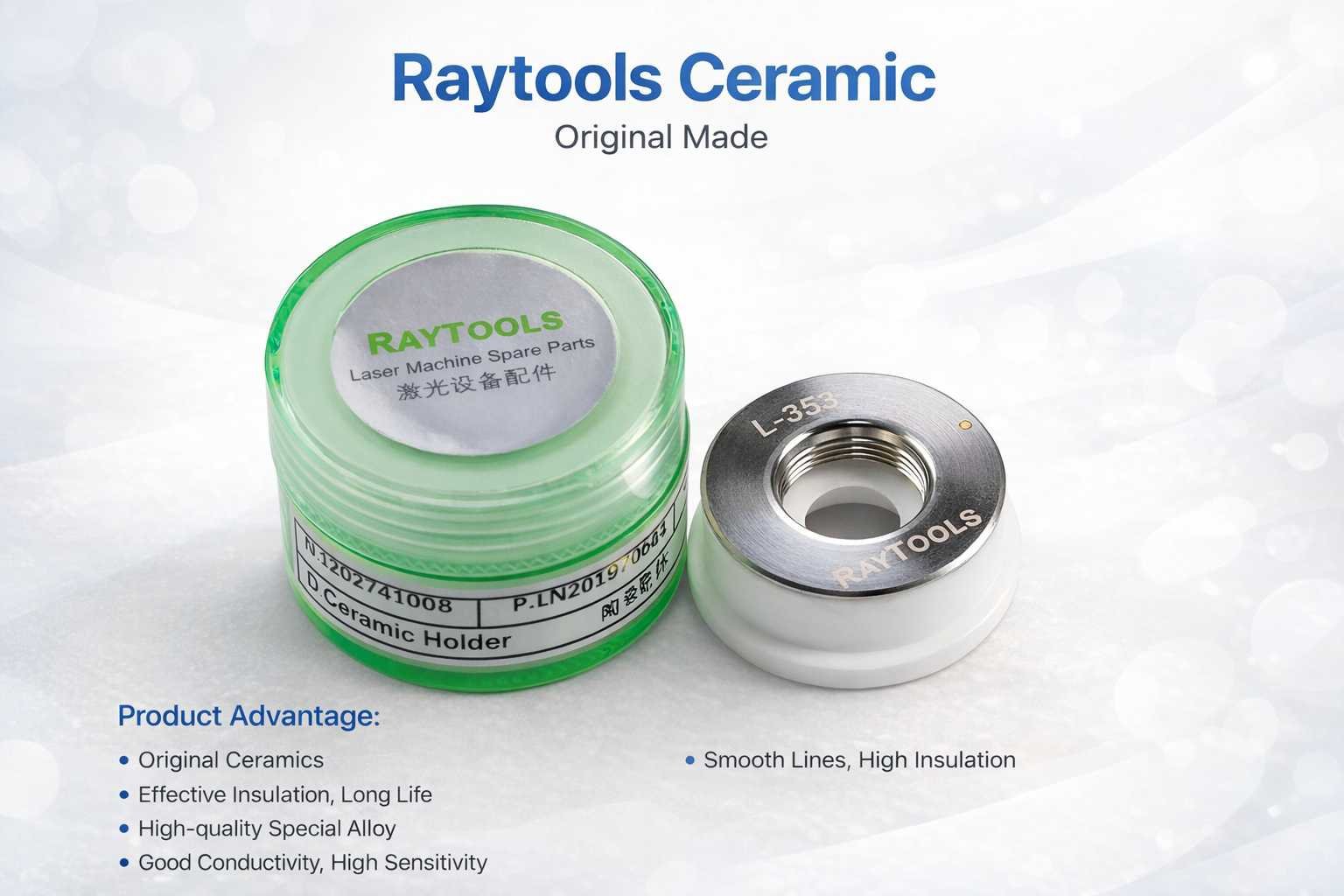

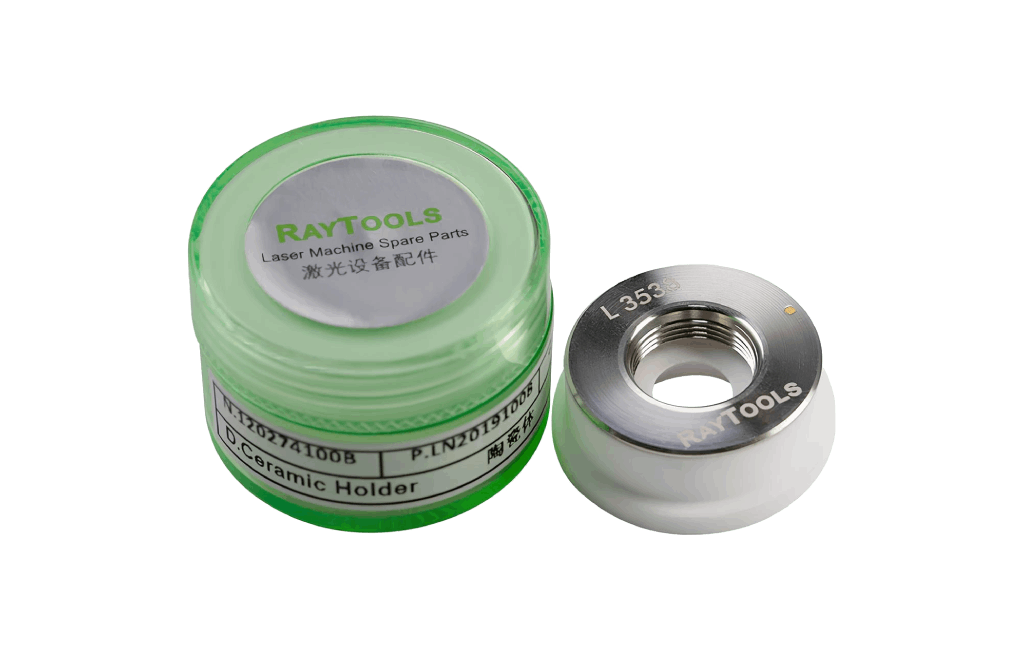

Original RayTools ceramic insulators Ø32 / Ø28.5 mm, engineered for precise signal transmission, reliable insulation, and long service life in RayTools laser cutting heads.
The RayTools Laser Cutting Ceramics Ø32 / Ø28.5 mm are precision-engineered consumables designed to meet the demanding requirements of modern fiber laser cutting systems. Manufactured to original RayTools specifications, these ceramics ensure stable electrical insulation, consistent signal transmission, and reliable performance under high thermal loads.
Produced from a high-grade special alloy, the ceramic body delivers excellent conductivity and rapid response sensitivity, supporting accurate height sensing and stable cutting conditions. The refined surface geometry and smooth contouring contribute to optimal gas flow and reduced wear on the cutting head, extending both ceramic and nozzle service life.
These ceramics are purpose-built for seamless compatibility with RayTools cutting heads, including BT240, BMH109, BMH110, BMH111, BMH114, and related models. Their robust construction and dimensional accuracy make them an essential component for maintaining cut quality, process stability, and operational efficiency in professional laser cutting environments.

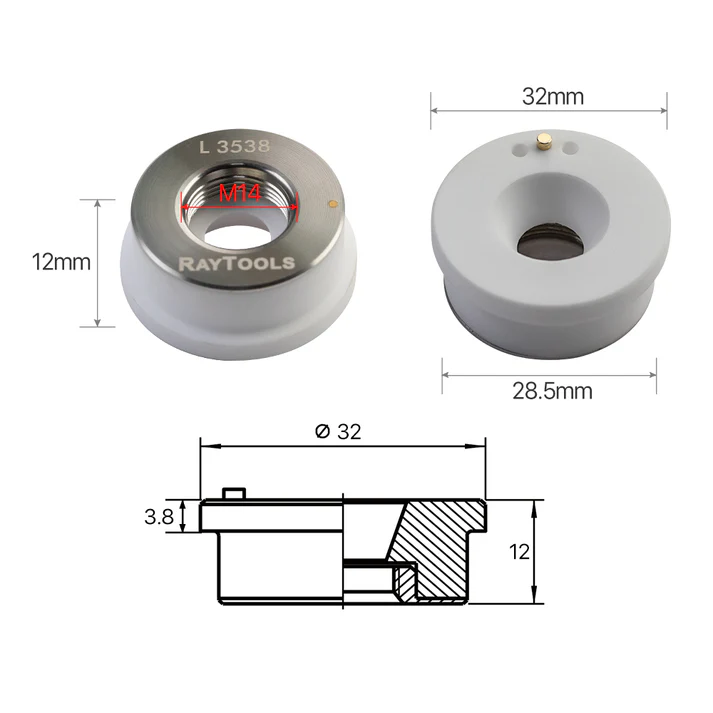

Original RayTools – Ø32 / Ø28.5 mm
| parameter | specification |
| product type | Laser cutting ceramic insulator |
| brand / specification | Original RayTools |
| outer diameter | Ø32 mm |
| inner diameter | Ø28.5 mm |
| material | High-quality special alloy ceramic |
| function | Electrical insulation & signal transmission |
| electrical conductivity | Excellent |
| response sensitivity | High (for accurate height sensing) |
| thermal resistance | Suitable for high-temperature fiber laser cutting environments |
| surface finish | Smooth contour design |
| gas flow optimisation | Yes |
| wear reduction | Yes – reduces wear on cutting head and nozzle |
| durability | Long service life under continuous industrial operation |
| manufacturing standard | Original RayTools specification |
Compatibility table – supported cutting heads
| cutting head model | compatibility |
| RayTools BT240 | Fully compatible |
| RayTools BMH109 | Fully compatible |
| RayTools BMH110 | Fully compatible |
| RayTools BMH111 | Fully compatible |
| RayTools BMH114 | Fully compatible |
| other RayTools models | Compatible where Ø32 / Ø28.5 mm ceramic is specified |
Functional performance characteristics
| characteristic | performance description |
| electrical insulation | Stable and reliable under continuous operation |
| signal transmission | Consistent and accurate |
| height sensing support | High sensitivity enables precise torch height control |
| thermal load handling | Designed for demanding laser cutting conditions |
| process stability | Supports stable cutting conditions |
| maintenance impact | Extends ceramic and nozzle service life |
Physical & design characteristics
| feature | description |
| body geometry | Precision-engineered |
| surface lines | Smooth lines / refined contouring |
| installation fit | Seamless fit in RayTools cutting heads |
| operational efficiency | High, due to stable electrical and thermal behaviour |
Positioning note (for B2B product listings)
These parameters position the ceramic as a core consumable for professional fiber laser cutting systems, optimised for signal integrity, thermal stability, and lifecycle efficiency—exactly what industrial buyers and maintenance engineers expect to see in a technical datasheet.
