BM111 Auto Focus Laser Cutting Head consumables

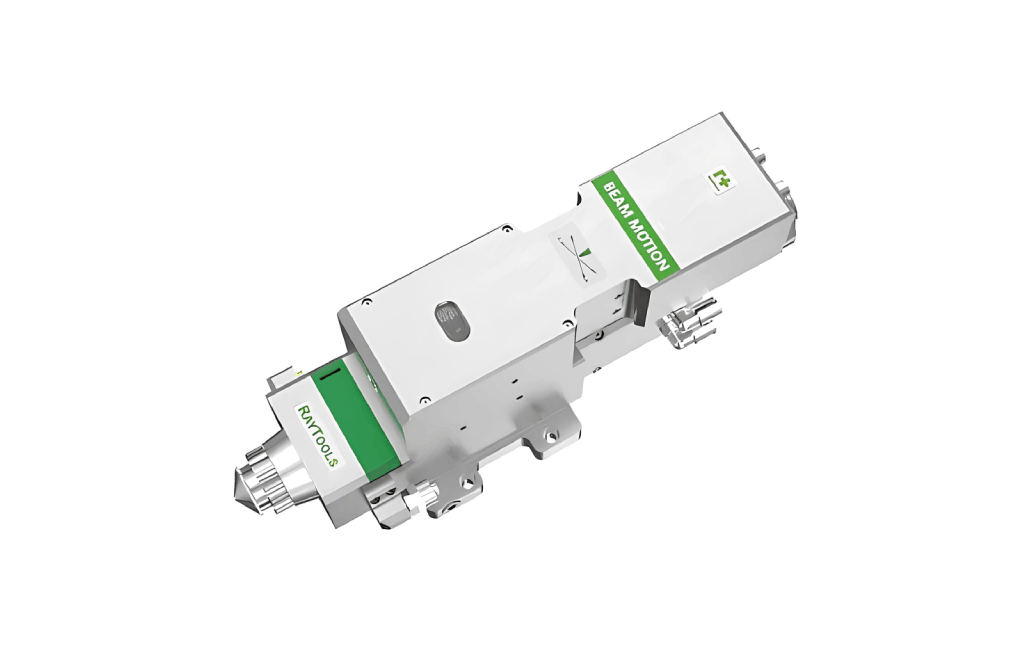

The RayTools BM111 – 3D Auto Focus Tube Cutting Head is engineered for tube and profile cutting up to 3.3 kW, combining automatic focus control, modular serviceability and high-level environmental protection. For customers running tube production, performance stability is determined less by the head itself and more by the condition of its consumables and optical protection stack.

This page is dedicated to the BM111 consumables range listed in the table, enabling operators and maintenance teams to keep cut quality consistent, protect the internal optics, and minimise downtime in tube-cutting operations where access and service windows are limited.

Nozzles and nozzle holder (gas delivery + cut stability)

BM111 uses an M14 nozzle holder with single and double conical nozzles. In tube cutting, nozzle selection is not cosmetic — it directly affects assist-gas flow behaviour around curved surfaces, kerf evacuation and edge quality.

• Single nozzles support clean general cutting where controlled, stable gas flow is required.
• Double nozzles (chrome-plated) are typically chosen for more demanding conditions where improved gas shielding and process stability are required.

Because BM111 is built around a skinny nozzle structure (reduced interference), the nozzle/housing geometry and correct consumable fit become especially important to avoid collisions and maintain consistent cutting results around tight profiles and tube features.

Protective windows (cover glasses) and seal rings (optical chamber protection)

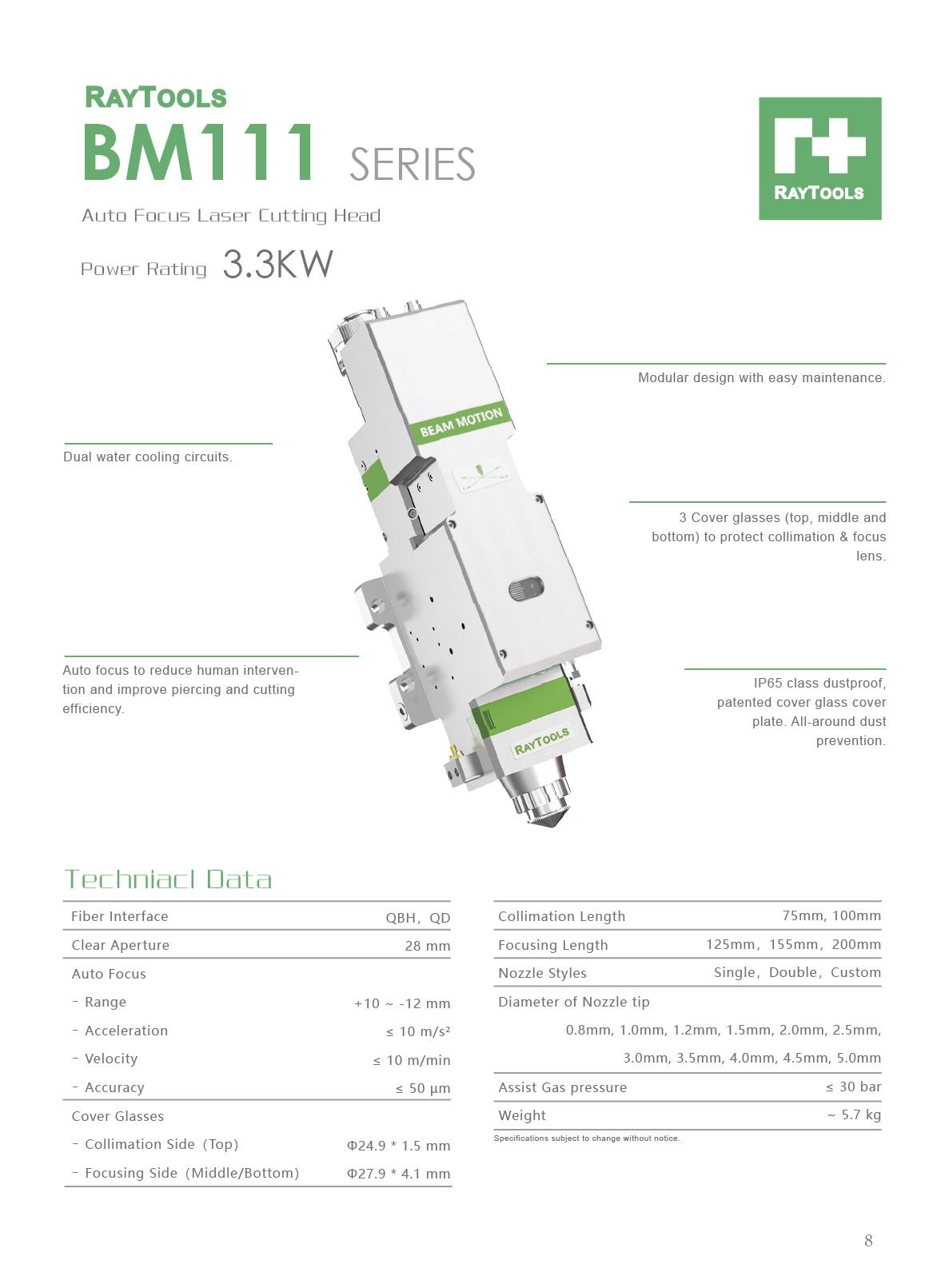

The BM111 architecture uses three cover glasses (top / middle / bottom) to protect the collimation and focus lens train. These protective windows are the first barrier against spatter, fumes and contamination generated during cutting.

Regular replacement of protective windows prevents:

• beam scattering and power loss
• inconsistent piercing
• lens overheating
• premature damage to high-value optics

The cover glasses are supported by seal rings, which are not optional parts. Seal integrity is a functional requirement because it preserves the internal chamber protection and supports the BM111’s IP65 dust protection concept. A worn seal ring can allow contamination into the optical path even when the cover glass appears intact.

Optical lenses (collimation + focus) for 1064 nm fiber systems

The BM111 consumables list includes precision collimation and focus lenses in fused silica, designed for fiber wavelength operation (1064 nm). Lens condition governs beam formation, focusing behaviour and thermal stability — particularly relevant in tube cutting where motion is continuous and angles vary.

Available lens options include:

• collimation lenses (meniscus / biconvex)
• focus lenses (meniscus / biconvex)
• multiple focus configurations to match production needs

Replacing damaged or contaminated lenses restores cutting consistency and protects the cutting head from cascading failures caused by poor beam quality.

Lens assembly kits (fast service, reduced installation errors)

Lens assembly kits combine supports with matched lens sets to simplify maintenance and reduce assembly mistakes under workshop time pressure. They are especially useful when:

• production cannot stop for long maintenance cycles
• service teams need predictable, repeatable rebuild procedures
• optics are replaced as a scheduled preventive measure rather than after failure

Capacitive head sensor (height sensing + process control)

Tube cutting depends heavily on accurate height tracking and stable standoff control. The BM111 consumables include the TRA capacity head sensor, which supports the system’s distance control logic and contributes to stable cutting performance across changing tube geometry.

A degraded sensor can result in:

• unstable height control
• inconsistent edge quality
• increased collision risk
• unnecessary consumable wear

Locking nuts and service tools (mechanical stability + correct maintenance)

Mechanical fit and optical alignment depend on correct locking and safe servicing. The BM111 consumables set includes:

• locking nuts for secure optical/mechanical retention
• a dedicated lens change tool to support correct maintenance procedures and reduce the risk of lens damage during replacement

These items are small, but they directly influence reliability and service quality, particularly in environments where maintenance is performed under time constraints.

Why original BM111 consumables matter

For a 3.3 kW auto focus tube cutting head, consumables are functional system components. Using specification-matched parts supports:

• consistent cut quality and piercing stability
• maximum protection of collimation/focus optics
• stable assist-gas behaviour
• reduced unplanned downtime
• predictable maintenance cycles in production
